This liquid filling line is consist of 10 heads filling machine, stopper pressing and cap screwing machine, it can finish liquid filling, stopper pressing, cap screwing at the same time. It can also connect with automatic labeling machine and bottle turntable machine to save working labor.

10 Heads Filling Machine

Machine Model: ZS-VTMP80C10
Voltage: 110/220V 50-60hz
Filling Pump: 316 Stainless Steel Magnetic Pump
Max Flow Rate: 6 L/min
Working Capacity: About 20-40 BPM( Based on Filling Material and Filling Volume)
Filling Accuracy: ≤±1% ( Based on Filling Material and Filling Volume)
Size of Air Compressor Connector: OD 8 MM
Package Size: About 1960*720*1730 MM
Package Weight: About 250 KG

Pressing Capping Machine With Vibratory Bowl Sorter

Machine Model: ZS-XG16X
Voltage: 110/220V 50-60hz
Working Voltage: 220V/110V 50- 60HZ
Bottle Height: 30-300 MM
Cap Diameter: 18-70 MM
Bottle Diameter: 20-160 MM
Working Speed: 10-25 Bottles/min(Depending on Cap Size and Shape)
Working Pressure: 0.4-0.6 MPa
Size of Air Compressor Connector: OD 8 MM
Machine Size: About 4000*1500*1800 MM
Package Size: About 1970*510*990 MM(Stopper Pressing Machine)+2020*770*1750 MM(Screw Capper)
Gross Weight: About 104 KG(Stopper Pressing Machine)+303 kg(Screw Capper)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

application of reed diffuser filling line

Zonesun ZS-FAL180B9 Magnetic Pump Reed Diffuser Filling Packaging Equipment Inner Stopper Pressing Cap

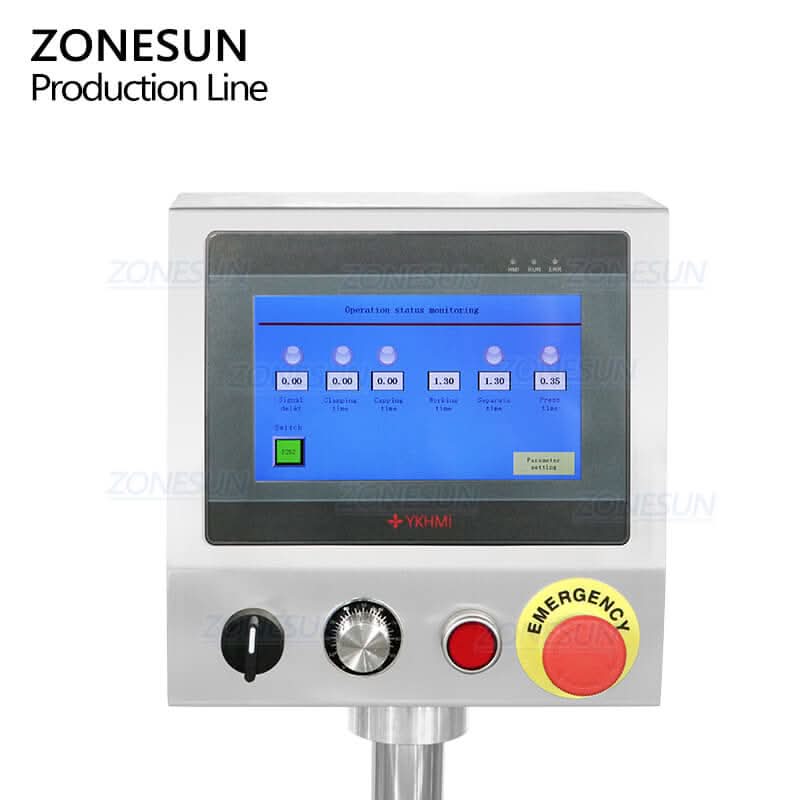

control panel of reed diffuser filling capping machine

The PLC control panel can shows working data in real time, more intuitive interface can simplifies machine operation. It can be customized into different kinds of language according to production need.

filling nozzle of reed diffuser filling capping machine

Filling work is controlled by 316 stainless steel magnetic pump, it has higher filling accuracy.Diving filling nozzle can prevent liquid from spraying out during filling work, it is good for foamy liquid. Multiple filling nozzles can be customized as needed.

electric eye of reed diffuser filling capping machine

Electric eye can detect passing by bottles and send signals to the system to control machine to start filling and capping work automatically. It improves working efficiency.

capping structure of reed diffuser filling capping machine

Controlled by air cylinder, the air nozzles can pass stoppers and put them onto bottle mouth like human hand, this suits the light caps or stoppers, it has high working accuracy.

vibratory bowl sorter of reed diffuser filling capping machine

By automating the sorting process, vibratory bowl sorting machines reduce the need for manual labor, resulting in increased efficiency and productivity. They are customized according to stoppers and caps size, and have high working accuracy.

cap screwing structure of reed diffuser filling capping machine

Working height and position of capping structure can be adjusted according to bottle cap size and shape.This kind of capping structure is suitable for various kinds of caps like spark caps, dropper bottles, sharp pointed bottles.

conveyor of reed diffuser filling capping machine

Length and width of chain conveyor can be customized according to production needs. It has larger weight capacity and can convey products more stably and smoothly.

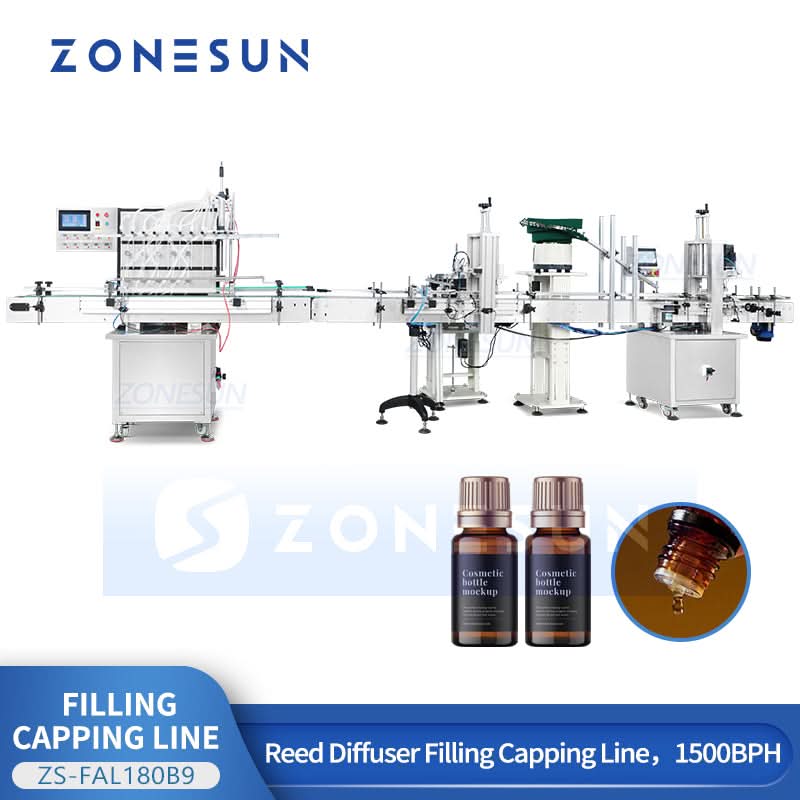

filling capping production line for reed diffuser

Inner Plug Inserter

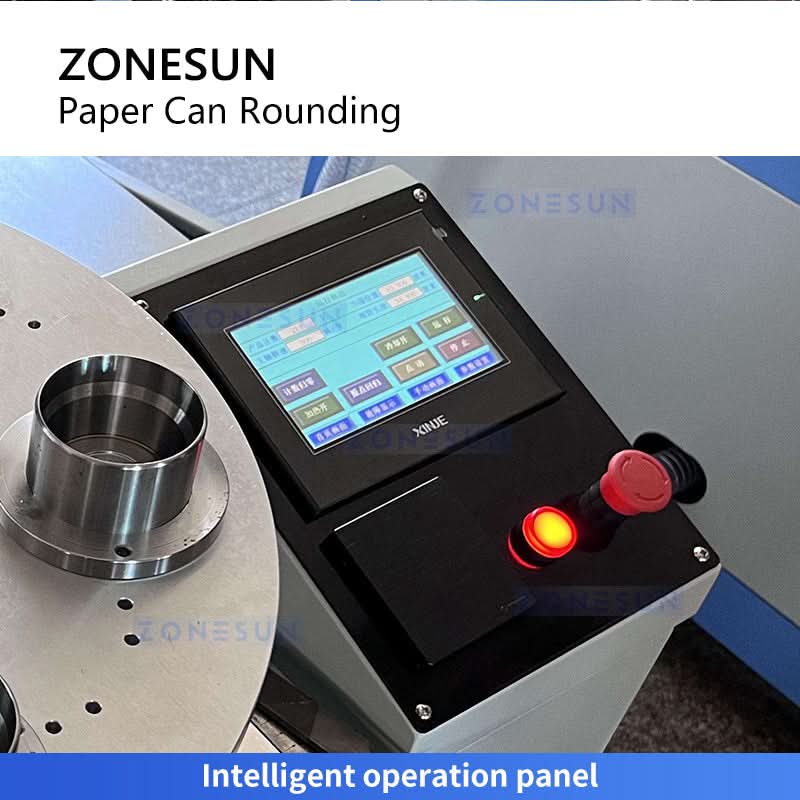

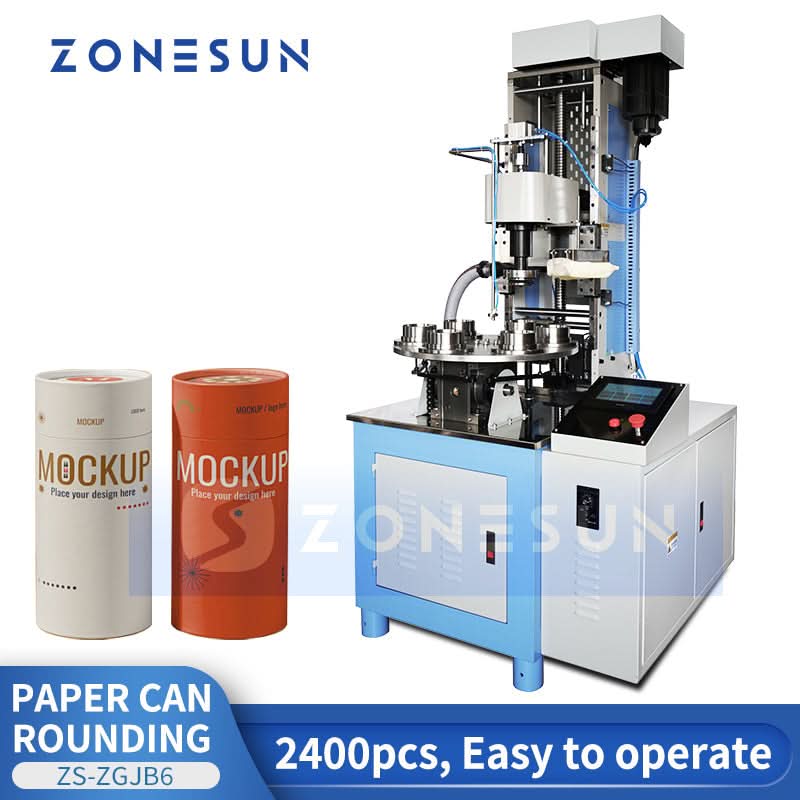

Zonesun ZS-ZGJB6 Round Box Edge Paper Tube Inner Curling Machine
