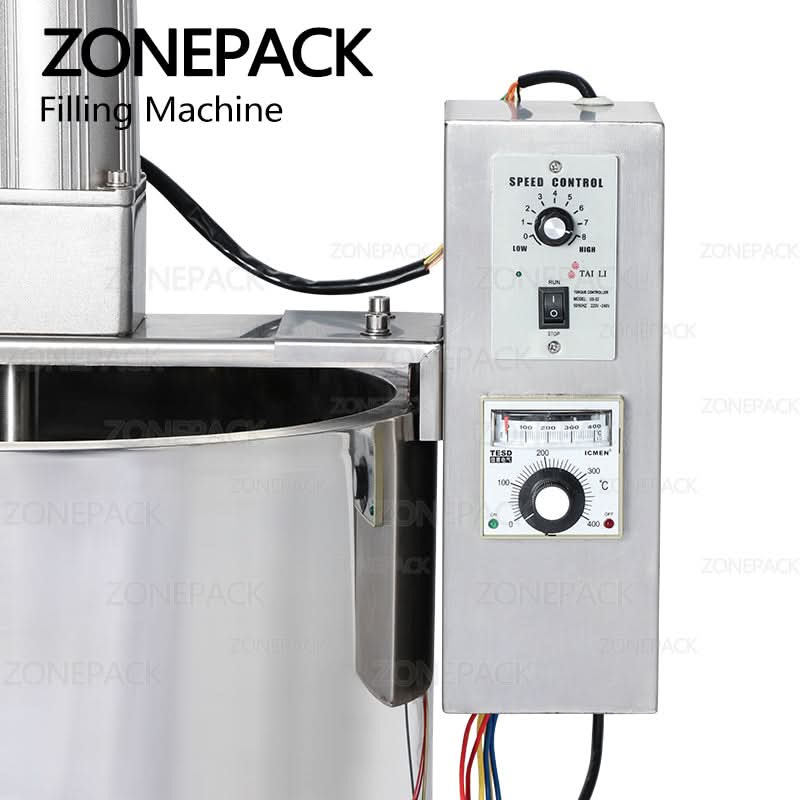

This pneumatic filling machine is designed for high-viscosity liquids and pastes such as chocolate sauce, arequipe, alcohol gel, and more. Equipped with a 30L stainless steel hopper, rotary valve system, and optional mixer and heating functions, it ensures smooth, accurate, and hygienic filling. Built with food-grade components and a no-drip system, it supports semi-auto and continuous modes. Ideal for cosmetics, food, and chemical industries, it can be customized with multiple heads or auxiliary equipment to meet high-efficiency production needs.
· All Parts in Contact with Product are Food Grade (SS 304/316)
· Includes one 30Liter Hopper
· Stainless Steel Construction

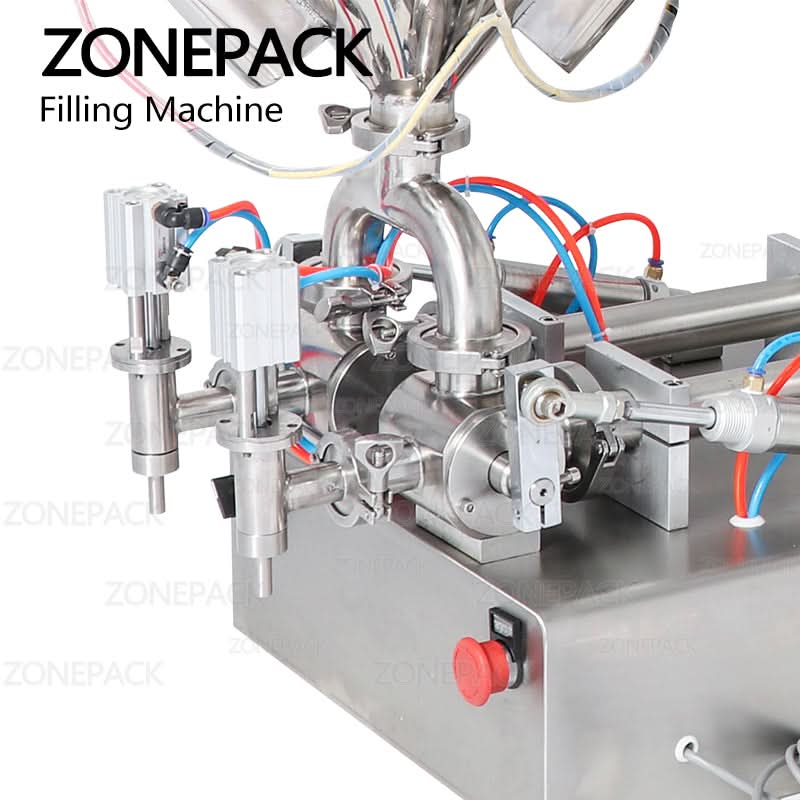

· Rugged Rotary Valve System Design

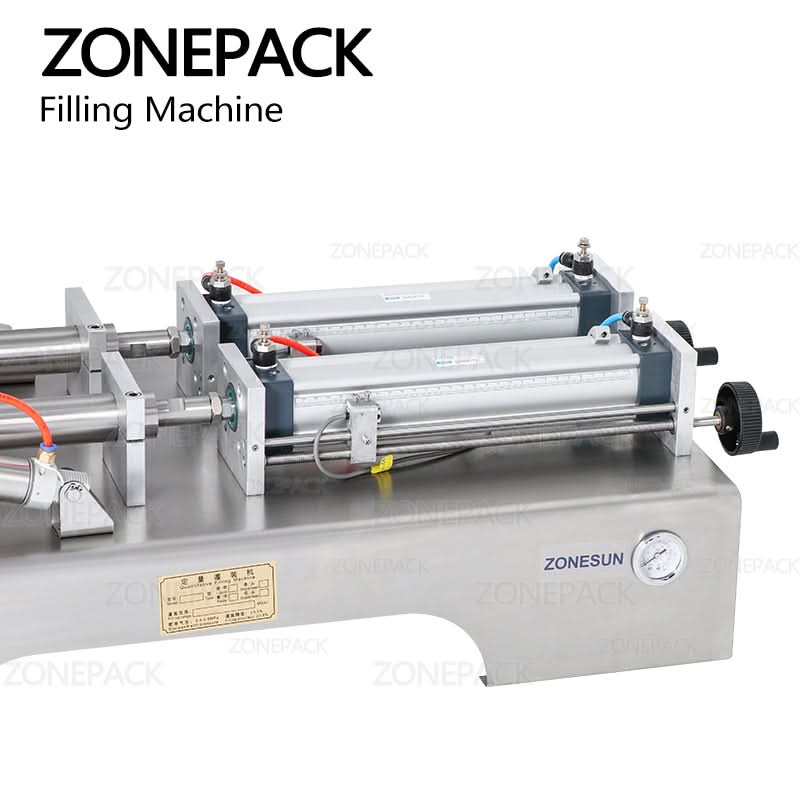

· Pneumatic Operation
· Silica gel O-ring System(cam bear 200 Celsius degree)
· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate (+/- 1%)
· Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.
Control Panel:
Semi Auto/Continuous Operation Selector Switch
Air Pressure Gauge
Air Intake Pressure Adjustment
Piston Volume Adjust
Accessory
Air Consumption 3-5KG 0.4-0.6MPa
Wearing parts : Silica gel O-ring System (when delivery, we will prepared enough for you use in one year.)
