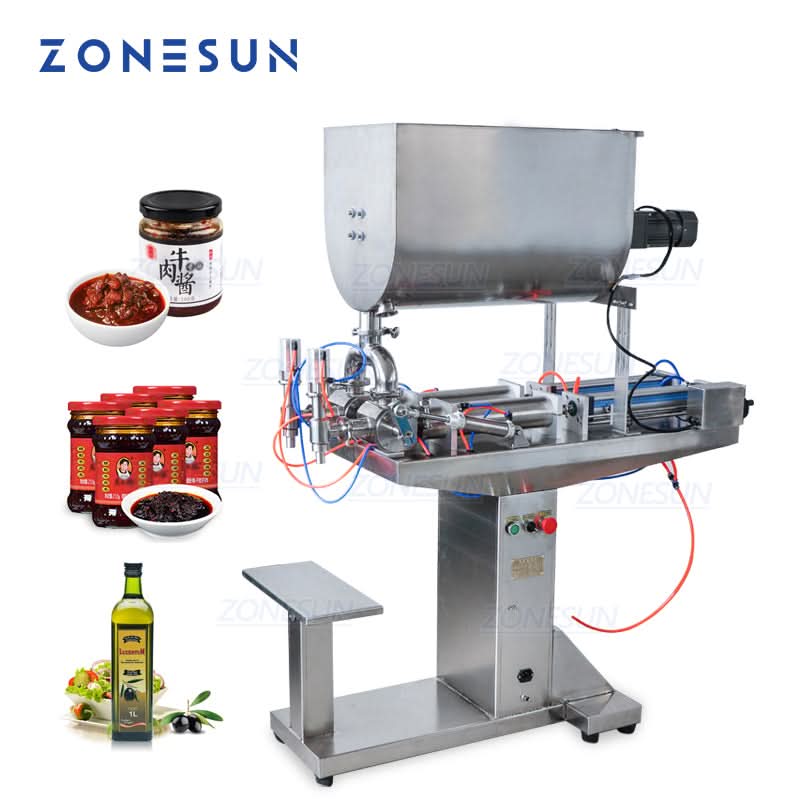

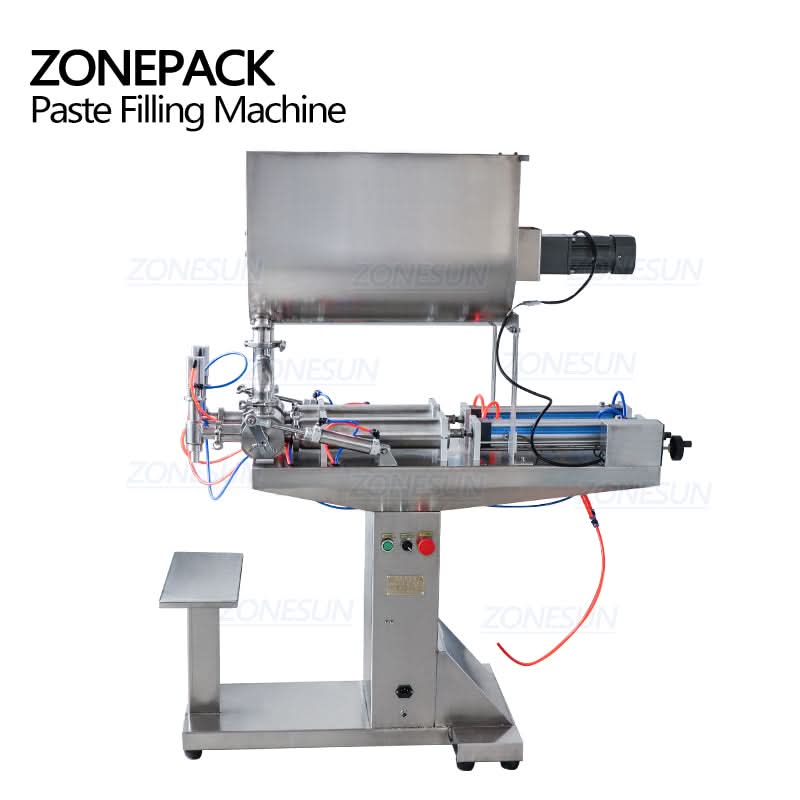

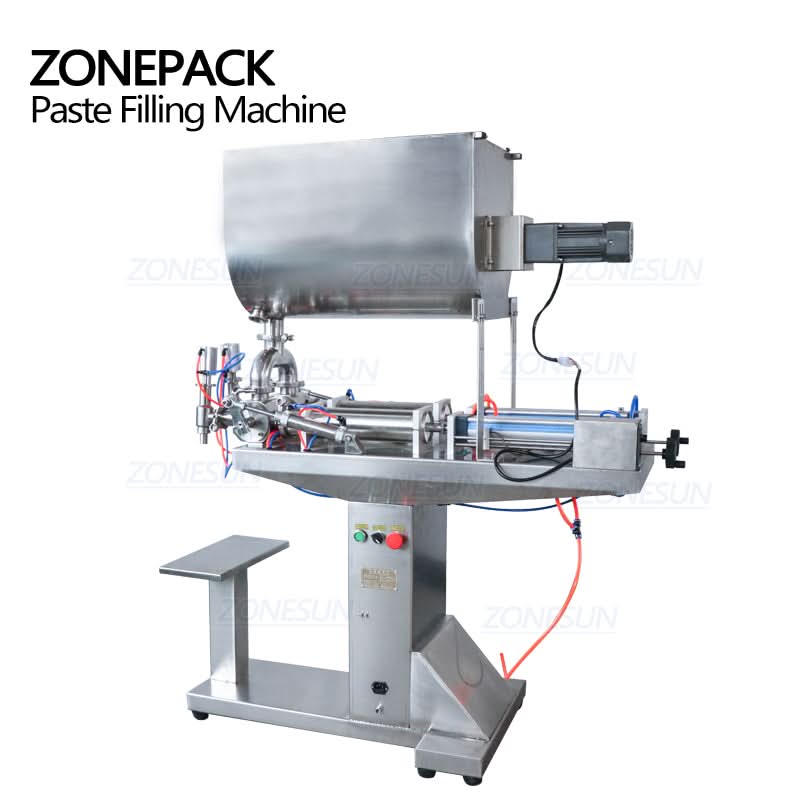

ZONESUN ZS-GTU2S Pneumatic Paste Filling Machine With Mixing Function
The ZONESUN ZS-GTU2S is a pneumatic paste filling machine engineered for high-viscosity products like chili sauce, honey, bean paste, and cream. Built with a mixing mechanism to prevent sedimentation and ensure smooth dispensing, it supports 1/2/4 nozzles for various filling capacities. Efficient, customizable, and ideal for small production lines, it greatly enhances output consistency and speed for food and condiment packaging.
Parameter Specification
Voltage 220V / 110V
Filling Nozzles 1 / 2 / 4 nozzles
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml /
500–3000ml / 1000–5000ml
Filling Speed 8–25 bottles/min
Filling Accuracy ≤1%
Air Pressure 0.4–0.6 MPa
Bottom Machinery Size 135 × 55 × 85 cm
Bottom Machinery Weight 70 kg
Mixing Machinery Size 115 × 60 × 55 cm
Mixing Machinery Weight 30 kg
The ZONESUN ZS-GTU2S is a pneumatic paste filling machine engineered for high-viscosity products like chili sauce, honey, bean paste, and cream. Built with a mixing mechanism to prevent sedimentation and ensure smooth dispensing, it supports 1/2/4 nozzles for various filling capacities. Efficient, customizable, and ideal for small production lines, it greatly enhances output consistency and speed for food and condiment packaging.
Parameter Specification
Voltage 220V / 110V
Filling Nozzles 1 / 2 / 4 nozzles
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml /
500–3000ml / 1000–5000ml
Filling Speed 8–25 bottles/min
Filling Accuracy ≤1%
Air Pressure 0.4–0.6 MPa
Bottom Machinery Size 135 × 55 × 85 cm
Bottom Machinery Weight 70 kg
Mixing Machinery Size 115 × 60 × 55 cm
Mixing Machinery Weight 30 kg
Original: $1,360.00
-70%$1,360.00
$408.00Description
The ZONESUN ZS-GTU2S is a pneumatic paste filling machine engineered for high-viscosity products like chili sauce, honey, bean paste, and cream. Built with a mixing mechanism to prevent sedimentation and ensure smooth dispensing, it supports 1/2/4 nozzles for various filling capacities. Efficient, customizable, and ideal for small production lines, it greatly enhances output consistency and speed for food and condiment packaging.
Parameter Specification
Voltage 220V / 110V
Filling Nozzles 1 / 2 / 4 nozzles
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml /
500–3000ml / 1000–5000ml
Filling Speed 8–25 bottles/min
Filling Accuracy ≤1%
Air Pressure 0.4–0.6 MPa
Bottom Machinery Size 135 × 55 × 85 cm
Bottom Machinery Weight 70 kg
Mixing Machinery Size 115 × 60 × 55 cm
Mixing Machinery Weight 30 kg
