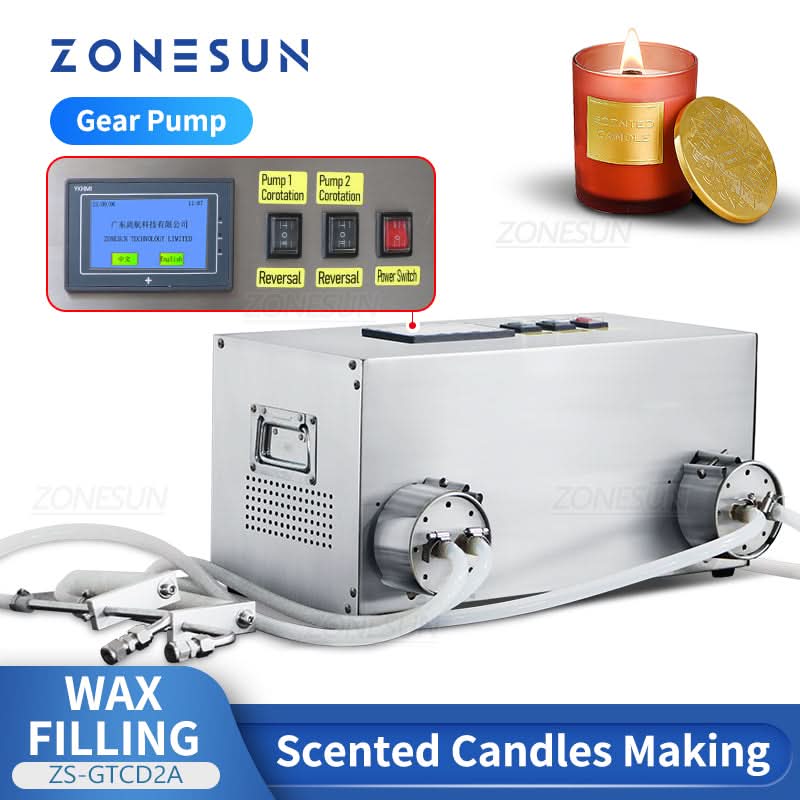

ZONESN ZS-GTCD2A Heated Wax Filling Machine for Candles & Hot Liquids

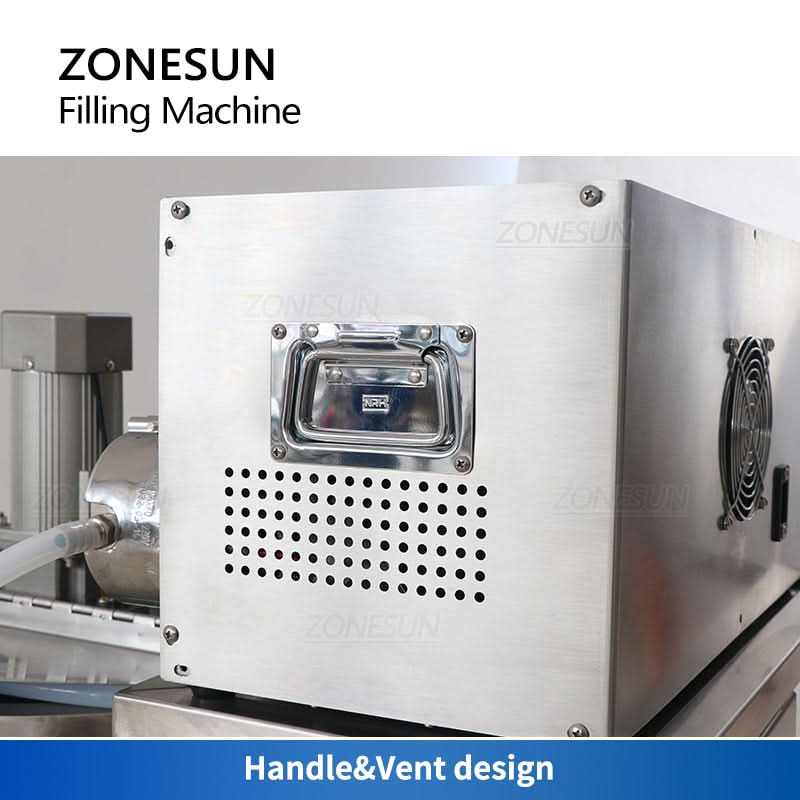

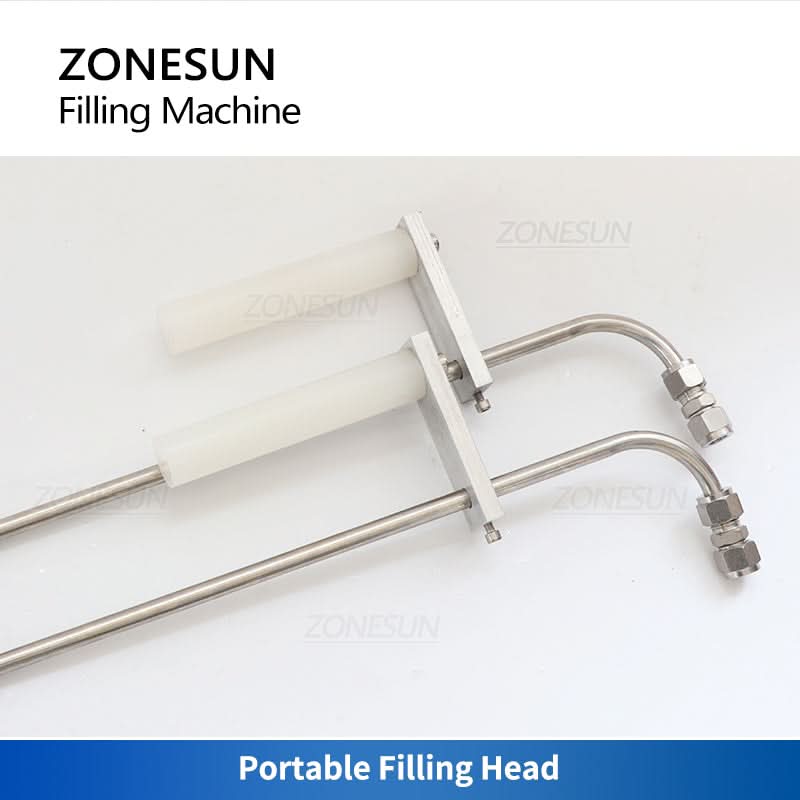

The ZONESUN ZS-GTCD2A is a wax filling machine engineered for precise dispensing of hot liquids in candle production and similar applications. It features a SUS304 stainless steel gear pump with integrated heating to maintain optimal wax fluidity during filling. The machine includes dual nozzles for simultaneous operation, adjustable temperature control for material flexibility, and a portable design with a retractable handle and ventilation system. Ideal for small to medium-scale manufacturing of wax-based products.
Specification Details
Model ZS-GTCD2A
Voltage 110V / 220V, 50–60Hz
Power Consumption 350W

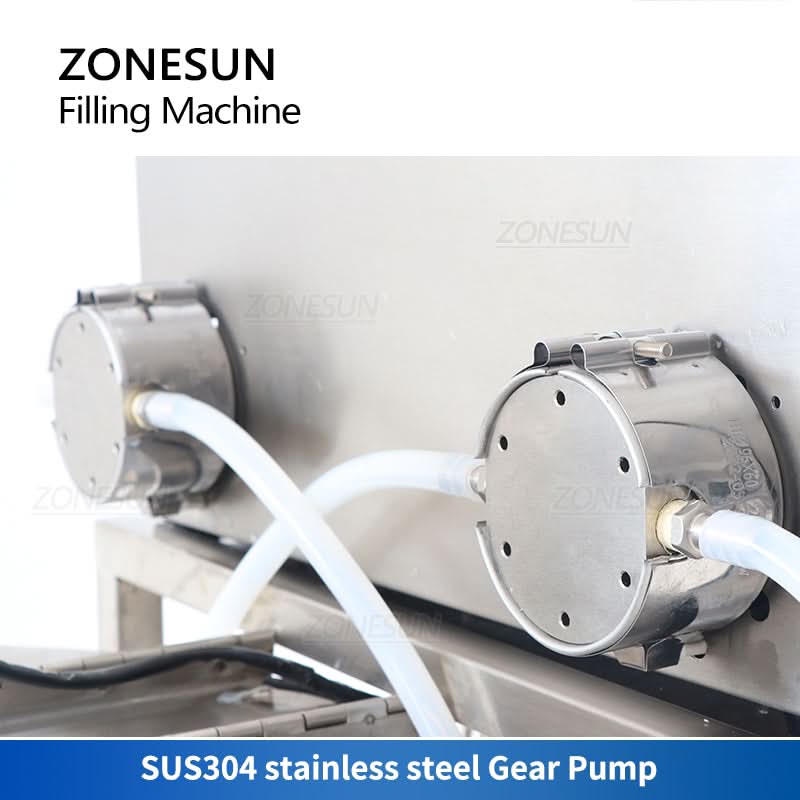

Pump Type 304 Stainless Steel Gear Pump
Heating Temperature 0–90°C
Working Speed Approx. 900 pcs/hour (based on 100g per fill)
Maximum Flow Rate 4L/min (Minimum filling volume: 50ml)
Machine Size Approx. 580 × 260 × 260mm
Machine Weight Approx. 32kg
The ZONESUN ZS-GTCD2A is a wax filling machine engineered for precise dispensing of hot liquids in candle production and similar applications. It features a SUS304 stainless steel gear pump with integrated heating to maintain optimal wax fluidity during filling. The machine includes dual nozzles for simultaneous operation, adjustable temperature control for material flexibility, and a portable design with a retractable handle and ventilation system. Ideal for small to medium-scale manufacturing of wax-based products.
Specification Details
Model ZS-GTCD2A
Voltage 110V / 220V, 50–60Hz
Power Consumption 350W
Pump Type 304 Stainless Steel Gear Pump
Heating Temperature 0–90°C
Working Speed Approx. 900 pcs/hour (based on 100g per fill)
Maximum Flow Rate 4L/min (Minimum filling volume: 50ml)
Machine Size Approx. 580 × 260 × 260mm
Machine Weight Approx. 32kg
Original: $949.00
-70%$949.00
$284.70Description
The ZONESUN ZS-GTCD2A is a wax filling machine engineered for precise dispensing of hot liquids in candle production and similar applications. It features a SUS304 stainless steel gear pump with integrated heating to maintain optimal wax fluidity during filling. The machine includes dual nozzles for simultaneous operation, adjustable temperature control for material flexibility, and a portable design with a retractable handle and ventilation system. Ideal for small to medium-scale manufacturing of wax-based products.
Specification Details
Model ZS-GTCD2A
Voltage 110V / 220V, 50–60Hz
Power Consumption 350W
Pump Type 304 Stainless Steel Gear Pump
Heating Temperature 0–90°C
Working Speed Approx. 900 pcs/hour (based on 100g per fill)
Maximum Flow Rate 4L/min (Minimum filling volume: 50ml)
Machine Size Approx. 580 × 260 × 260mm
Machine Weight Approx. 32kg
