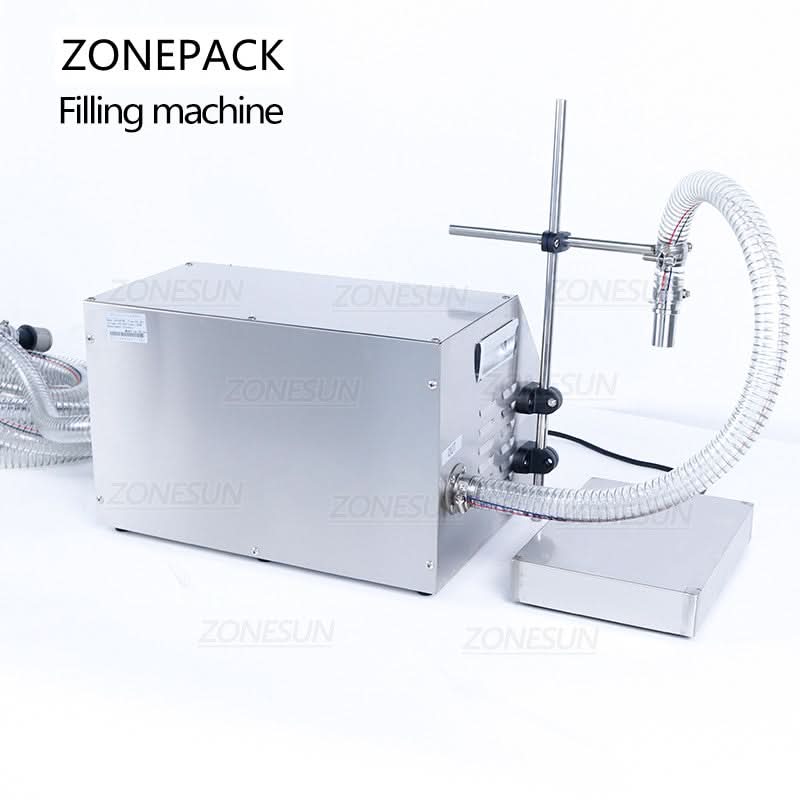

ZONESUN ZS-DP431W High-Flow Liquid Weighing Filling Machine
The ZONESUN ZS-DP431W is a semi-automatic liquid filling machine designed for high-efficiency, large-volume applications. With a powerful diaphragm pump and a maximum flow rate of 35L/min, it’s ideal for filling non-viscous liquids such as water, juice, liquor, shampoo, and essential oils. This machine integrates precise weighing control with user-friendly operation, making it perfect for small to medium-scale production in industries like food, cosmetics, pharmaceuticals, and catering. Its robust build and intelligent memory function ensure consistent performance even during power interruptions.
Parameter Specification
Machine Model ZS-DP431W
Machine Power 220V / 110V, 50–60Hz, 550W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min
Filling Range 150mL–35L
Weighing Range 150g–10kg
Repetitive Error ±10g
Filling Nozzle Diameter Φ25mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Max Suction Distance 4m
Liquid Temperature <50°C
Memory Function (Power Loss) Available
Machine Size 400mm × 300mm × 260mm

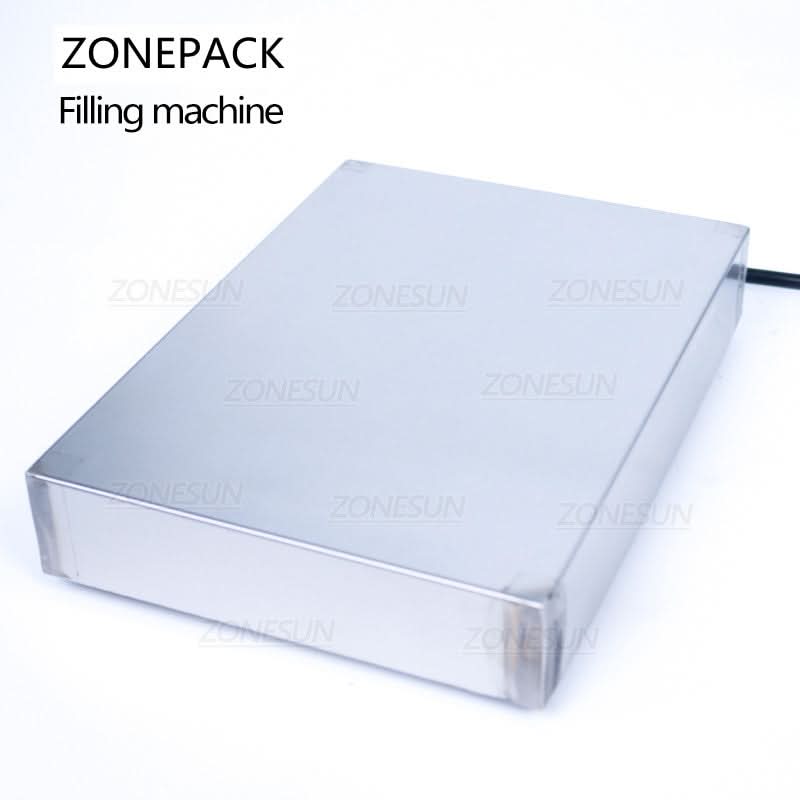

Weighing Device Size 250mm × 180mm × 42mm
Machine Weight 14kg
Package Weight 16kg
Package Size (Machine) 410mm × 500mm × 330mm
Package Size (Weighing Device) 400mm × 370mm × 270mm
The ZONESUN ZS-DP431W is a semi-automatic liquid filling machine designed for high-efficiency, large-volume applications. With a powerful diaphragm pump and a maximum flow rate of 35L/min, it’s ideal for filling non-viscous liquids such as water, juice, liquor, shampoo, and essential oils. This machine integrates precise weighing control with user-friendly operation, making it perfect for small to medium-scale production in industries like food, cosmetics, pharmaceuticals, and catering. Its robust build and intelligent memory function ensure consistent performance even during power interruptions.
Parameter Specification
Machine Model ZS-DP431W
Machine Power 220V / 110V, 50–60Hz, 550W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min
Filling Range 150mL–35L
Weighing Range 150g–10kg
Repetitive Error ±10g
Filling Nozzle Diameter Φ25mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Max Suction Distance 4m
Liquid Temperature <50°C
Memory Function (Power Loss) Available
Machine Size 400mm × 300mm × 260mm
Weighing Device Size 250mm × 180mm × 42mm
Machine Weight 14kg
Package Weight 16kg
Package Size (Machine) 410mm × 500mm × 330mm
Package Size (Weighing Device) 400mm × 370mm × 270mm
Select Voltage
Select Type
From $1.35
Original: $4.50
-70%ZONESUN ZS-DP431W High-Flow Liquid Weighing Filling Machine—
$4.50
$1.35Description
The ZONESUN ZS-DP431W is a semi-automatic liquid filling machine designed for high-efficiency, large-volume applications. With a powerful diaphragm pump and a maximum flow rate of 35L/min, it’s ideal for filling non-viscous liquids such as water, juice, liquor, shampoo, and essential oils. This machine integrates precise weighing control with user-friendly operation, making it perfect for small to medium-scale production in industries like food, cosmetics, pharmaceuticals, and catering. Its robust build and intelligent memory function ensure consistent performance even during power interruptions.
Parameter Specification
Machine Model ZS-DP431W
Machine Power 220V / 110V, 50–60Hz, 550W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min
Filling Range 150mL–35L
Weighing Range 150g–10kg
Repetitive Error ±10g
Filling Nozzle Diameter Φ25mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Max Suction Distance 4m
Liquid Temperature <50°C
Memory Function (Power Loss) Available
Machine Size 400mm × 300mm × 260mm
Weighing Device Size 250mm × 180mm × 42mm
Machine Weight 14kg
Package Weight 16kg
Package Size (Machine) 410mm × 500mm × 330mm
Package Size (Weighing Device) 400mm × 370mm × 270mm
