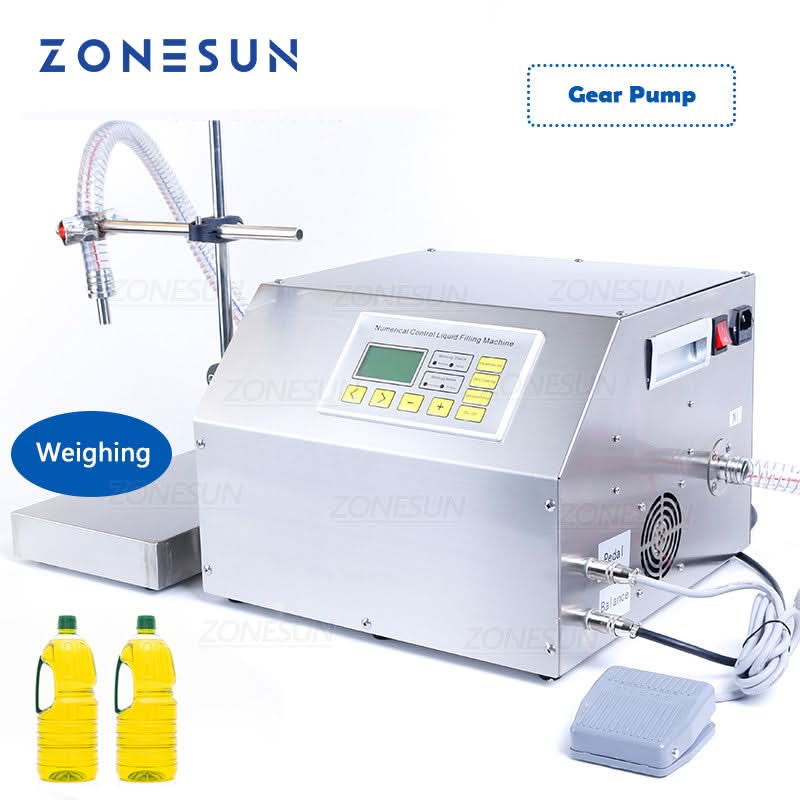

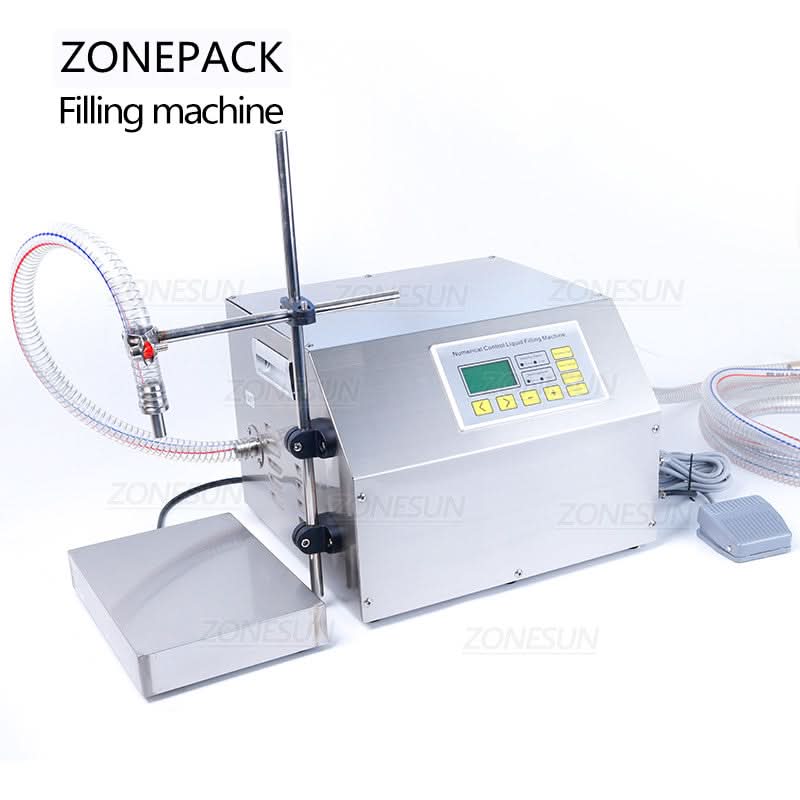

ZONESUN ZS-GP261W Oil Weighing Gear Pump Filling Machine

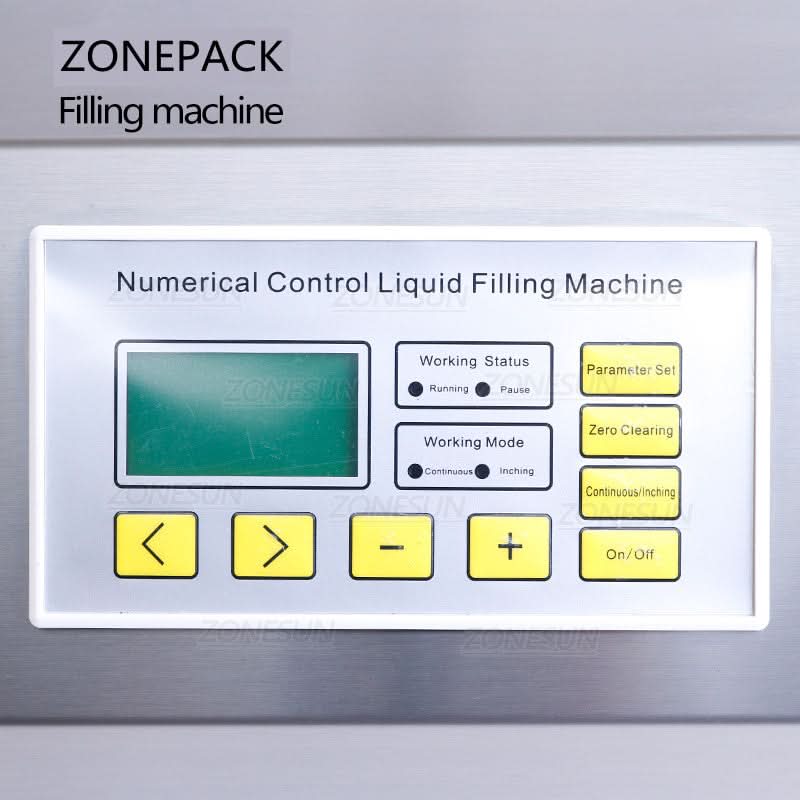

The ZONESUN ZS-GP261W is a semi-automatic gear pump filling machine designed for precise oil dispensing. Ideal for edible oil, engine oil, and hydraulic fluids, it features an integrated weighing system that allows users to set the desired filling weight directly from the control panel. With a flow rate of 18L/min, it boosts productivity while maintaining high accuracy. Its compact design and user-friendly interface make it suitable for small-scale production in catering, cosmetics, and chemical industries.
ZS-GP261W Liquid Filling Machine Specifications
Parameter Specification
Machine Model ZS-GP261W
Machine Power 220V / 110V, 550W
Machine Pump Gear Pump
Max Flow Rate 18L/min
Filling Range 150mL–18L
Weighing Range 150g–100kg
Repetitive Error ≤±10g

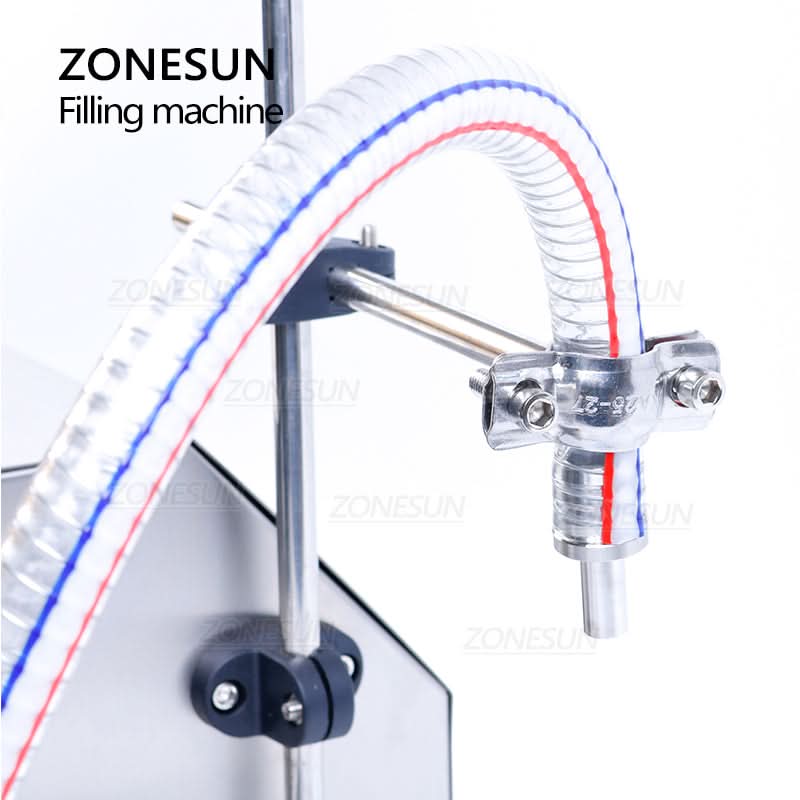

Filling Nozzle Diameter Φ12mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Max Suction Distance 4m
Suitable Liquid Temperature <90°C
Memory Function (Power Loss) Available
Weighing Device Size 250mm × 180mm × 42mm
Machine Size 350mm × 343mm × 250mm (L × W × H)
Machine Weight 14.5kg
Package Weight 16kg
Package Size (Machine) 500mm × 410mm × 320mm
Package Size (Weighing Device) 400mm × 370mm × 200mm
Parameter Specification
Machine Model ZS-GP261W
Machine Power 220V / 110V, 550W
Machine Pump Gear Pump
Max Flow Rate 18L/min
Filling Range 150mL–18L
Weighing Range 150g–100kg
Repetitive Error ≤±10g
Filling Nozzle Diameter Φ12mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Max Suction Distance 4m
Suitable Liquid Temperature <90°C
Memory Function (Power Loss) Available
Weighing Device Size 250mm × 180mm × 42mm
Machine Size 350mm × 343mm × 250mm (L × W × H)
Machine Weight 14.5kg
Package Weight 16kg
Package Size (Machine) 500mm × 410mm × 320mm
Package Size (Weighing Device) 400mm × 370mm × 200mm
The ZONESUN ZS-GP261W is a semi-automatic gear pump filling machine designed for precise oil dispensing. Ideal for edible oil, engine oil, and hydraulic fluids, it features an integrated weighing system that allows users to set the desired filling weight directly from the control panel. With a flow rate of 18L/min, it boosts productivity while maintaining high accuracy. Its compact design and user-friendly interface make it suitable for small-scale production in catering, cosmetics, and chemical industries.
ZS-GP261W Liquid Filling Machine Specifications
Parameter Specification
Machine Model ZS-GP261W
Machine Power 220V / 110V, 550W
Machine Pump Gear Pump
Max Flow Rate 18L/min
Filling Range 150mL–18L
Weighing Range 150g–100kg
Repetitive Error ≤±10g
Filling Nozzle Diameter Φ12mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Max Suction Distance 4m
Suitable Liquid Temperature <90°C
Memory Function (Power Loss) Available
Weighing Device Size 250mm × 180mm × 42mm
Machine Size 350mm × 343mm × 250mm (L × W × H)
Machine Weight 14.5kg
Package Weight 16kg
Package Size (Machine) 500mm × 410mm × 320mm
Package Size (Weighing Device) 400mm × 370mm × 200mm
Parameter Specification
Machine Model ZS-GP261W
Machine Power 220V / 110V, 550W
Machine Pump Gear Pump
Max Flow Rate 18L/min
Filling Range 150mL–18L
Weighing Range 150g–100kg
Repetitive Error ≤±10g
Filling Nozzle Diameter Φ12mm & Φ19mm
Hose Diameter 19mm (ID) / 25mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Max Suction Distance 4m
Suitable Liquid Temperature <90°C
Memory Function (Power Loss) Available
Weighing Device Size 250mm × 180mm × 42mm
Machine Size 350mm × 343mm × 250mm (L × W × H)
Machine Weight 14.5kg
Package Weight 16kg
Package Size (Machine) 500mm × 410mm × 320mm
Package Size (Weighing Device) 400mm × 370mm × 200mm
$147.00
Original: $490.00
-70%ZONESUN ZS-GP261W Oil Weighing Gear Pump Filling Machine—
$490.00
$147.00Description
The ZONESUN ZS-GP261W is a semi-automatic gear pump filling machine designed for precise oil dispensing. Ideal for edible oil, engine oil, and hydraulic fluids, it features an integrated weighing system that allows users to set the desired filling weight directly from the control panel. With a flow rate of 18L/min, it boosts productivity while maintaining high accuracy. Its compact design and user-friendly interface make it suitable for small-scale production in catering, cosmetics, and chemical industries.
