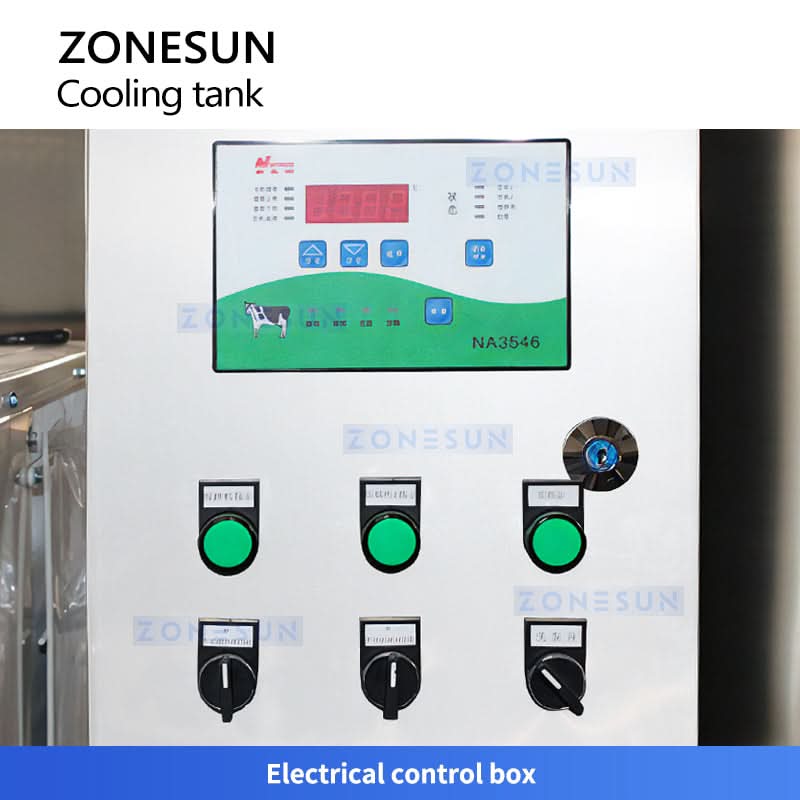

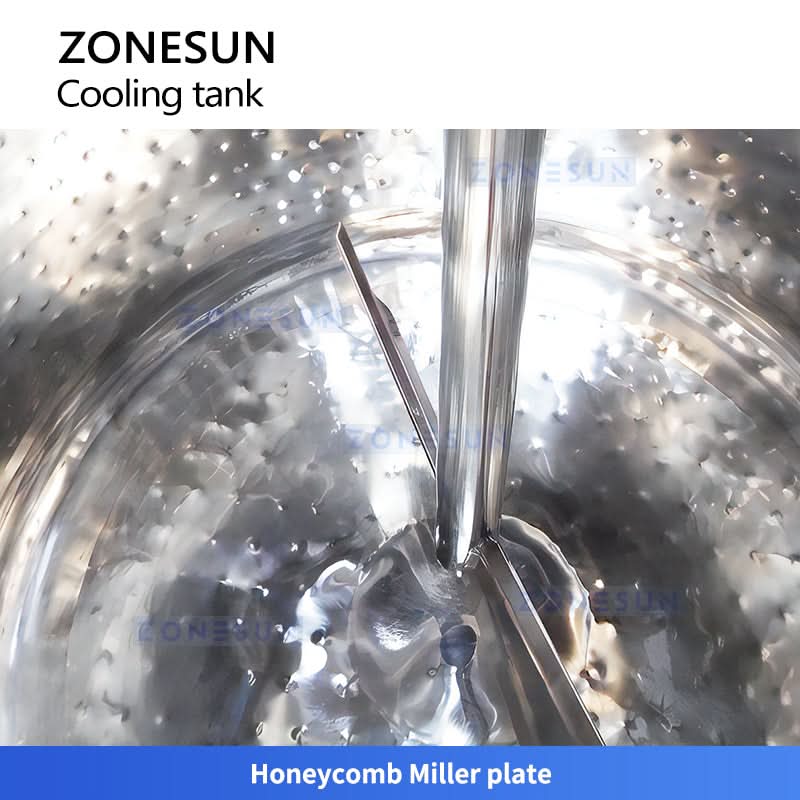

The ZS-CT200L Cooling Refrigeration Tank combines advanced honeycomb Miller plate technology with intelligent automation to deliver rapid temperature reduction and efficient ingredient preservation. Its one-button control panel enables real-time temperature monitoring without manual supervision. Equipped with a low-noise motor-reducer system and a fully enclosed American Valley Wheel compressor, this tank ensures stable performance, energy savings, and long service life—ideal for food processing and storage applications.

Note:
Before entering the cooling tank, the material temperature should be reduced to below 45°C.
The compressor will then start working, and the cooling tank can further reduce the temperature to 2–6°C.

Model	Size (L×W×H)	Unit Power	Refrigeration Temp	Total Power	Mixer Power	Stirring Speed	Plate Thickness
ZS-CT200L	1550×1000×1350 mm	3P/set	≥0°C	2 kW	0.75 kW	36 rpm	2 mm
ZS-CT300L	1700×900×1550 mm	3P/set	≥0°C	2.6 kW	0.75 kW	36 rpm	2 mm
ZS-CT500L	1700×1100×1950 mm	3P/set	≥0°C	2.6 kW	0.75 kW	36 rpm	2 mm
ZS-CT1000L	2250×1400×2200 mm	3P/set	≥0°C	2.6 kW	0.75 kW	36 rpm	2 mm
ZS-CT2000L	2050×1500×1500 mm	5P/set	≥0°C	4.5 kW	0.75 kW	36 rpm
