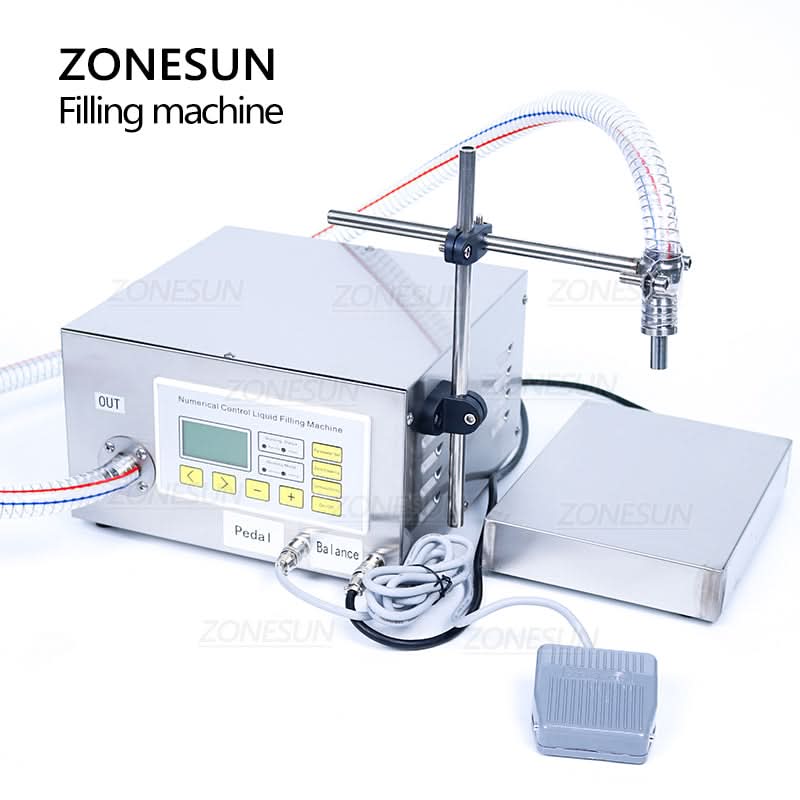

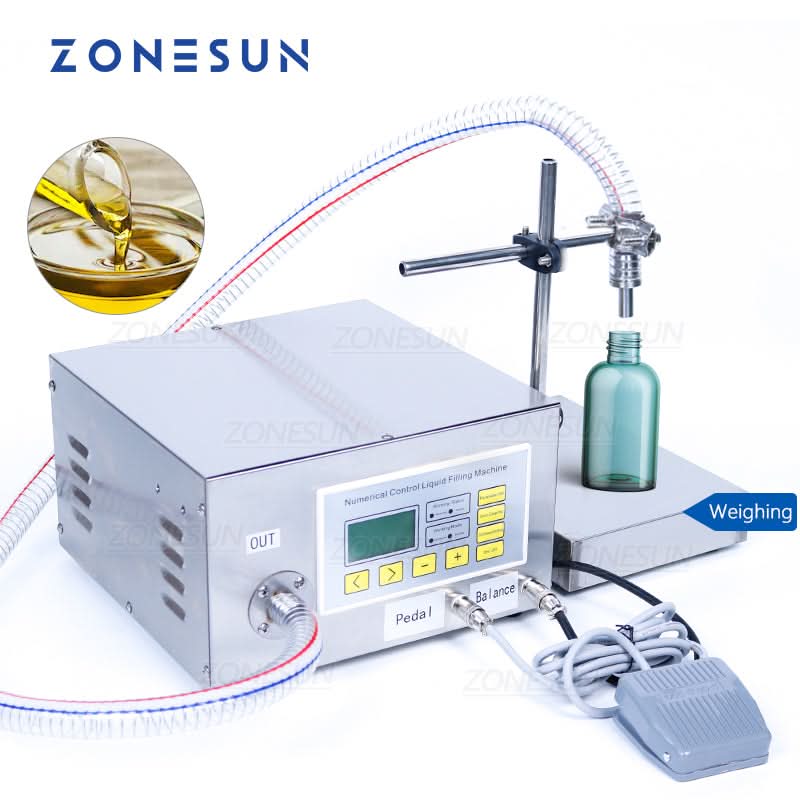

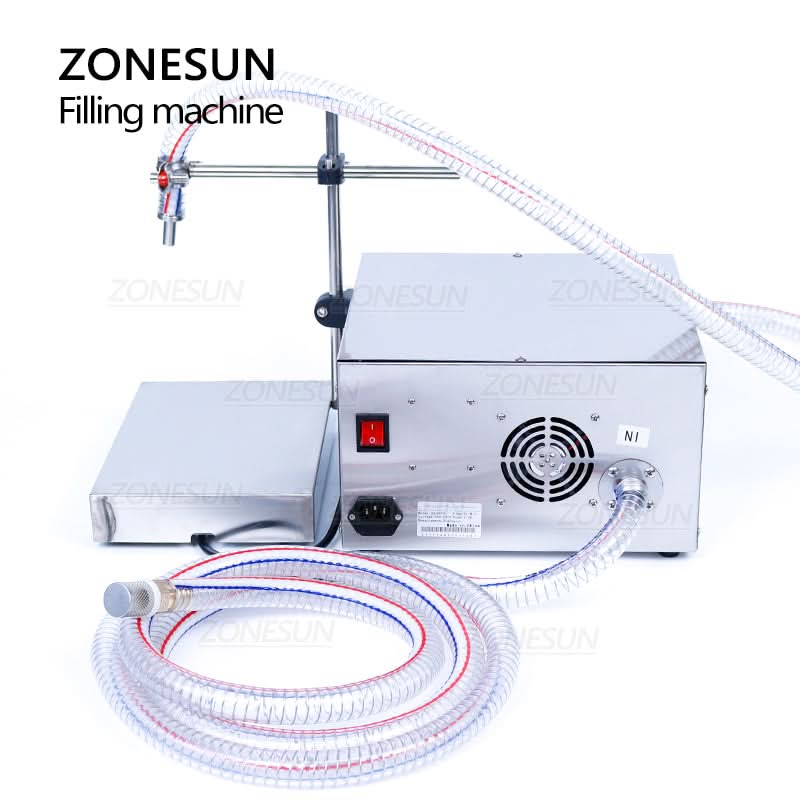

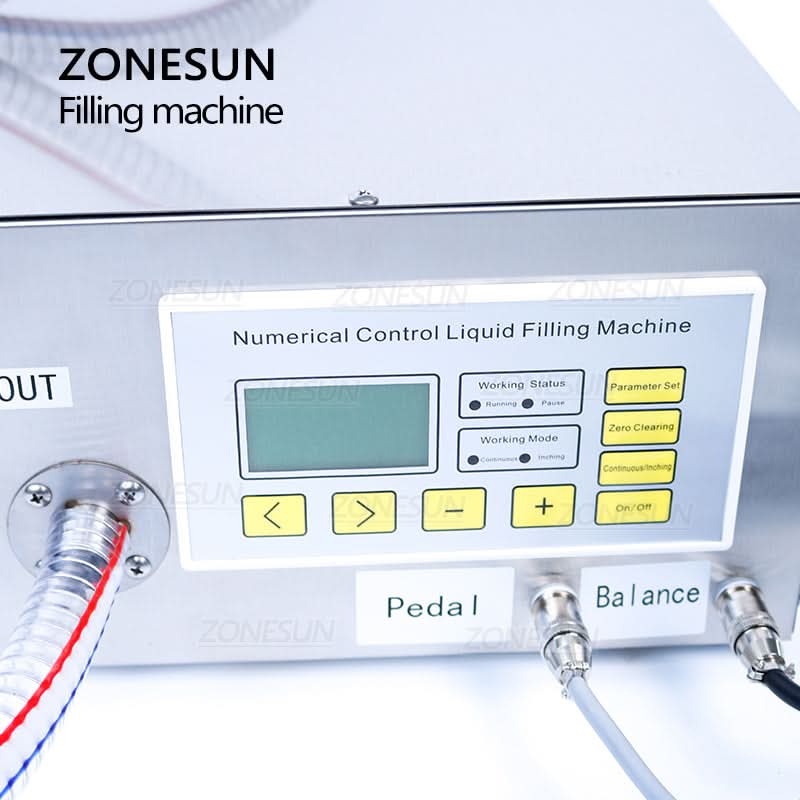

ZONESUN ZS-GP631 Gear Pump Oil Filling Machine with Weighing Function
Description
The ZS-GP631 gear pump filling machine offers precise oil dispensing with integrated weighing accuracy. Designed for edible, engine, and hydraulic oils, it enhances efficiency across food, cosmetic, and chemical industries. Its non-water compatibility ensures specialized use in oil-based applications, delivering reliable performance for diverse packaging needs.
Parameter
Machine Model ZS-GP631
Machine Power 220V/110V, 50–60Hz, 210W
Machine Pump Gear Pump
Max Flow Rate 8L/min
Filling Range 50mL–8L
Weighing Range 50g–10kg
Suitable Liquid Temperature Less than 90°C
Repetitive Error ±10g

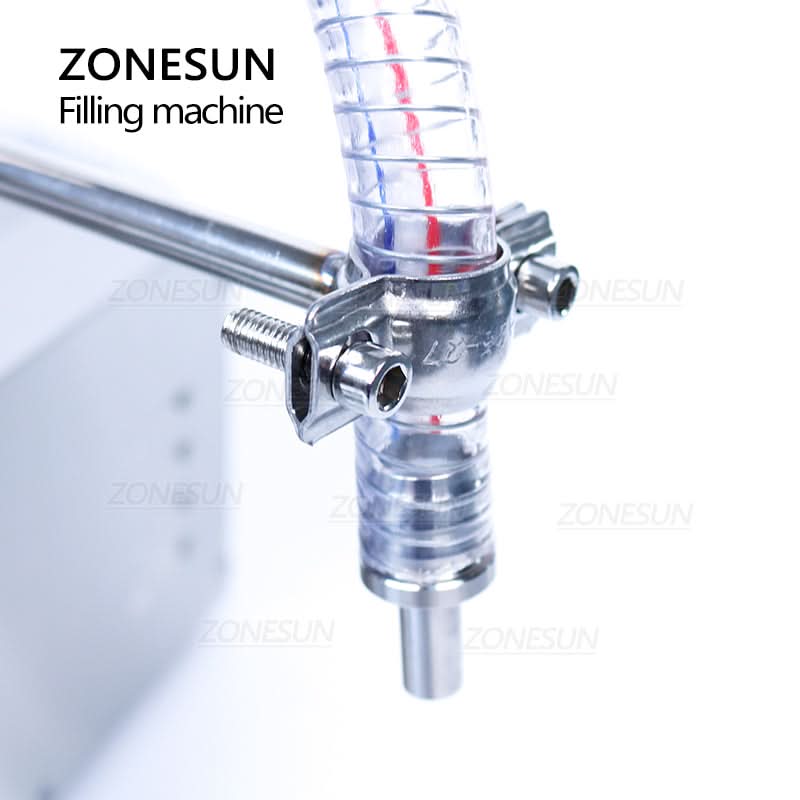

Filling Nozzle Diameter Φ12mm & Φ19mm
Hose Diameter 12mm (ID) / 16mm (OD)
Hose Length 2m (Inlet) / 2m (Outlet)
Max Suction Distance 4m
Weighing Device Size 180 × 250 × 42mm
Machine Weight Approx. 9kg
Machine Size 280 × 275 × 160mm
Package Weight Approx. 9.5kg
Package Size 400 × 365 × 240mm
