Parameters

• Model: H57
• Votalge: 220V/50Hz
• Power: 500W
• Stamping area: 8*10cm
• Temperature: 0-400°C
• Net weight: 2.5kg
• Gross weight: 3kg
• Package size: 30x13x11cm

Application

Embossed leather, wood products, handicrafts, handbags purses, sticker, stationery, footwear mark,plastic packaging, leather embossed branding, car seats, mobile phone sets, paper invitations, cards, notes, furniture, branding, gilt frames plastic stamping etc.

Note

Handle color ship at random.

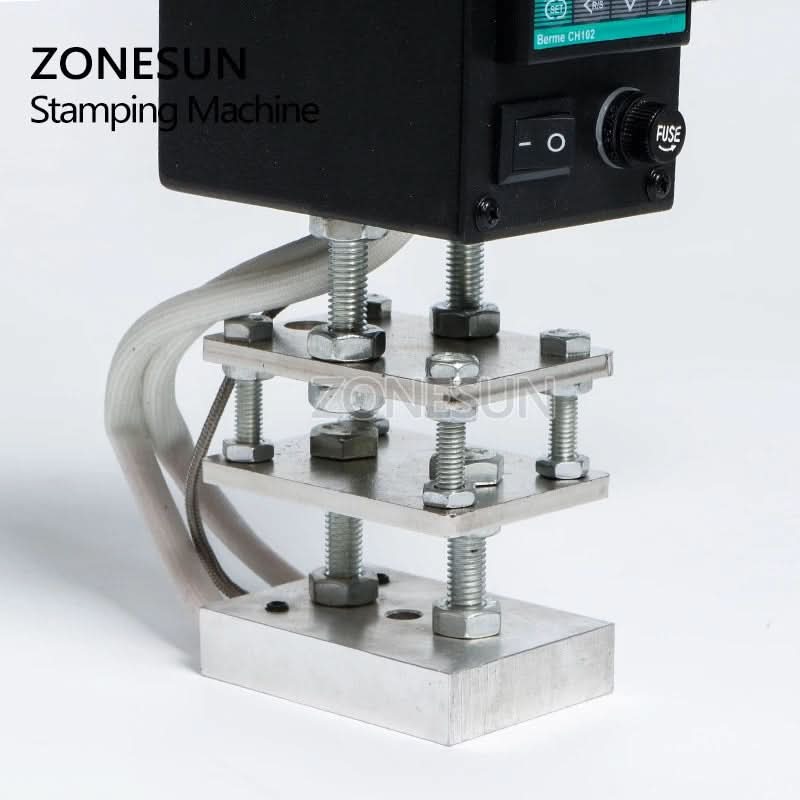

This machine has one 4mm diameter hole at the heat plate, contact us to customized mold with stem and screw so that you can install on the machine.





How to operate

This machine has one 4mm diameter hole at the heat plate, contact us to customized mold with stem and screw so that you can install on the machine.



Step 1: Install the die with stem and fix it by screw.

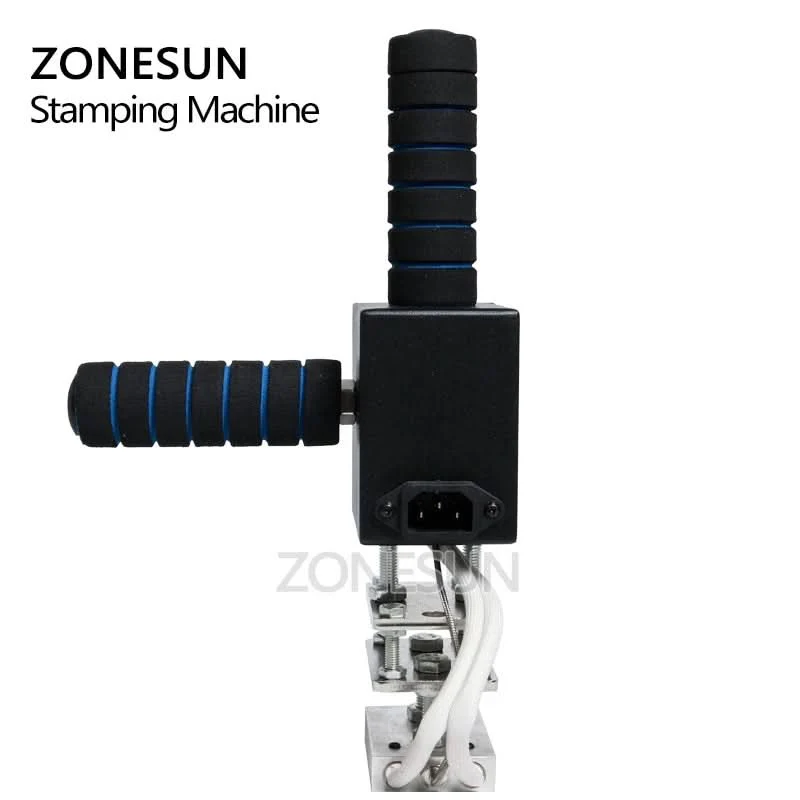

Step 2: Connect the Plug to power (for 110V, a power transformer is needed, this machine is 220V)

Step 3: Pressthe red button to power it on.

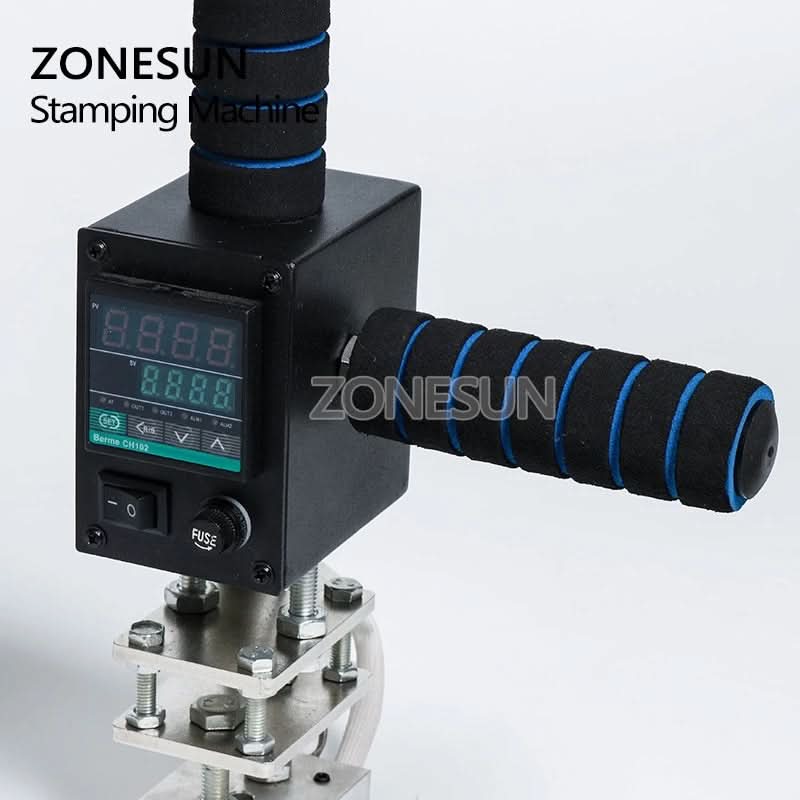

Step 4: Press set key to begin to setup the temperature

Step 5: Press <  to select single digit

Step 6: Press the last two up and down buttons to adjust the temperature.





Stamping reference temperature

Paper: 85-120°C

Soft plastic: 75-85 °C

Hard plastic: 35-100 °C

Man-made Leather: 75-85 °C

Creasing temperature: cowhide 120-150 °C

Soft PVC: 65-80 °C

Synthetic Leather: 160-180 °C

Wood mark: 350°C
