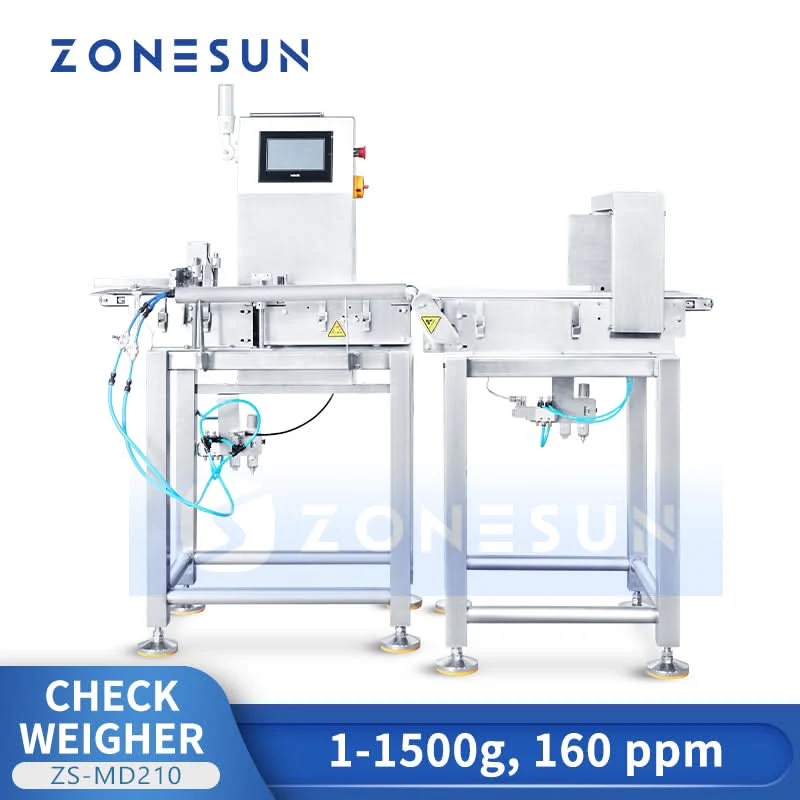

ZONESUN Weight Detector Industrial Weighing for Production Line ZS-MD210
Parameter
Model ZS-MD210
Power Supply AC220V ±10%, 50Hz/60Hz
Rated Power 0.15KW
Weighing Range 1g – 1500g
Accuracy ±0.2g
Minimum Scale 0.1g
Conveying Speed 30–100m/min
Max Throughput 160 pcs/min
Applicable Product Size ≤300mm (L) × 200mm (W)
Conveyor Size 400mm (L) × 210mm (W)

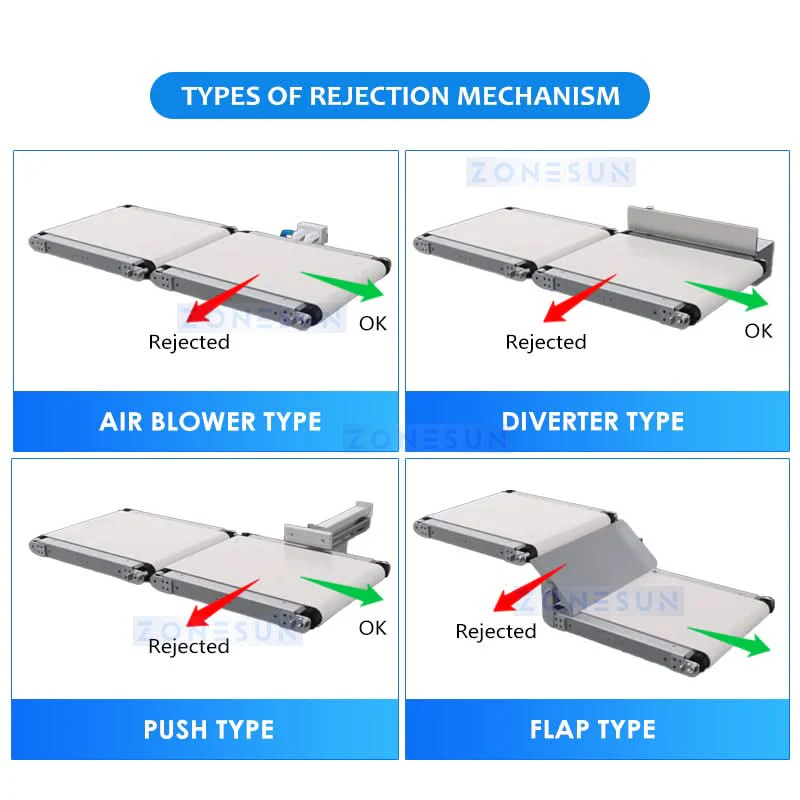

Rejection Type Push / Lever / Flap / Air Blower / Belt Sinking (Customizable)

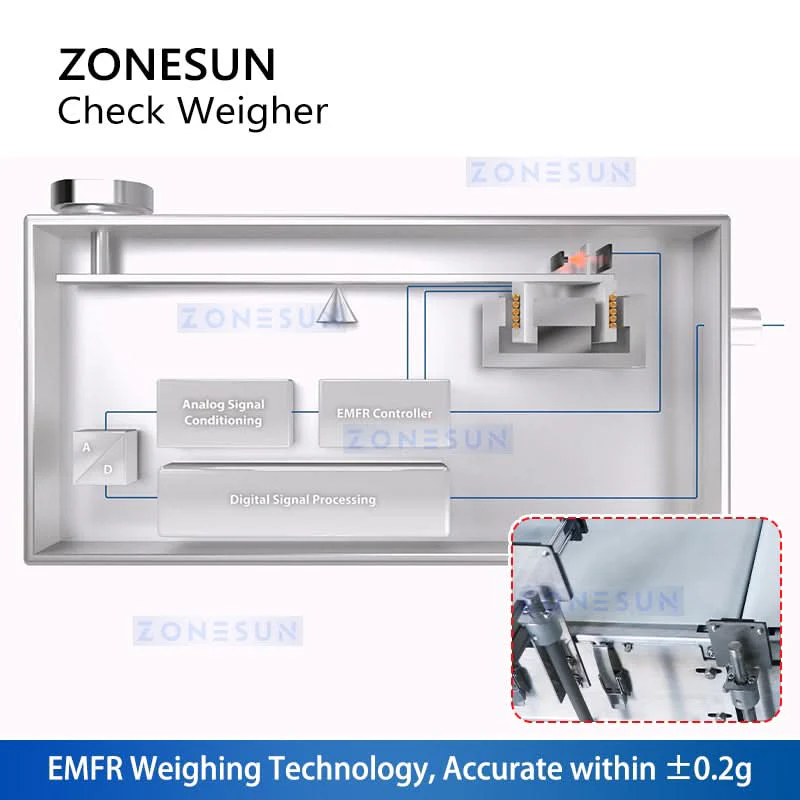

Weighing Technology EMFR Load Cell
Throughput Direction Left to Right (facing control panel)

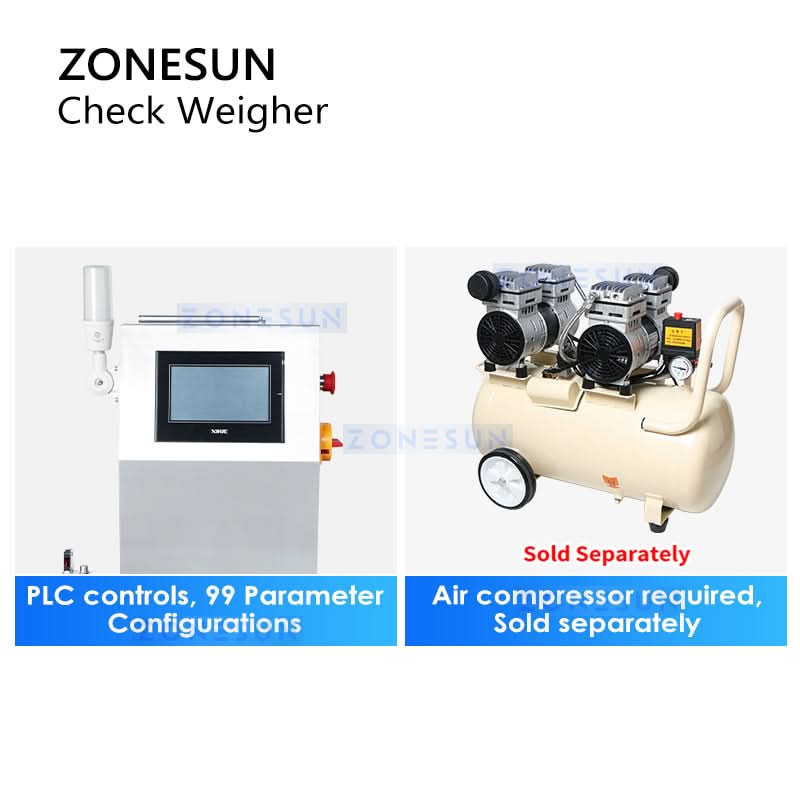

Air Supply 0.6–1Mpa
Air Connector Size Φ8mm
Body Material SUS304 Stainless Steel
Working Environment Temp: -30°C to 40°C; Humidity: 30% to 95%
Machine Size (L × W × H) Approx. 1522 × 560 × 1222mm
Package Size (L × W × H) Approx. 1330 × 960 × 1520mm
Package Weight Approx. 174kg
The height of the channel can be customized according to the product
Parameter
Model ZS-MD210
Power Supply AC220V ±10%, 50Hz/60Hz
Rated Power 0.15KW
Weighing Range 1g – 1500g
Accuracy ±0.2g
Minimum Scale 0.1g
Conveying Speed 30–100m/min
Max Throughput 160 pcs/min
Applicable Product Size ≤300mm (L) × 200mm (W)
Conveyor Size 400mm (L) × 210mm (W)
Rejection Type Push / Lever / Flap / Air Blower / Belt Sinking (Customizable)
Weighing Technology EMFR Load Cell
Throughput Direction Left to Right (facing control panel)
Air Supply 0.6–1Mpa
Air Connector Size Φ8mm
Body Material SUS304 Stainless Steel
Working Environment Temp: -30°C to 40°C; Humidity: 30% to 95%
Machine Size (L × W × H) Approx. 1522 × 560 × 1222mm
Package Size (L × W × H) Approx. 1330 × 960 × 1520mm
Package Weight Approx. 174kg
The height of the channel can be customized according to the product
Original: $3,899.00
-70%$3,899.00
$1,169.70Description
Parameter
Model ZS-MD210
Power Supply AC220V ±10%, 50Hz/60Hz
Rated Power 0.15KW
Weighing Range 1g – 1500g
Accuracy ±0.2g
Minimum Scale 0.1g
Conveying Speed 30–100m/min
Max Throughput 160 pcs/min
Applicable Product Size ≤300mm (L) × 200mm (W)
Conveyor Size 400mm (L) × 210mm (W)
Rejection Type Push / Lever / Flap / Air Blower / Belt Sinking (Customizable)
Weighing Technology EMFR Load Cell
Throughput Direction Left to Right (facing control panel)
Air Supply 0.6–1Mpa
Air Connector Size Φ8mm
Body Material SUS304 Stainless Steel
Working Environment Temp: -30°C to 40°C; Humidity: 30% to 95%
Machine Size (L × W × H) Approx. 1522 × 560 × 1222mm
Package Size (L × W × H) Approx. 1330 × 960 × 1520mm
Package Weight Approx. 174kg
The height of the channel can be customized according to the product
