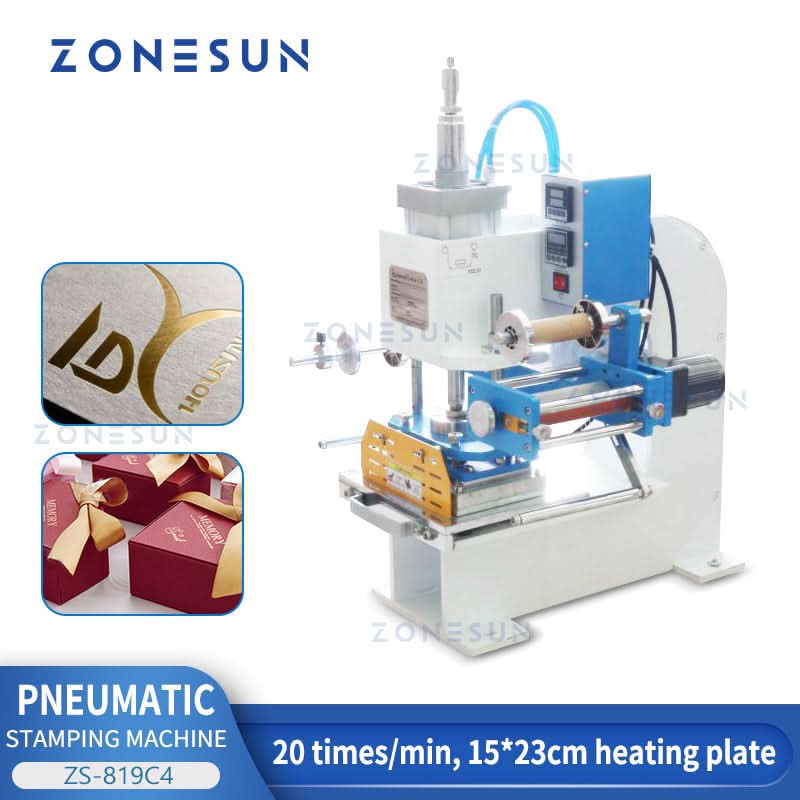

Parameter

Model	ZS-819C4
Power Supply	220V-50HZ
Power	700W
Temperature	Max 350℃
Capacity	20 times/min
Table Size	220×280mm
Heating Plate Size	150×230mm
Printing Center Distance	300mm
Adjustable Height	65mm
Net Weight	93.5KG
Gross Weight	106KG
Size	530×600×800mm
Package Size	600×670×920mm



Application

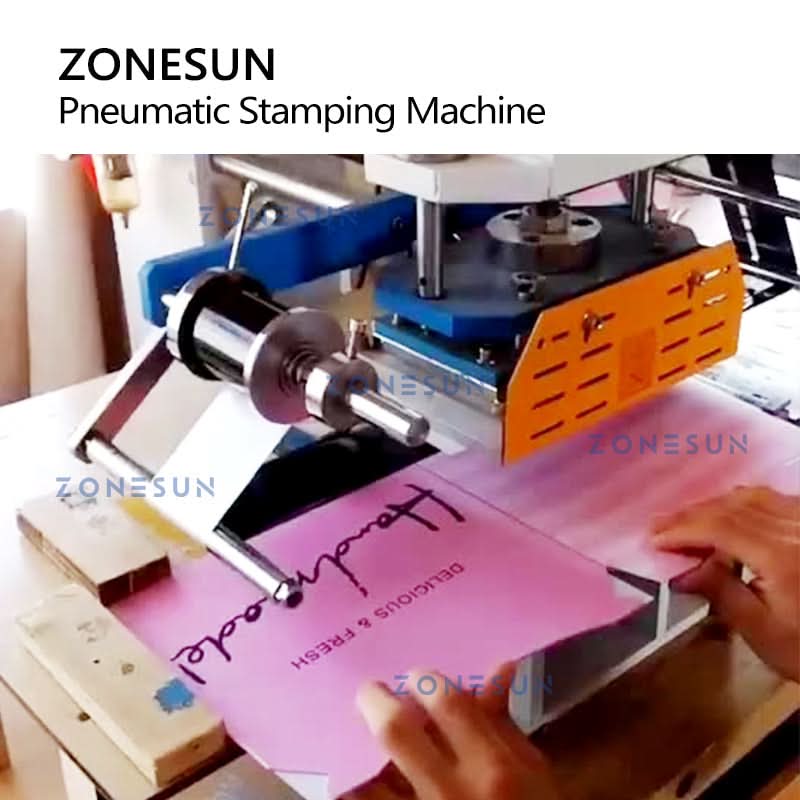

1. It is used for bronzing, indentation and branding of leather products, rubber products, plastic products, paper and other surfaces.
2. For leather with an uneven surface, it can only be used for hot stamping, not for bronzing paper.

Note

This link is for the machine, custom copper mold and letter mold need to purchase separately.



01 CONTROL PANEL
Digital display, easy learning, with thermostat and counter

02 AUTO-ROLLER
Labor saving and efficient, less waste of the foil paper

03 FOIL SET UP

1. The route is shown in the figure

2. Make sure the glossy surface faces upwards

3. A 1-cm gap between the foil and the die

ADJUSTMENT
Adjust the 4 nuts and keep a balance

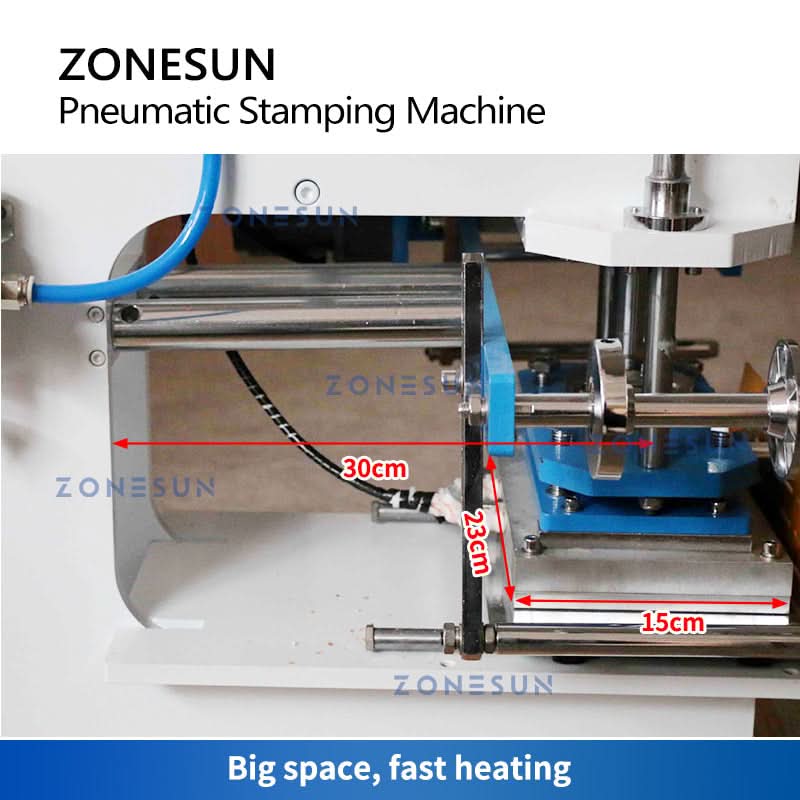

WORKING SPACE
Big space (30cm/22cm/15cm), fast heating, suitable for products like cake boxes
