The ZS-AFC7-1 is a compact liquid filling capping machine designed for small bottle filler applications like eye drops and essential oil bottling. Featuring a high-precision ceramic pump filler, it ensures precision dosing with stable performance. Ideal for pharmaceutical filling equipment, cosmetics, and lab-scale filling line needs, this Zonesun liquid filler delivers reliable, fast, and bottle filling automation in one system—your trusted eye drop packaging machine and more.

PARAMETER
Model: ZS-AFC7-1
Voltage: 220V/110V 50-60Hz
Power: 1.5kW
Production Speed: 20-25 Bottles/min
Filling Range: 5-30 ml
Filling Pump: Ceramic Pump
Filling Accuracy: ±1%
Suitable Bottle Size: Customizable
Machine Size: 1635*1307*1466 mm
Package Size:

• Main machine: 1300*1050*1200 mm

• Bracket: 770*420*720 mm

• Vibratory bowl: 980*540*580 mm
  Package Weight: 447 KG











CONTROL PANEL
Intuitive interface for easy operation and parameter monitoring. Supports multiple customizable languages.

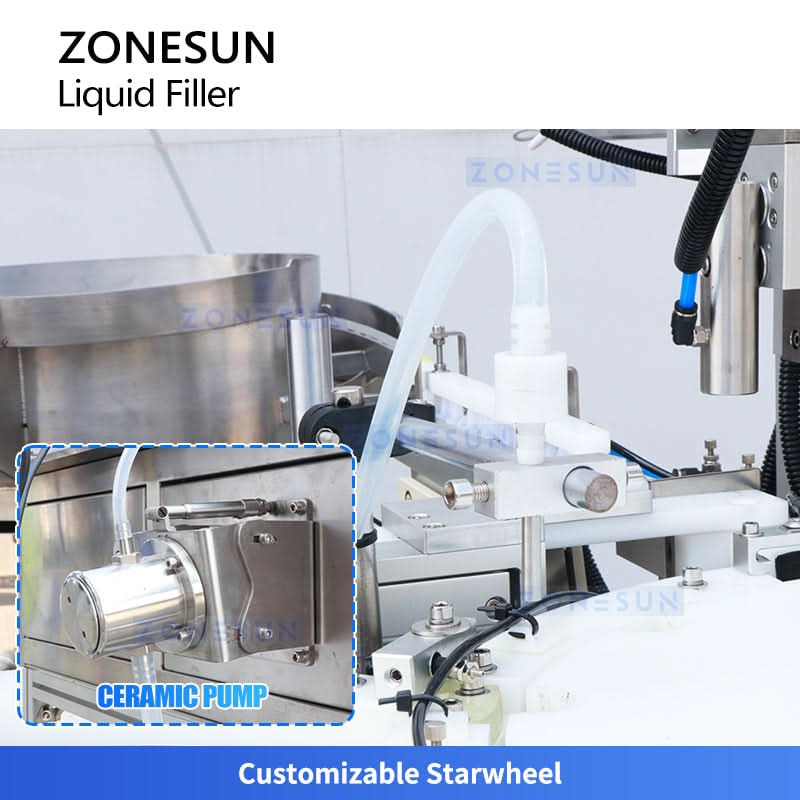

FILLING HEAD
Filling work is controlled by ceramic pump, which has high accuracy. Multiple filling headscan be customized.

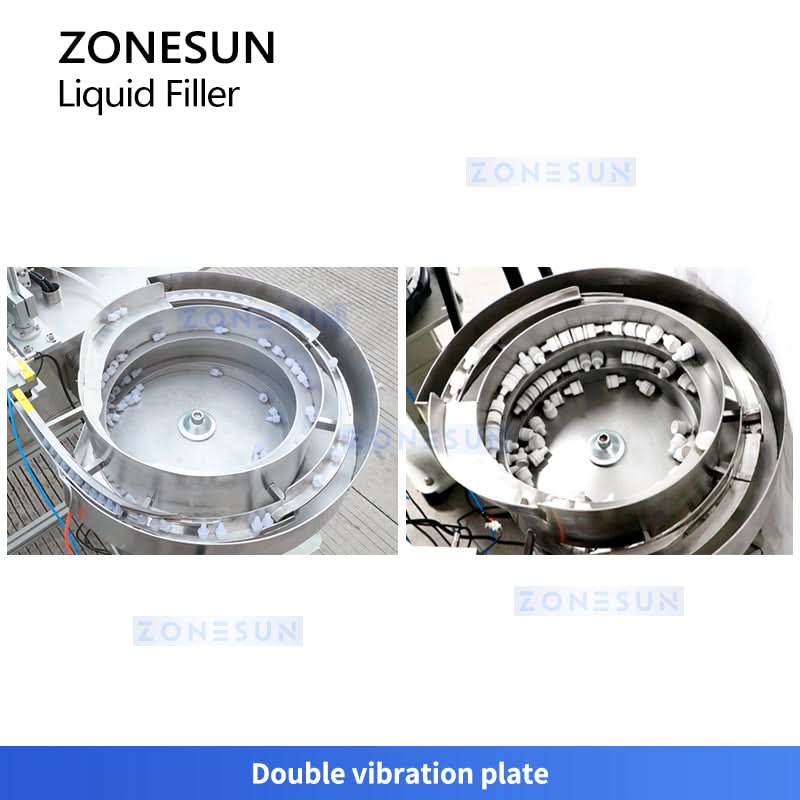

VIBRATORY BOWLS
Can feed inner plugs and outer caps automatically. The vibratory bowls can be customized as your product size.

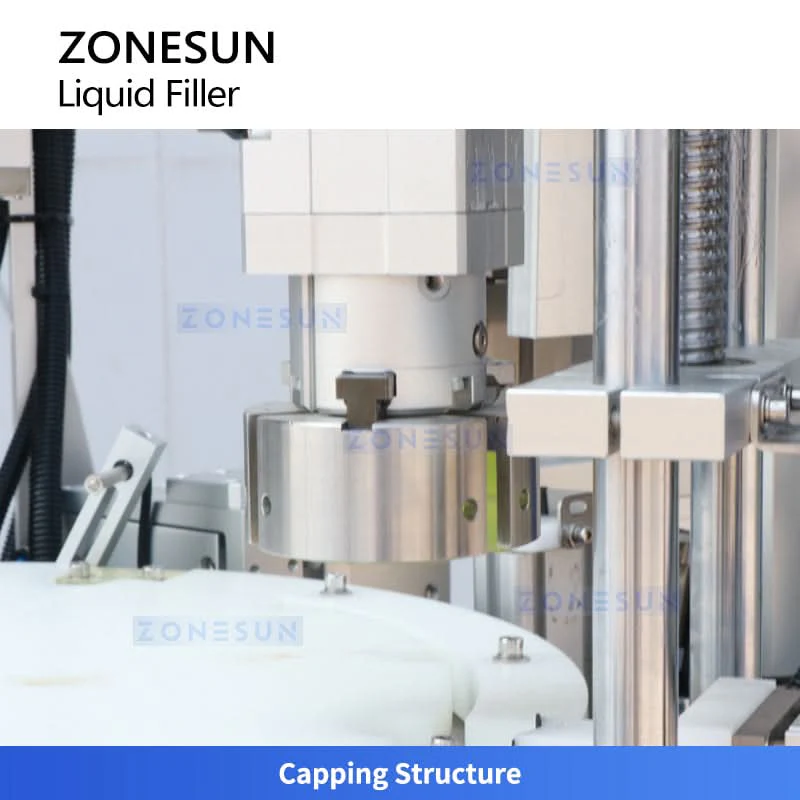

CAPPING STRUCTURE
Controlled by servo motor, it can ensure consistent torque and tightness.

CUSTOMIZABLE STARWHEEL
Capable of filling liquid, feeding inner plugs & outer caps, and capping bottles at one machine. Size of starwheel can be customized.
