ZONESUN ZS-FAL180P9 Automatic Powder Filling, Capping and Labeling Line for Bottles
Parameter Specification
Powder Filling Machine
Voltage 220V / 110V
Power 500W
Filling Speed 10–15 pcs/min (depends on material)
Suitable Bottle Diameter ≤100mm
Applicable Bottle Height Customizable
Package Size Approx. 1350 × 900 × 2260mm
Net Weight / Gross Weight Approx. 229kg / 304kg
Filling Heads 1 head
Filling Material Powder products (e.g., flour)
Application Food, chemical, catering, daily chemical, tobacco, alcohol, medicine

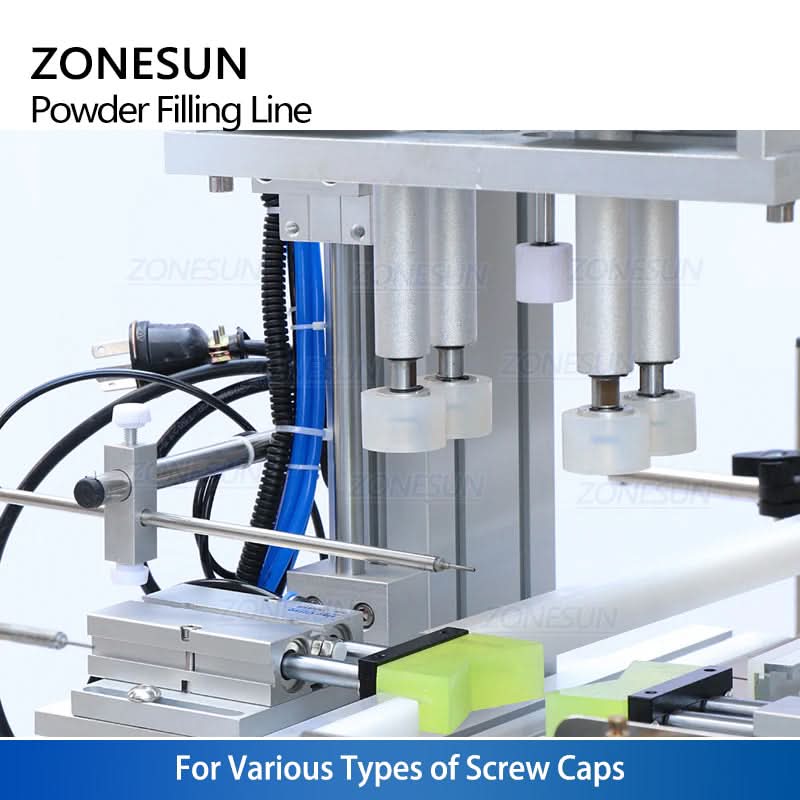

Capping Machine
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (varies by bottle/cap size and shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Air Pressure 0.4–0.6MPa
Machine Size Approx. 1930 × 740 × 1600mm
Package Size Approx. 2000 × 820 × 1760mm
Net Weight / Gross Weight Approx. 113kg / 192.5kg
ZS-TB260 Labeling Machine Specifications
Parameter Specification
Model ZS-TB260 Labeling Machine
Power Supply AC220V 50Hz/60Hz 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0mm
Suitable Bottle Diameter φ30–100mm
Label Size Length: 15–200mm / Height: 15–150mm
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Conveyor Size 1950mm (L) × 100mm (W)
Machine Size Approx. 2000mm (L) × 1400mm (W) × 1300mm (H)
Packing Size Approx. 2120mm × 940mm × 1500mm
Parameter Specification
Powder Filling Machine
Voltage 220V / 110V
Power 500W
Filling Speed 10–15 pcs/min (depends on material)
Suitable Bottle Diameter ≤100mm
Applicable Bottle Height Customizable
Package Size Approx. 1350 × 900 × 2260mm
Net Weight / Gross Weight Approx. 229kg / 304kg
Filling Heads 1 head
Filling Material Powder products (e.g., flour)
Application Food, chemical, catering, daily chemical, tobacco, alcohol, medicine
Capping Machine
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (varies by bottle/cap size and shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Air Pressure 0.4–0.6MPa
Machine Size Approx. 1930 × 740 × 1600mm
Package Size Approx. 2000 × 820 × 1760mm
Net Weight / Gross Weight Approx. 113kg / 192.5kg
ZS-TB260 Labeling Machine Specifications
Parameter Specification
Model ZS-TB260 Labeling Machine
Power Supply AC220V 50Hz/60Hz 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0mm
Suitable Bottle Diameter φ30–100mm
Label Size Length: 15–200mm / Height: 15–150mm
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Conveyor Size 1950mm (L) × 100mm (W)
Machine Size Approx. 2000mm (L) × 1400mm (W) × 1300mm (H)
Packing Size Approx. 2120mm × 940mm × 1500mm
Description
Parameter Specification
Powder Filling Machine
Voltage 220V / 110V
Power 500W
Filling Speed 10–15 pcs/min (depends on material)
Suitable Bottle Diameter ≤100mm
Applicable Bottle Height Customizable
Package Size Approx. 1350 × 900 × 2260mm
Net Weight / Gross Weight Approx. 229kg / 304kg
Filling Heads 1 head
Filling Material Powder products (e.g., flour)
Application Food, chemical, catering, daily chemical, tobacco, alcohol, medicine
Capping Machine
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (varies by bottle/cap size and shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Air Pressure 0.4–0.6MPa
Machine Size Approx. 1930 × 740 × 1600mm
Package Size Approx. 2000 × 820 × 1760mm
Net Weight / Gross Weight Approx. 113kg / 192.5kg
ZS-TB260 Labeling Machine Specifications
Parameter Specification
Model ZS-TB260 Labeling Machine
Power Supply AC220V 50Hz/60Hz 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0mm
Suitable Bottle Diameter φ30–100mm
Label Size Length: 15–200mm / Height: 15–150mm
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Conveyor Size 1950mm (L) × 100mm (W)
Machine Size Approx. 2000mm (L) × 1400mm (W) × 1300mm (H)
Packing Size Approx. 2120mm × 940mm × 1500mm
