ZONESUN ZS-FKR4T Automatic Heat Sealing Machine for High-Speed Bottle Packaging

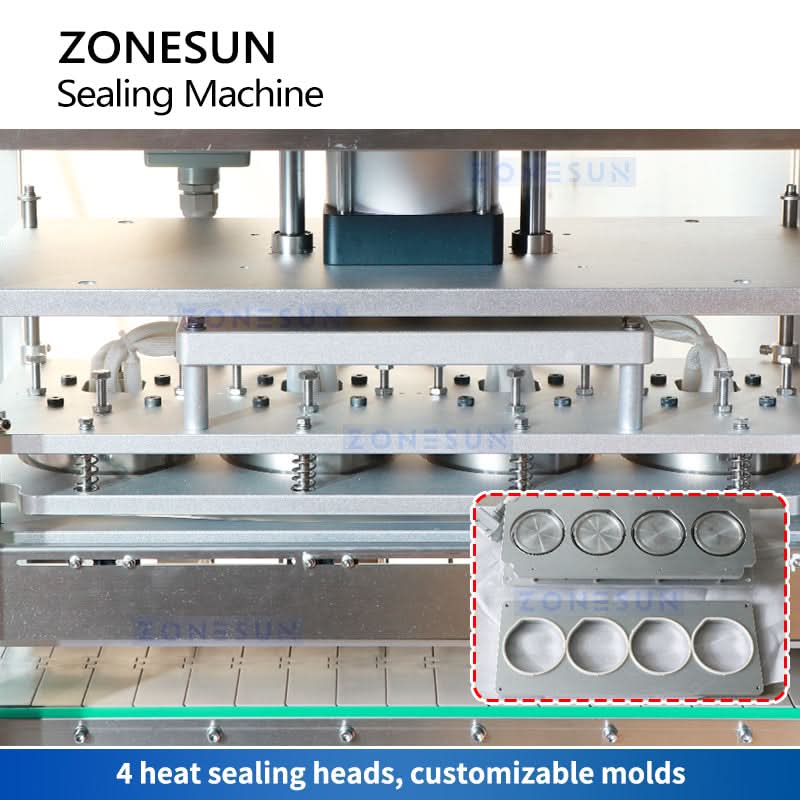

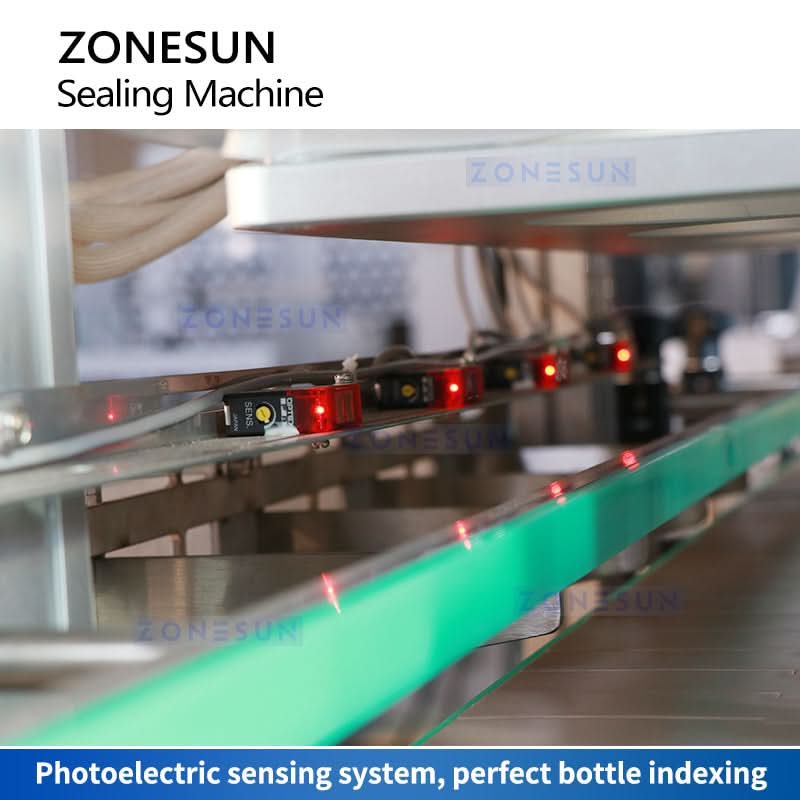

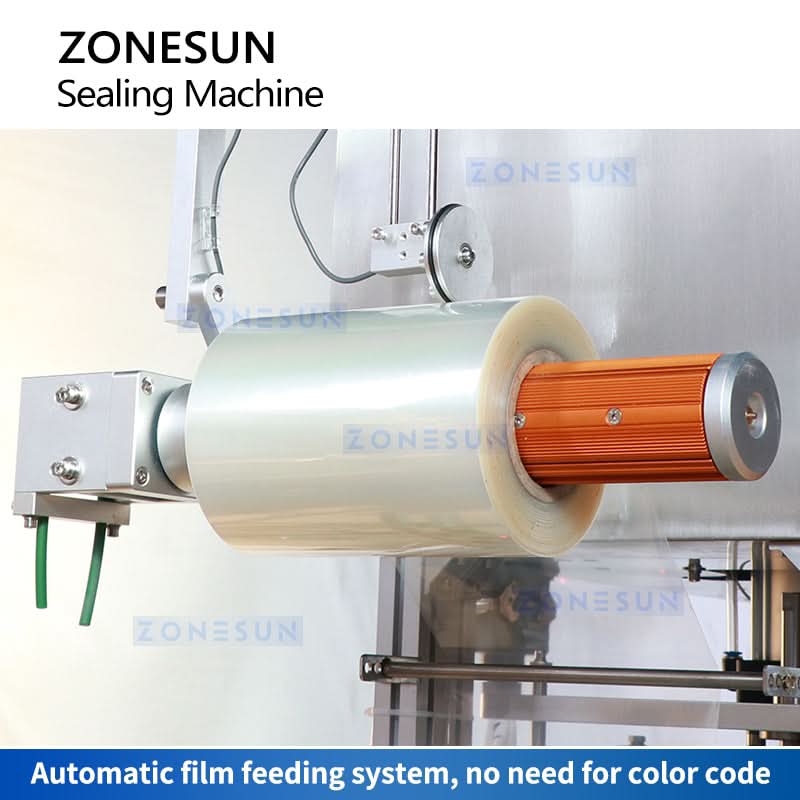

Effortlessly seal your products with the Automatic Heat Sealing Machine. This innovative machine utilizes a top film roll and bottom conveyor belt to efficiently package your bottles. The machine employs an electric eye and stopper for precise bottle indexing, ensuring accurate sealing. Four sealing heads descend to apply heat and pressure, creating a secure seal on your bottles. After sealing, the machine automatically ejects the sealed bottles and rewinds the used film onto another roll.
Specification
Model ZS-FKR4T
Power Supply 110/220V, 50/60Hz, 0.5–1kW
Sealing Head Quantity 1 / 2 / 3 / 4 heads (based on configuration)
Working Speed 600–800 / 900–1200 / 1200–1600 / 1400–1800 bottles/hour
Heating Temperature Approx. 0–300°C
Sealing Diameter 50–250mm (round or square; customizable)
Suitable Film Size 2–3mm larger than bottle mouth
Applicable Film Material PP, PE, PET, PS, Aluminum foil
Air Pressure Requirement 4–8 kg/cm²
Machine Dimensions Approx. 2400 × 870 × 1700 mm
Packing Dimensions Approx. 2450 × 830 × 2040 mm
Package Weight Approx. 450 kg
Effortlessly seal your products with the Automatic Heat Sealing Machine. This innovative machine utilizes a top film roll and bottom conveyor belt to efficiently package your bottles. The machine employs an electric eye and stopper for precise bottle indexing, ensuring accurate sealing. Four sealing heads descend to apply heat and pressure, creating a secure seal on your bottles. After sealing, the machine automatically ejects the sealed bottles and rewinds the used film onto another roll.
Specification
Model ZS-FKR4T
Power Supply 110/220V, 50/60Hz, 0.5–1kW
Sealing Head Quantity 1 / 2 / 3 / 4 heads (based on configuration)
Working Speed 600–800 / 900–1200 / 1200–1600 / 1400–1800 bottles/hour
Heating Temperature Approx. 0–300°C
Sealing Diameter 50–250mm (round or square; customizable)
Suitable Film Size 2–3mm larger than bottle mouth
Applicable Film Material PP, PE, PET, PS, Aluminum foil
Air Pressure Requirement 4–8 kg/cm²
Machine Dimensions Approx. 2400 × 870 × 1700 mm
Packing Dimensions Approx. 2450 × 830 × 2040 mm
Package Weight Approx. 450 kg
Description
Effortlessly seal your products with the Automatic Heat Sealing Machine. This innovative machine utilizes a top film roll and bottom conveyor belt to efficiently package your bottles. The machine employs an electric eye and stopper for precise bottle indexing, ensuring accurate sealing. Four sealing heads descend to apply heat and pressure, creating a secure seal on your bottles. After sealing, the machine automatically ejects the sealed bottles and rewinds the used film onto another roll.
Specification
Model ZS-FKR4T
Power Supply 110/220V, 50/60Hz, 0.5–1kW
Sealing Head Quantity 1 / 2 / 3 / 4 heads (based on configuration)
Working Speed 600–800 / 900–1200 / 1200–1600 / 1400–1800 bottles/hour
Heating Temperature Approx. 0–300°C
Sealing Diameter 50–250mm (round or square; customizable)
Suitable Film Size 2–3mm larger than bottle mouth
Applicable Film Material PP, PE, PET, PS, Aluminum foil
Air Pressure Requirement 4–8 kg/cm²
Machine Dimensions Approx. 2400 × 870 × 1700 mm
Packing Dimensions Approx. 2450 × 830 × 2040 mm
Package Weight Approx. 450 kg
