Zonesun ZS-FS04 Integrated Sauce Packaging Machine
This high-speed Vertical Form Fill Seal (VFFS) packaging machine is engineered for precision and efficiency. Featuring a servo-driven rotor pump filling system, it ensures accurate dispensing of liquids and pastes. The integrated inkjet printer allows for clear date coding directly onto the packaging film. Designed for dual-lane operation with a back seal, this machine achieves a production capacity of up to 6000 packs per hour. Ideal for businesses seeking reliable, high-volume packaging solutions.
PARAMETER
Machine model: ZS-FS04
Power Supply: 380V/220V/110V 4.5KW
Working Speed: About 40-50pcs/min*2 (depending on filling materials and sachet size)
Filling Range: 1-40ml (customized)
Filling Accuracy: ±1%
Filling Lanes: 2 Lanes (customized)
Filling Pump: Servo Rotor Pump
Sachet Length: 40-170mm
Sachet Width: 16mm-67mm
Sealing Type: 3-side/back-side sealing
Easy-tear Design: Dot-shape/V-shaped (customized)
Hopper Capacity: 30L
Air Supply: ≥0.6Mpa 0.6m³/min
Machine Material: The whole machine is SUS304, the part in contact with materials is SUS316
Machine Size: About 1100*1800*2350mm/43.3*70.9*92.5 inch
The parameters like filling range can be set directly on panel. Language of panel can be customized.

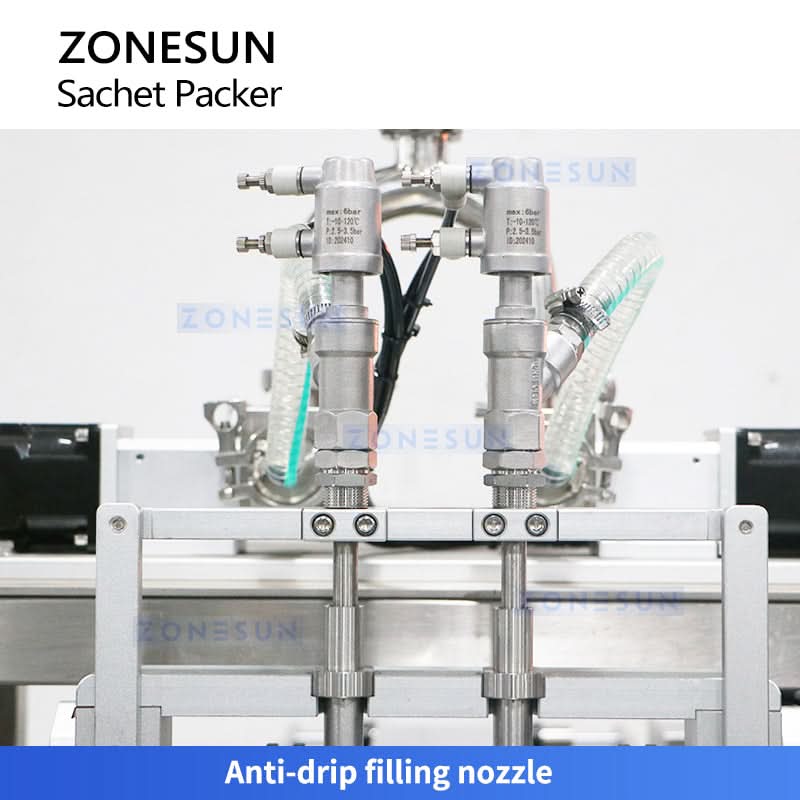

Driven by servo rotor pump, it can be used for filling viscous liquid or paste. Filling range can be customized.

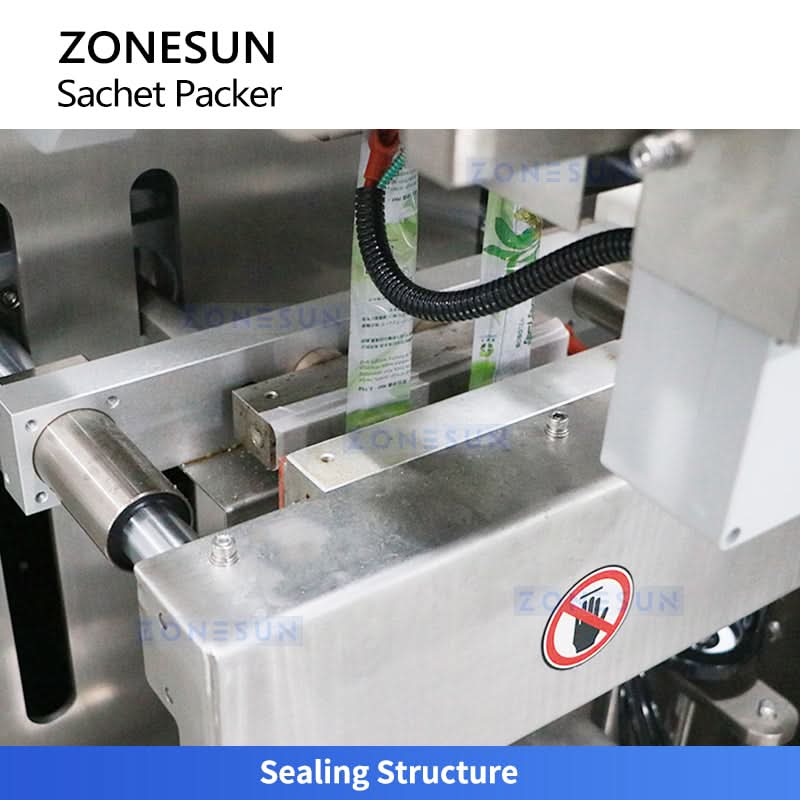

The sealing temperature and sealing length can be adjusted as needed.

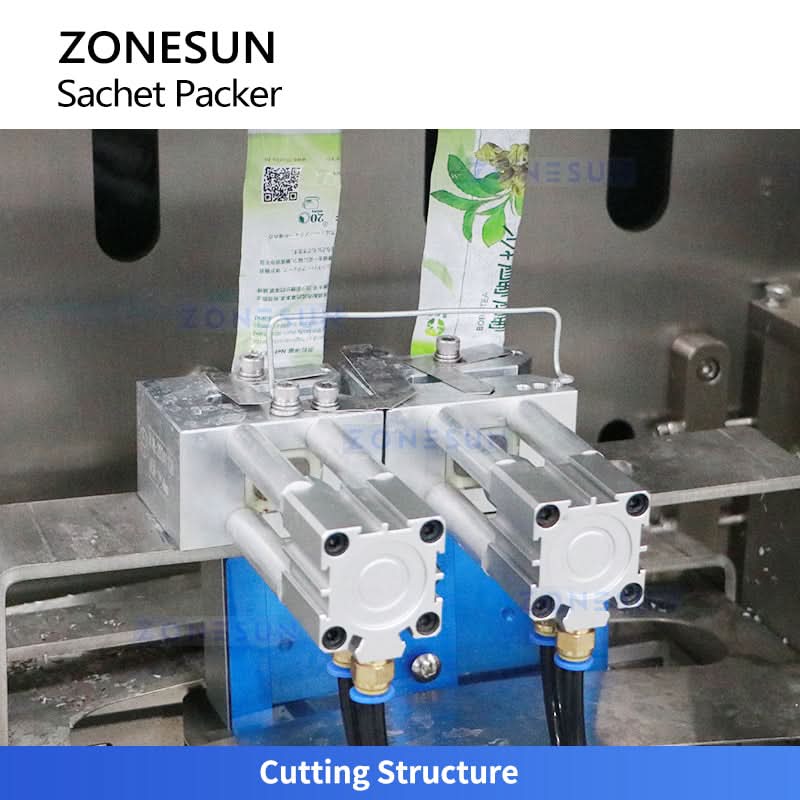

Can be customized for different kinds of easy-tear design. Please contact us if you need it.
Can print batch, production date, QR code, barcode on films automatically
