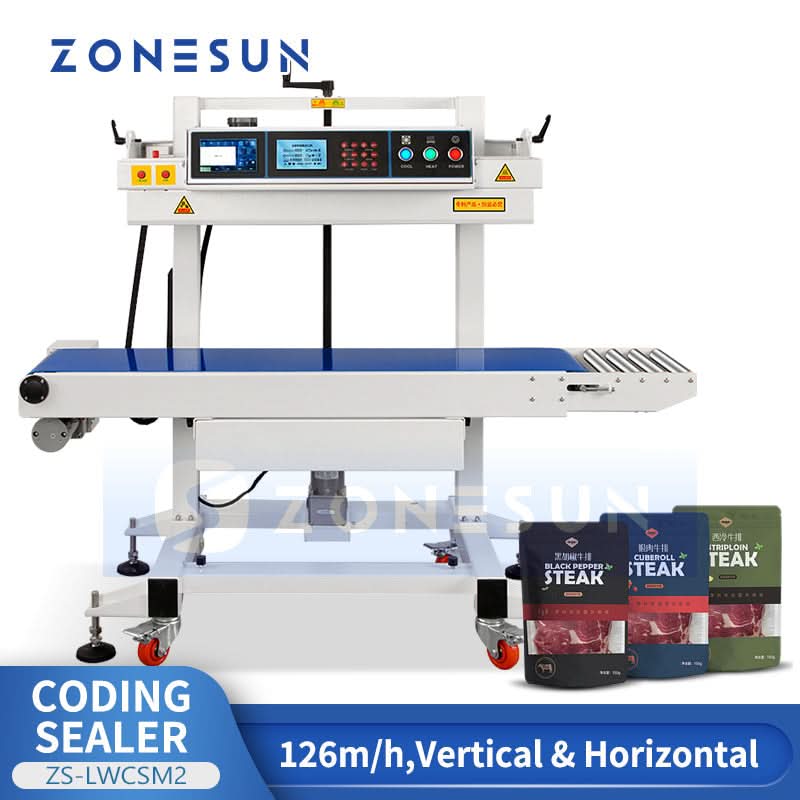

Zonesun ZS-LWCSM2 Vertical and Horizontal Continuous Bag Sealing Machine
Introducing our versatile vertical and horizontal continuous band sealer, ideal for coding and sealing all types of bags. The machine features high definition inkjet printing and has dual heating groups for reliable sealing. The seal height can be adjusted according to the product, ensuring stable and efficient performance for all your packaging needs.
Parameter Specification
Model ZS-LWCSM2
Power Supply 220V / 50–60Hz
Power 1700W
Conveyor Table Motor 24V / 120W / 18K
Conveyor Table Height 350–900 mm (adjustable)
Sealing Speed 0–21 m/min
Sealing Width 15 mm
Temperature Control Range 0–280°C
Max Packaging Bag Size 600 × 400 × 15 mm
Sealing Belt Size 1450 × 18 × 0.22 mm
Conveyor Belt Size 1450 × 225 mm
Main Chassis Motor 60BYG2100-50A
Toothed Belt M5 × 560 × 670 mm
Heating Tube Specs 500W / 150 × 12 mm × 4 pcs
Load-Bearing Capacity ≤15 kg
Machine Dimensions 1390 × 600 × 1200 mm
Total Weight 90 kg
Introducing our versatile vertical and horizontal continuous band sealer, ideal for coding and sealing all types of bags. The machine features high definition inkjet printing and has dual heating groups for reliable sealing. The seal height can be adjusted according to the product, ensuring stable and efficient performance for all your packaging needs.
Parameter Specification
Model ZS-LWCSM2
Power Supply 220V / 50–60Hz
Power 1700W
Conveyor Table Motor 24V / 120W / 18K
Conveyor Table Height 350–900 mm (adjustable)
Sealing Speed 0–21 m/min
Sealing Width 15 mm
Temperature Control Range 0–280°C
Max Packaging Bag Size 600 × 400 × 15 mm
Sealing Belt Size 1450 × 18 × 0.22 mm
Conveyor Belt Size 1450 × 225 mm
Main Chassis Motor 60BYG2100-50A
Toothed Belt M5 × 560 × 670 mm
Heating Tube Specs 500W / 150 × 12 mm × 4 pcs
Load-Bearing Capacity ≤15 kg
Machine Dimensions 1390 × 600 × 1200 mm
Total Weight 90 kg
Description
Introducing our versatile vertical and horizontal continuous band sealer, ideal for coding and sealing all types of bags. The machine features high definition inkjet printing and has dual heating groups for reliable sealing. The seal height can be adjusted according to the product, ensuring stable and efficient performance for all your packaging needs.
Parameter Specification
Model ZS-LWCSM2
Power Supply 220V / 50–60Hz
Power 1700W
Conveyor Table Motor 24V / 120W / 18K
Conveyor Table Height 350–900 mm (adjustable)
Sealing Speed 0–21 m/min
Sealing Width 15 mm
Temperature Control Range 0–280°C
Max Packaging Bag Size 600 × 400 × 15 mm
Sealing Belt Size 1450 × 18 × 0.22 mm
Conveyor Belt Size 1450 × 225 mm
Main Chassis Motor 60BYG2100-50A
Toothed Belt M5 × 560 × 670 mm
Heating Tube Specs 500W / 150 × 12 mm × 4 pcs
Load-Bearing Capacity ≤15 kg
Machine Dimensions 1390 × 600 × 1200 mm
Total Weight 90 kg
