Zonesun ZS-QYY1 Pneumatic Pad Printing Machine for Plastic & Metal
Introducing our pneumatic pad printing machine, designed for efficient printing on a variety of materials, including plastic, metal, paper, cups, and boxes. Perfect for applying manufacturer marks, expiration dates, batch numbers, logos, and emblems, this machine is energy-efficient and environmentally friendly. With low noise levels and a scent-free printing process, it offers a compact and user-friendly design. Experience clear prints and stable operation, making it ideal for both small and large-scale production.
Model ZS-QYY1
Size Options 100×250, 100×215, 85×175 mm
Power 50W
Power Supply AC220V, 50/60Hz
Working Air Pressure 4–6 bar
Operation Speed 2200 times/hour
Steel Sheet Size 100×250 mm

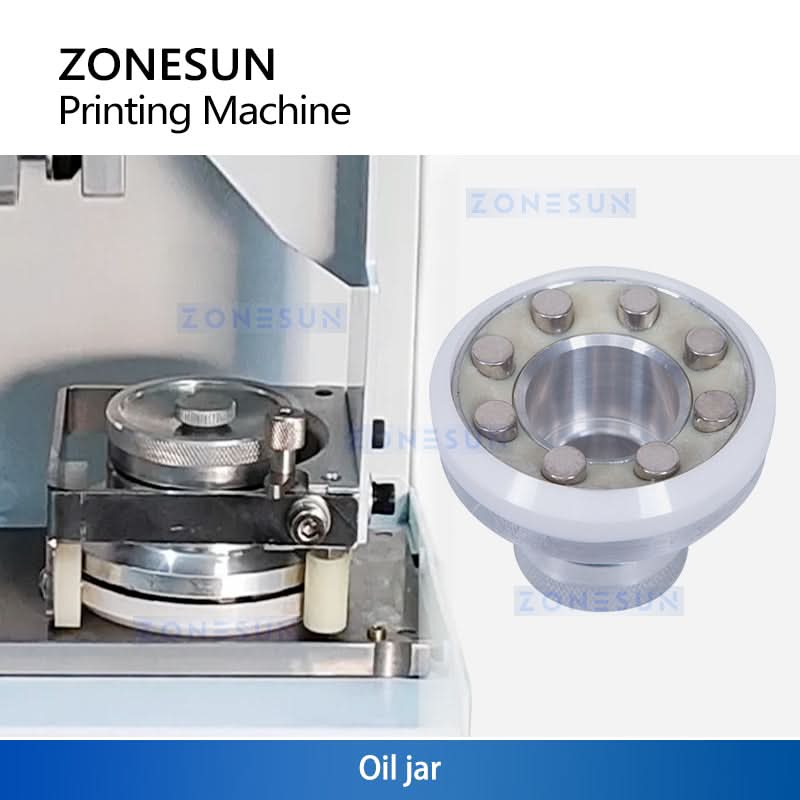

Oil Tank Diameter 90 mm
Overall Dimensions 600×270×570 mm
Printing Area 80×80 mm
Stroke (Fwd/Back) 125 mm
Net Weight 35 kg
Introducing our pneumatic pad printing machine, designed for efficient printing on a variety of materials, including plastic, metal, paper, cups, and boxes. Perfect for applying manufacturer marks, expiration dates, batch numbers, logos, and emblems, this machine is energy-efficient and environmentally friendly. With low noise levels and a scent-free printing process, it offers a compact and user-friendly design. Experience clear prints and stable operation, making it ideal for both small and large-scale production.
Model ZS-QYY1
Size Options 100×250, 100×215, 85×175 mm
Power 50W
Power Supply AC220V, 50/60Hz
Working Air Pressure 4–6 bar
Operation Speed 2200 times/hour
Steel Sheet Size 100×250 mm
Oil Tank Diameter 90 mm
Overall Dimensions 600×270×570 mm
Printing Area 80×80 mm
Stroke (Fwd/Back) 125 mm
Net Weight 35 kg
Description
Introducing our pneumatic pad printing machine, designed for efficient printing on a variety of materials, including plastic, metal, paper, cups, and boxes. Perfect for applying manufacturer marks, expiration dates, batch numbers, logos, and emblems, this machine is energy-efficient and environmentally friendly. With low noise levels and a scent-free printing process, it offers a compact and user-friendly design. Experience clear prints and stable operation, making it ideal for both small and large-scale production.
Model ZS-QYY1
Size Options 100×250, 100×215, 85×175 mm
Power 50W
Power Supply AC220V, 50/60Hz
Working Air Pressure 4–6 bar
Operation Speed 2200 times/hour
Steel Sheet Size 100×250 mm
Oil Tank Diameter 90 mm
Overall Dimensions 600×270×570 mm
Printing Area 80×80 mm
Stroke (Fwd/Back) 125 mm
Net Weight 35 kg
