Zonesun ZS-RY4 4-Color Wide Format Flexo Printing Machine

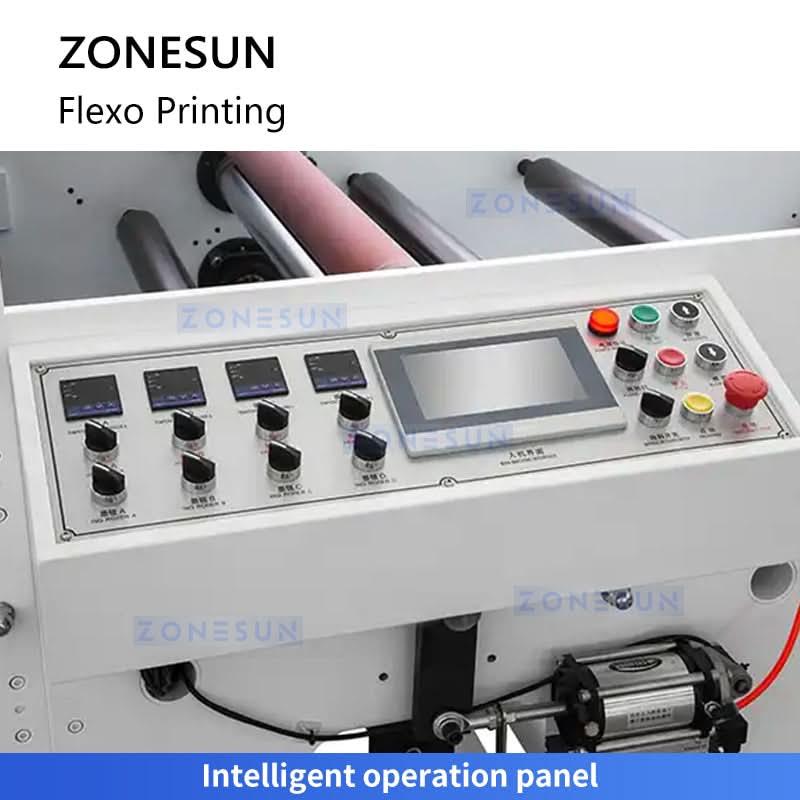

Introducing our most advanced flexographic printing machine designed for efficient production. This professional equipment adopts a drum paper feeding system to seamlessly integrate printing, polishing, automatic infrared drying, laminating, die-cutting and winding in one complete process. It is suitable for cutting a variety of popular paper types and PE coated paper, suitable for cup paper, paper box, medical packaging, wine packaging and other environmentally friendly products. The machine has advanced features such as microcomputer control interface, servo positioning, and centralized oil lubrication and overload protection to ensure smooth operation, precise positioning and reliable performance. All key components are imported and finely processed to obtain the best quality.
Parameter
Model ZS-RY4
Voltage 380V ± 10%
Total Power 36 kW
Total Air Pressure 0.6 MPa
Printing Speed 50–60 m/min
Feed Width 860 mm
Unwinding Diameter 1300 mm
Rewinding Diameter 1300 mm
Printing Size 180–380 mm
Registration Accuracy ± 0.15 mm
Weight 4500 kg
Dimensions (L×W×H) 4500 × 1800 × 2250 mm
Introducing our most advanced flexographic printing machine designed for efficient production. This professional equipment adopts a drum paper feeding system to seamlessly integrate printing, polishing, automatic infrared drying, laminating, die-cutting and winding in one complete process. It is suitable for cutting a variety of popular paper types and PE coated paper, suitable for cup paper, paper box, medical packaging, wine packaging and other environmentally friendly products. The machine has advanced features such as microcomputer control interface, servo positioning, and centralized oil lubrication and overload protection to ensure smooth operation, precise positioning and reliable performance. All key components are imported and finely processed to obtain the best quality.
Parameter
Model ZS-RY4
Voltage 380V ± 10%
Total Power 36 kW
Total Air Pressure 0.6 MPa
Printing Speed 50–60 m/min
Feed Width 860 mm
Unwinding Diameter 1300 mm
Rewinding Diameter 1300 mm
Printing Size 180–380 mm
Registration Accuracy ± 0.15 mm
Weight 4500 kg
Dimensions (L×W×H) 4500 × 1800 × 2250 mm
Original: $54,999.00
-70%$54,999.00
$16,499.70Description
Introducing our most advanced flexographic printing machine designed for efficient production. This professional equipment adopts a drum paper feeding system to seamlessly integrate printing, polishing, automatic infrared drying, laminating, die-cutting and winding in one complete process. It is suitable for cutting a variety of popular paper types and PE coated paper, suitable for cup paper, paper box, medical packaging, wine packaging and other environmentally friendly products. The machine has advanced features such as microcomputer control interface, servo positioning, and centralized oil lubrication and overload protection to ensure smooth operation, precise positioning and reliable performance. All key components are imported and finely processed to obtain the best quality.
Parameter
Model ZS-RY4
Voltage 380V ± 10%
Total Power 36 kW
Total Air Pressure 0.6 MPa
Printing Speed 50–60 m/min
Feed Width 860 mm
Unwinding Diameter 1300 mm
Rewinding Diameter 1300 mm
Printing Size 180–380 mm
Registration Accuracy ± 0.15 mm
Weight 4500 kg
Dimensions (L×W×H) 4500 × 1800 × 2250 mm
