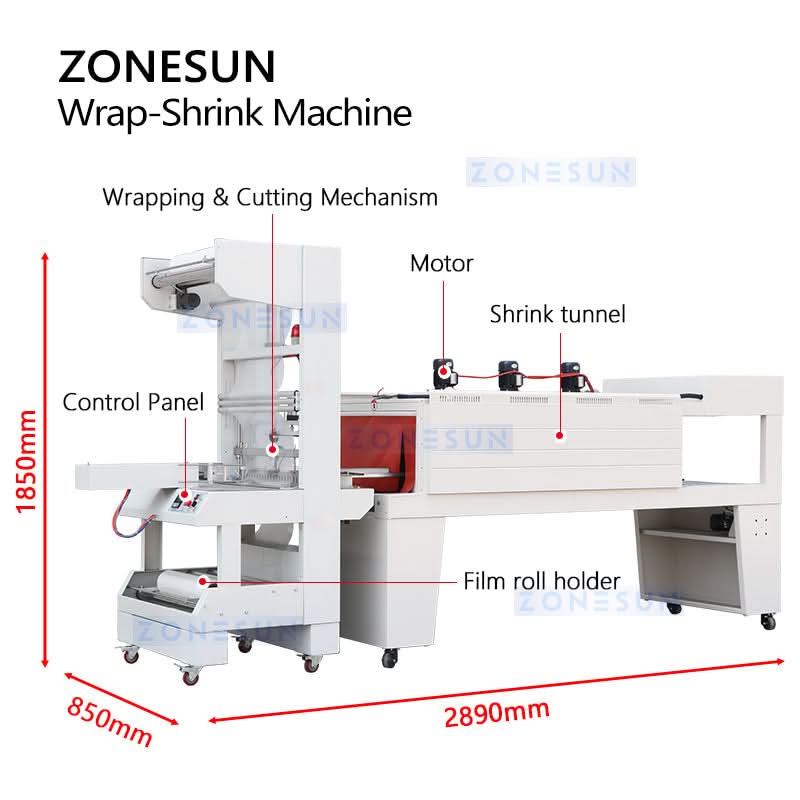

ZONESUN ZS-SPL5 Automatic Sleeve Wrapping and Shrinking Machine
The ZONESUN ZS-SPL5 is a fully automatic sleeve wrapping and shrinking machine designed for efficient packaging of bottles, cans, boxes, and other products. With adjustable speed and temperature controls, it ensures precise shrink wrapping tailored to different materials and shapes. The system includes a sleeve wrapper and shrink tunnel, offering seamless film application and heat sealing in one streamlined process. Built for durability and ease of use, it’s ideal for industries such as food, beverage, cosmetics, and chemicals.
Parameter
Model ZS-QZD7040 Sleeve Wrapper Machine
Voltage 220V, 50–60Hz
Power 2.2 kW
Packing Speed 0–8 packs/min
Bottle Size Diameter: ≥60 mm<br>Height: 100–360 mm
Max Package Size 500 × 330 × 360 mm (L × W × H)
Min Package Size 120 × 120 × 100 mm (L × W × H)
Payload 20 kg
Film Roll Width Max 650 mm
Film Thickness 0.03–0.25 mm
Applicable Shrink Film POF / PE / PVC / PP
Machine Size Approx. 1000 × 900 × 1900 mm
Machine Weight Approx. 240 kg
Machine Model ZS-BSP6040 Shrink Tunnel Machine
Voltage 380V, 50–60Hz
Power 20 kW

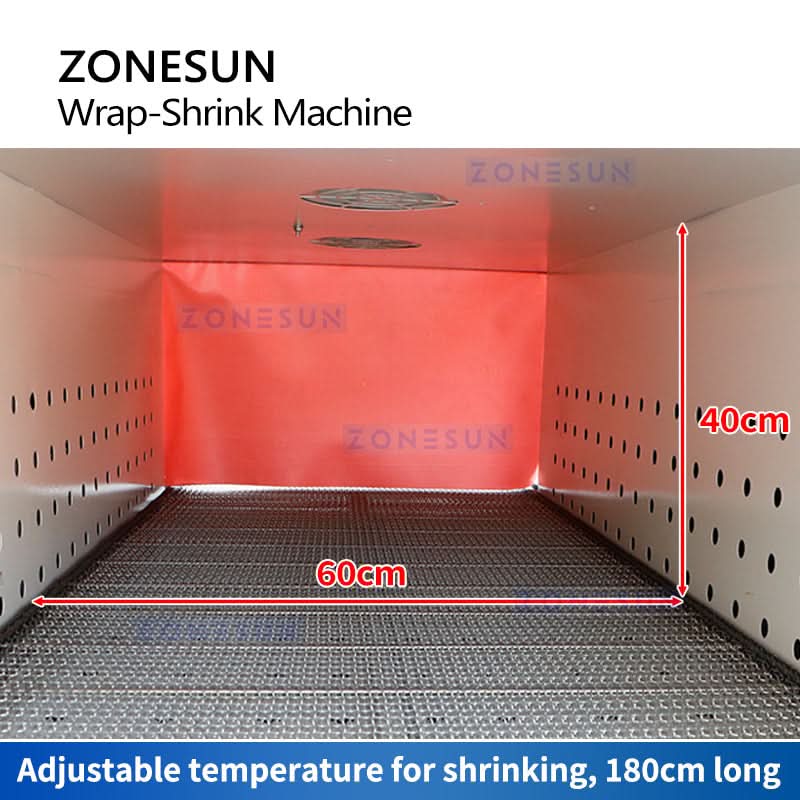

Tunnel Size Approx. 1800 × 600 × 400 mm
Conveying Speed 0–15 m/min
Payload 25 kg
Suitable Film PVC / POF / PE / PP
Machine Size Approx. 1800 × 850 × 1520 mm
Machine Weight Approx. 207 kg
The ZONESUN ZS-SPL5 is a fully automatic sleeve wrapping and shrinking machine designed for efficient packaging of bottles, cans, boxes, and other products. With adjustable speed and temperature controls, it ensures precise shrink wrapping tailored to different materials and shapes. The system includes a sleeve wrapper and shrink tunnel, offering seamless film application and heat sealing in one streamlined process. Built for durability and ease of use, it’s ideal for industries such as food, beverage, cosmetics, and chemicals.
Parameter
Model ZS-QZD7040 Sleeve Wrapper Machine
Voltage 220V, 50–60Hz
Power 2.2 kW
Packing Speed 0–8 packs/min
Bottle Size Diameter: ≥60 mm<br>Height: 100–360 mm
Max Package Size 500 × 330 × 360 mm (L × W × H)
Min Package Size 120 × 120 × 100 mm (L × W × H)
Payload 20 kg
Film Roll Width Max 650 mm
Film Thickness 0.03–0.25 mm
Applicable Shrink Film POF / PE / PVC / PP
Machine Size Approx. 1000 × 900 × 1900 mm
Machine Weight Approx. 240 kg
Machine Model ZS-BSP6040 Shrink Tunnel Machine
Voltage 380V, 50–60Hz
Power 20 kW
Tunnel Size Approx. 1800 × 600 × 400 mm
Conveying Speed 0–15 m/min
Payload 25 kg
Suitable Film PVC / POF / PE / PP
Machine Size Approx. 1800 × 850 × 1520 mm
Machine Weight Approx. 207 kg
Original: $4,920.00
-70%$4,920.00
$1,476.00Description
The ZONESUN ZS-SPL5 is a fully automatic sleeve wrapping and shrinking machine designed for efficient packaging of bottles, cans, boxes, and other products. With adjustable speed and temperature controls, it ensures precise shrink wrapping tailored to different materials and shapes. The system includes a sleeve wrapper and shrink tunnel, offering seamless film application and heat sealing in one streamlined process. Built for durability and ease of use, it’s ideal for industries such as food, beverage, cosmetics, and chemicals.
Parameter
Model ZS-QZD7040 Sleeve Wrapper Machine
Voltage 220V, 50–60Hz
Power 2.2 kW
Packing Speed 0–8 packs/min
Bottle Size Diameter: ≥60 mm<br>Height: 100–360 mm
Max Package Size 500 × 330 × 360 mm (L × W × H)
Min Package Size 120 × 120 × 100 mm (L × W × H)
Payload 20 kg
Film Roll Width Max 650 mm
Film Thickness 0.03–0.25 mm
Applicable Shrink Film POF / PE / PVC / PP
Machine Size Approx. 1000 × 900 × 1900 mm
Machine Weight Approx. 240 kg
Machine Model ZS-BSP6040 Shrink Tunnel Machine
Voltage 380V, 50–60Hz
Power 20 kW
Tunnel Size Approx. 1800 × 600 × 400 mm
Conveying Speed 0–15 m/min
Payload 25 kg
Suitable Film PVC / POF / PE / PP
Machine Size Approx. 1800 × 850 × 1520 mm
Machine Weight Approx. 207 kg
