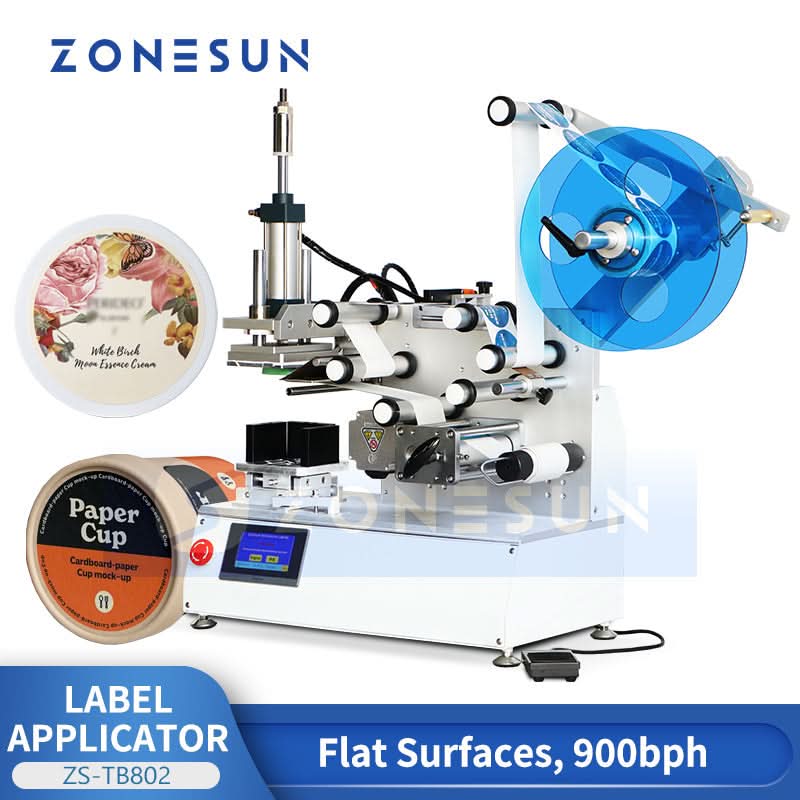

Zonesun ZS-TB802 Semi-Automatic Flat Labeling Machine Top Flat Surface Labeler
DESCRIPTION

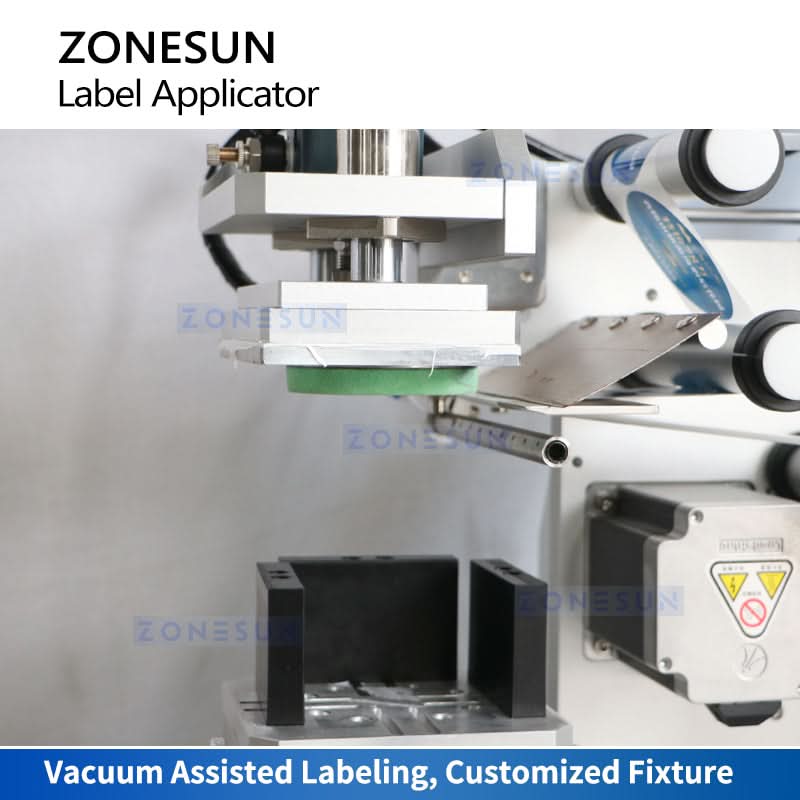

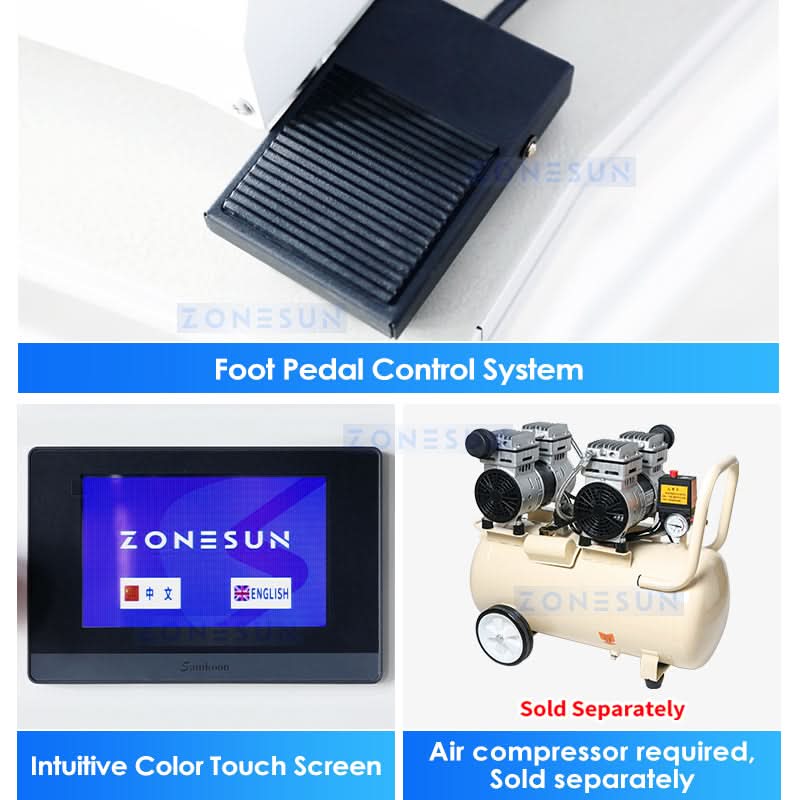

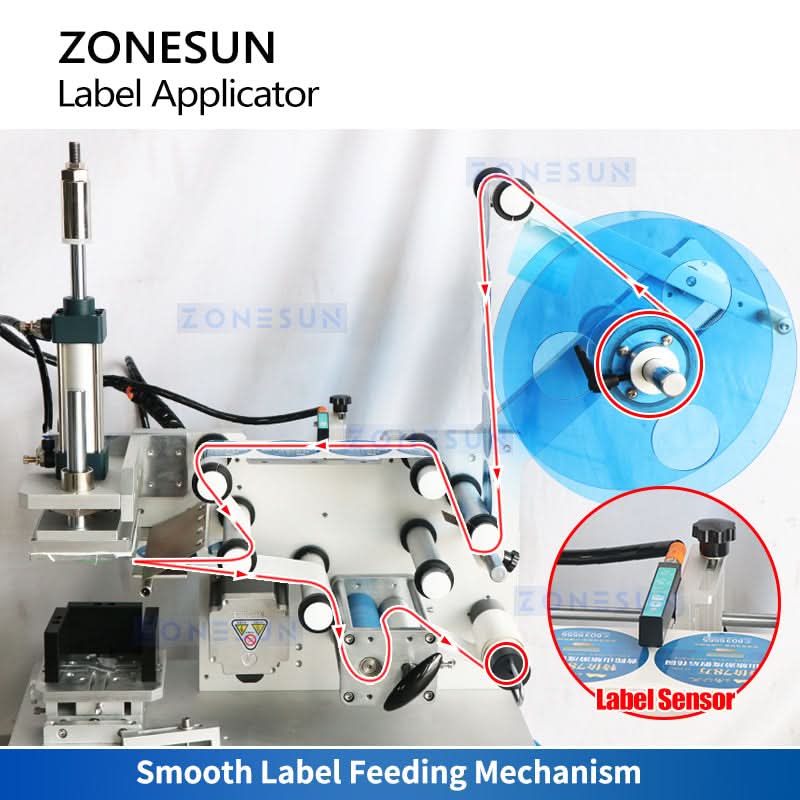

This efficient desktop labeling machine streamlines your flat product labeling process. Simply place your product in the fixture, and with a foot pedal activation, the label is dispensed to the labeling head. Vacuum suction securely holds the label in place, aided by a perforated air vent tube for optimal adhesion. A pneumatic cylinder then precisely applies the label, before retracting to allow easy product removal. All operations are controlled via a user-friendly touchscreen interface. Increase your labeling speed and accuracy with this reliable and easy-to-use machine.
Parameter
Model ZS-TB802
Voltage 110V/220V, 50/60Hz
Labeling Accuracy ±0.5mm
Throughput 15 pieces/minute
Applicable Product Size 20–200mm (L) × 20–150mm (W) × 0.2–120mm (H)
Applicable Label Size Length: 15–150mm; Width (backing paper): 15–100mm
Label Roll Size Inner diameter: φ76mm; Outer diameter: ≤φ300mm
Air Pressure 0.4–0.6Mpa
Machine Size 840mm × 470mm × 840mm (L×W×H)
Net Weight 48kg
Packing Size 920mm × 520mm × 890mm
Gross Weight 78kg
