Our Automatic Square Bottle Wrap Around Labeling Machine revolutionizes your labeling process. Bottles are fed via a conveyor belt to the labeling station. This advanced system first applies labels to three sides of the square bottle. Then, using two specialized brushes, it seamlessly wraps the label around the fourth side, achieving a complete, full-wrap label. With a production capacity of up to 1500 bottles per hour (BPH), this machine significantly boosts your output while maintaining precision and quality.

ZS-TB900 Automatic Labeling Machine Specifications

Technical Parameters:

• Model: ZS-TB900

• Voltage: 110/220V 50-60HZ

• Label Size:

  • Width: 20-200mm

  • Height: 15-160mm

• Bottle Compatibility:

  • Size Range: 20-100mm*30-100mm*60-280mm (LWH, customizable)

• Label Roll:

  • Outer Diameter: Φ350mm

  • Inner Diameter: Φ76mm

• Performance:

  • Accuracy: ±1.0mm

  • Speed: 20-25 bottles/min

• Dimensions & Weight:

  • Machine Size: 3170*1150*1540mm (LWH)

  • Machine Weight: 300kg

  • Package Size: 3240*1350*1740mm

  • Package Weight: 601kg

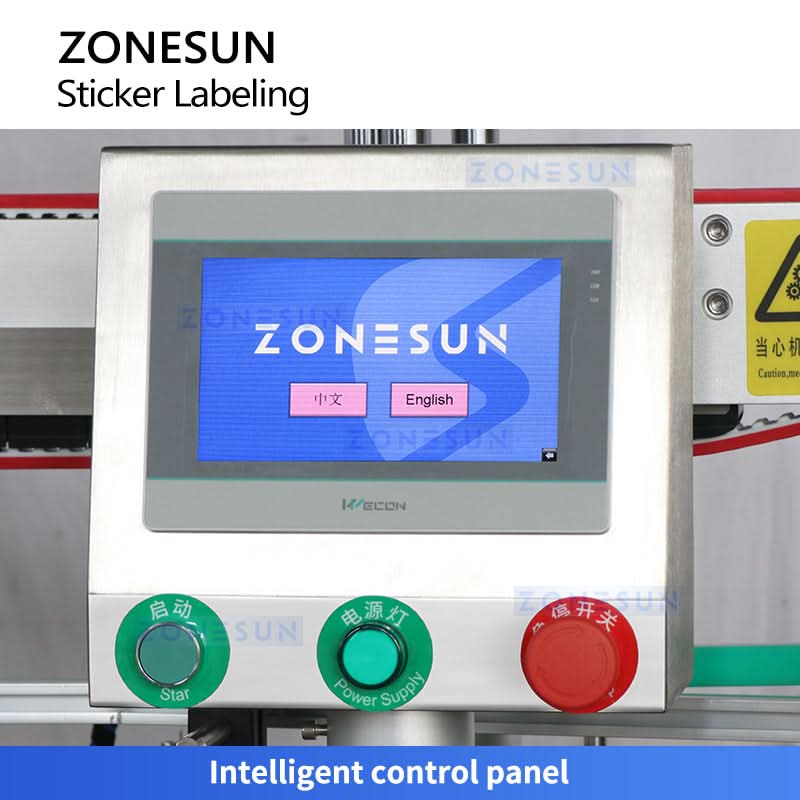

CONTROL PANEL
Customizable interface simplifies machine operation, multi operating languages are customizable.

ELECTRIC EYE
Using for detecting passing by bottles to realize automated production and improves accuracy.

LABELING STRUCTURE
Can be used for three sides and wrap-around labeling of square bottles, top conveyor can ensures smooth labeling work.

SEPARATING WHEEL
The wheel spaces out bottles evenly to ensure machine works stably.

DATE CODER
Optional coding machine can print batch number or production date on self-adhesive stickers to simplify packaging process.
