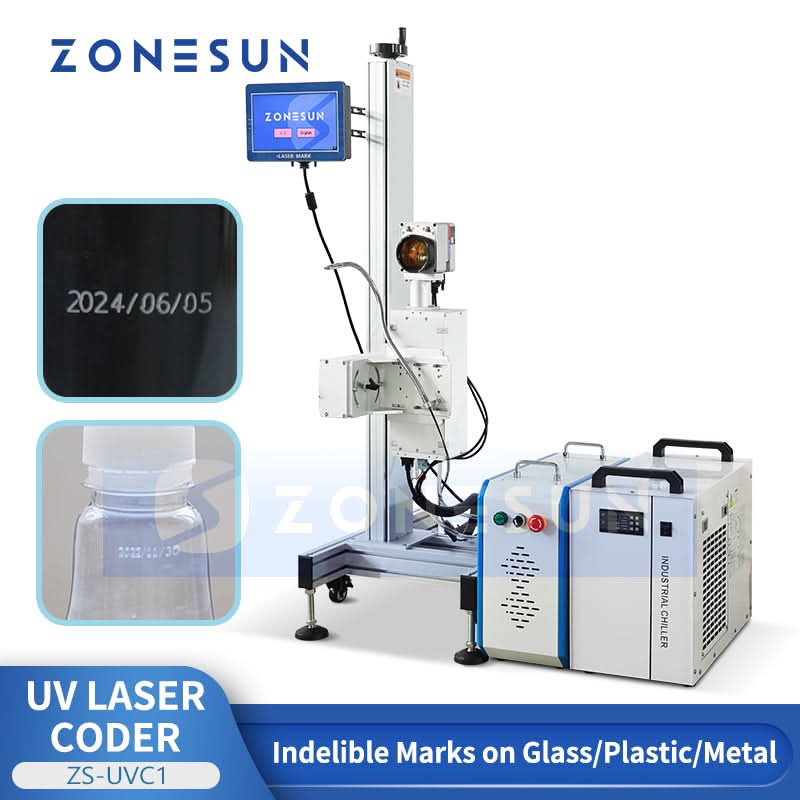

ZONESUN ZS-UVC1 High-Precision UV Laser Coding Machine for Industrial Marking
Achieve flawless product traceability and branding with the ZS-UVC1 UV Laser Coding Machine. Designed for fast, non-contact marking on plastic, metal, glass, ceramic, and coated film, it delivers ultra-fine resolution with line widths as small as 0.0012 mm. The advanced UV technology ensures permanent, high-contrast coding without ink, making it environmentally friendly and maintenance-free. Equipped with a Linux-based touchscreen and multi-language support, it easily integrates into high-speed production lines across industries like cosmetics, electronics, pharmaceuticals, and food.
Specification Details
Model ZS-UVC1
Output Power of laser head : 5W
Machine Power 800W
Laser Wavelength 355nm

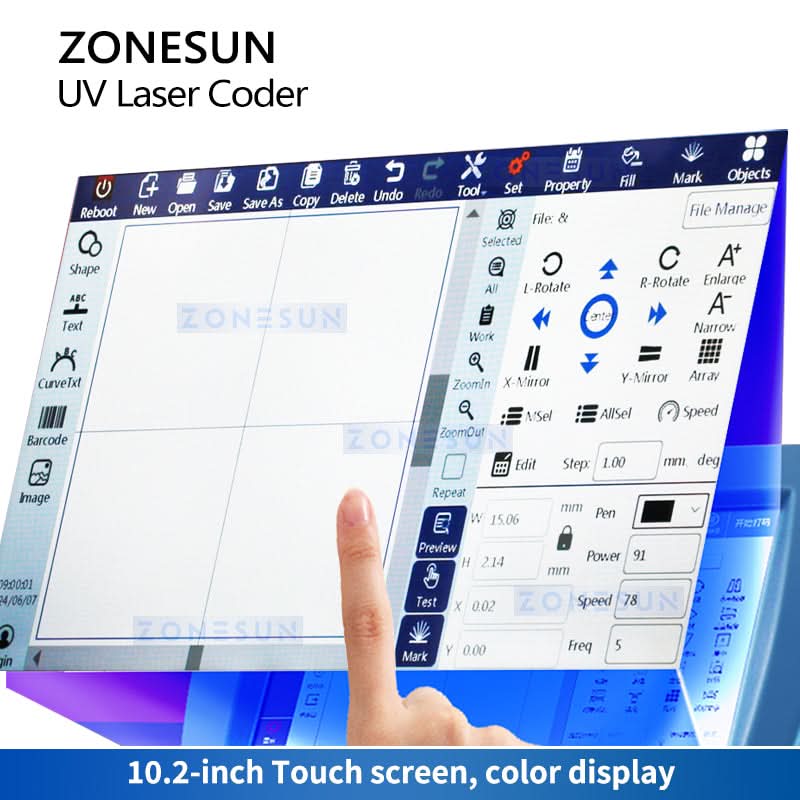

Control System 10.2-inch Touch Screen (Linux OS)
Production Speed 0–130 m/min (varies by material)
Minimum Line Width 0.0012 mm
Marking Range 110 × 110 mm (optional configurations available)
Marking Speed ≥1200 mm/s<br>PVC Tubes: 40 m/min<br>PET Bottles: 20,000 bottles/h<br>Cartons: 35 m/min
Cooling Method Water Cooling
Multi-language Support English, French, Spanish, German, Chinese, Russian, Korean, Arabic, etc.
Suitable Materials Glass, Metal, Plastic, Wood, Leather, Acrylic, Nano, Fabric, Ceramic, Coated Film
Package Size Lens: ~630 × 430 × 210 mm<br>Chiller: ~680 × 410 × 560 mm<br>Host: ~670 × 410 × 560 mm
Package Weight Lens: ~13 kg<br>Chiller: ~24 kg<br>Host: ~13 kg
Achieve flawless product traceability and branding with the ZS-UVC1 UV Laser Coding Machine. Designed for fast, non-contact marking on plastic, metal, glass, ceramic, and coated film, it delivers ultra-fine resolution with line widths as small as 0.0012 mm. The advanced UV technology ensures permanent, high-contrast coding without ink, making it environmentally friendly and maintenance-free. Equipped with a Linux-based touchscreen and multi-language support, it easily integrates into high-speed production lines across industries like cosmetics, electronics, pharmaceuticals, and food.
Specification Details
Model ZS-UVC1
Output Power of laser head : 5W
Machine Power 800W
Laser Wavelength 355nm
Control System 10.2-inch Touch Screen (Linux OS)
Production Speed 0–130 m/min (varies by material)
Minimum Line Width 0.0012 mm
Marking Range 110 × 110 mm (optional configurations available)
Marking Speed ≥1200 mm/s<br>PVC Tubes: 40 m/min<br>PET Bottles: 20,000 bottles/h<br>Cartons: 35 m/min
Cooling Method Water Cooling
Multi-language Support English, French, Spanish, German, Chinese, Russian, Korean, Arabic, etc.
Suitable Materials Glass, Metal, Plastic, Wood, Leather, Acrylic, Nano, Fabric, Ceramic, Coated Film
Package Size Lens: ~630 × 430 × 210 mm<br>Chiller: ~680 × 410 × 560 mm<br>Host: ~670 × 410 × 560 mm
Package Weight Lens: ~13 kg<br>Chiller: ~24 kg<br>Host: ~13 kg
