Zonesun ZS-VMB200RH Automatic Vacuum Emulsifying Mixer Cream Lotion Homogenizer Mixing Machine
Description
This mixing equipment is designed with a sealed tank and features an integrated system that includes wall-scraping mixing, high-efficiency homogenizing and emulsifying, jacketed heating and cooling, vacuum functionality, temperature control, internal lighting, and a sturdy support frame. By operating under vacuum conditions, it effectively eliminates air incorporation during mixing, resulting in superior homogenization and emulsification performance.
Parameter
Machine Model: ZS-VMB200RH
Voltage: 220V 50-60Hz
Tank Capacity: 200L (customizable upon request)
Wall Thickness: Inner layer: 5 mm
Middle layer: 4 mm
Outer layer: 3 mm
Tank Material: Inner layer made of SUS316L; middle and outer layers made of SUS304
Heating Power: 18 kW
Mixing Motor Power: 2.2 kW
Mixing Speed: Frequency-controlled, adjustable from 0 to 62 RPM
Homogenizing Emulsifier Power: 5.5 kW
Homogenizing Speed: Frequency-controlled, adjustable from 0 to 2,930 RPM
Vacuum Pump Power: 1.45 kW
Working Pressure: Vacuum pressure range: -0.09 to -0.02 MPa; Positive pressure: ≤ 0.3 MPa
Dimension: About 1512*1026*2619 mm
Package Size: About 1350*1060*2230 mm
Package Weight: About 591 kg
Cosmetic creams and lotions (e.g., moisturizers, sunscreens, BB creams)
Pharmaceutical ointments (e.g., medicinal gels, dermatological creams)
Food-grade pastes and sauces (e.g., mayonnaise, cheese paste, peanut butter) — requires food-grade stainless steel contact parts
Chemical emulsions and dispersions (e.g., detergents, paint additives, lubricants)
Personal care products (e.g., shampoo, conditioner, toothpaste)
👉If you need a customized vacuum mixing solution for your formulation, feel free to contact us for tailored configurations and capacity options!

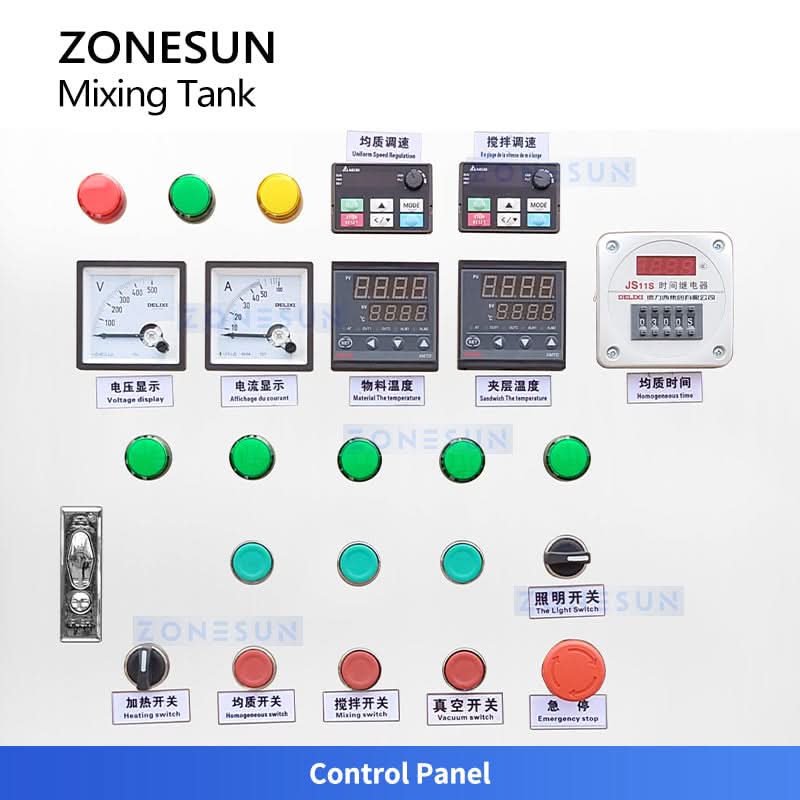

User-friendly interface with clearly labeled functions.
Dual temperature control system allows for precise and stable temperature regulation.

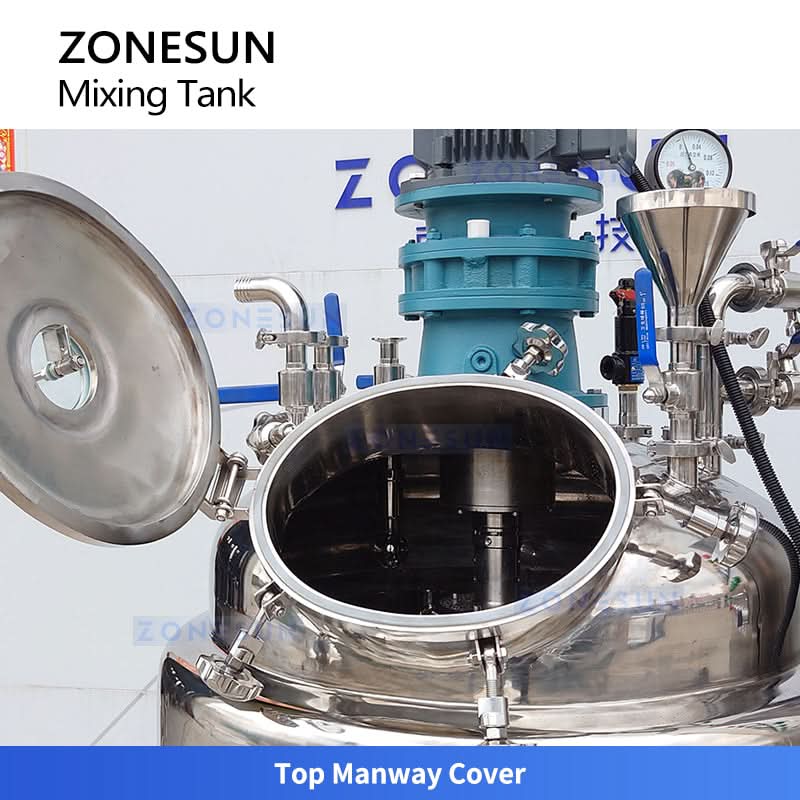

300x350 mm manway for manual feeding and easy cleaning of the mixing tank.
FRAME WALL-SCRAPING
Equipped with a frame-style agitator featuring baffles and side scrapers to ensure thorough, dead-zone-free mixing. Prevents material from sticking during heating.
LED ILLUMINATION
Integrated 3W LED light provides clear internal visibility during operation.
Vacuum operation prevents air incorporation during mixing, ensuring a smooth and bubble-free final product.
Description
This mixing equipment is designed with a sealed tank and features an integrated system that includes wall-scraping mixing, high-efficiency homogenizing and emulsifying, jacketed heating and cooling, vacuum functionality, temperature control, internal lighting, and a sturdy support frame. By operating under vacuum conditions, it effectively eliminates air incorporation during mixing, resulting in superior homogenization and emulsification performance.
Parameter
Machine Model: ZS-VMB200RH
Voltage: 220V 50-60Hz
Tank Capacity: 200L (customizable upon request)
Wall Thickness: Inner layer: 5 mm
Middle layer: 4 mm
Outer layer: 3 mm
Tank Material: Inner layer made of SUS316L; middle and outer layers made of SUS304
Heating Power: 18 kW
Mixing Motor Power: 2.2 kW
Mixing Speed: Frequency-controlled, adjustable from 0 to 62 RPM
Homogenizing Emulsifier Power: 5.5 kW
Homogenizing Speed: Frequency-controlled, adjustable from 0 to 2,930 RPM
Vacuum Pump Power: 1.45 kW
Working Pressure: Vacuum pressure range: -0.09 to -0.02 MPa; Positive pressure: ≤ 0.3 MPa
Dimension: About 1512*1026*2619 mm
Package Size: About 1350*1060*2230 mm
Package Weight: About 591 kg
Cosmetic creams and lotions (e.g., moisturizers, sunscreens, BB creams)
Pharmaceutical ointments (e.g., medicinal gels, dermatological creams)
Food-grade pastes and sauces (e.g., mayonnaise, cheese paste, peanut butter) — requires food-grade stainless steel contact parts
Chemical emulsions and dispersions (e.g., detergents, paint additives, lubricants)
Personal care products (e.g., shampoo, conditioner, toothpaste)
👉If you need a customized vacuum mixing solution for your formulation, feel free to contact us for tailored configurations and capacity options!
User-friendly interface with clearly labeled functions.
Dual temperature control system allows for precise and stable temperature regulation.
300x350 mm manway for manual feeding and easy cleaning of the mixing tank.
FRAME WALL-SCRAPING
Equipped with a frame-style agitator featuring baffles and side scrapers to ensure thorough, dead-zone-free mixing. Prevents material from sticking during heating.
LED ILLUMINATION
Integrated 3W LED light provides clear internal visibility during operation.
Vacuum operation prevents air incorporation during mixing, ensuring a smooth and bubble-free final product.
Original: $11,699.00
-70%$11,699.00
$3,509.70Description
Description
This mixing equipment is designed with a sealed tank and features an integrated system that includes wall-scraping mixing, high-efficiency homogenizing and emulsifying, jacketed heating and cooling, vacuum functionality, temperature control, internal lighting, and a sturdy support frame. By operating under vacuum conditions, it effectively eliminates air incorporation during mixing, resulting in superior homogenization and emulsification performance.
Parameter
Machine Model: ZS-VMB200RH
Voltage: 220V 50-60Hz
Tank Capacity: 200L (customizable upon request)
Wall Thickness: Inner layer: 5 mm
Middle layer: 4 mm
Outer layer: 3 mm
Tank Material: Inner layer made of SUS316L; middle and outer layers made of SUS304
Heating Power: 18 kW
Mixing Motor Power: 2.2 kW
Mixing Speed: Frequency-controlled, adjustable from 0 to 62 RPM
Homogenizing Emulsifier Power: 5.5 kW
Homogenizing Speed: Frequency-controlled, adjustable from 0 to 2,930 RPM
Vacuum Pump Power: 1.45 kW
Working Pressure: Vacuum pressure range: -0.09 to -0.02 MPa; Positive pressure: ≤ 0.3 MPa
Dimension: About 1512*1026*2619 mm
Package Size: About 1350*1060*2230 mm
Package Weight: About 591 kg
Cosmetic creams and lotions (e.g., moisturizers, sunscreens, BB creams)
Pharmaceutical ointments (e.g., medicinal gels, dermatological creams)
Food-grade pastes and sauces (e.g., mayonnaise, cheese paste, peanut butter) — requires food-grade stainless steel contact parts
Chemical emulsions and dispersions (e.g., detergents, paint additives, lubricants)
Personal care products (e.g., shampoo, conditioner, toothpaste)
👉If you need a customized vacuum mixing solution for your formulation, feel free to contact us for tailored configurations and capacity options!
User-friendly interface with clearly labeled functions.
Dual temperature control system allows for precise and stable temperature regulation.
300x350 mm manway for manual feeding and easy cleaning of the mixing tank.
FRAME WALL-SCRAPING
Equipped with a frame-style agitator featuring baffles and side scrapers to ensure thorough, dead-zone-free mixing. Prevents material from sticking during heating.
LED ILLUMINATION
Integrated 3W LED light provides clear internal visibility during operation.
Vacuum operation prevents air incorporation during mixing, ensuring a smooth and bubble-free final product.
