Description

This cap pressing machine uses a vibratory bowl to feed caps automatically. It works as a bottle cap sealer and high-speed cap press, ideal for sealing coffee powder, herbs, and spices. The automatic cap press is part of a full packaging equipment system, acting as a reliable bottle sealing machine on your production line machine. Built by ZONESUN, it features dual pressing heads for efficient cap sealing, fast packaging, and automated capping in bottle packaging workflows.

Parameter

• Machine model: ZS-VTYG02S
• Machine voltage: 110/220V 50-60HZ 2KW
• Suitable bottle size: ①83*107*170mm②78*69*132mm③56*67*110mm(Customizable)
• Suitable cap size: ①83*107*27 ②78*69*24 ③56*67*19 mm(Customizable)
• Working speed: 25-30 BPM
• Working pressure: 0.4-0.6MPa
• Machine size: About 2420*1172.5*2169 mm(L*W*H)
• Package size: About 1910*1150*2200 mm(L*W*H)-Main Machine
   About 160*980*800 mm(L*W*H)-Vibratory Bowl Sorter 1
  About 1100*900*940 mm(L*W*H)-Vibratory Bowl Sorter 2
• Package weight: About 520 kg-Main Machine
  About 225 kg-Vibratory Bowl Sorter 1
  About 161 kg-Vibratory Bowl Sorter 2











CONTROL PANEL
Intuitive HMI interface for easy operation and parameter adjustment.

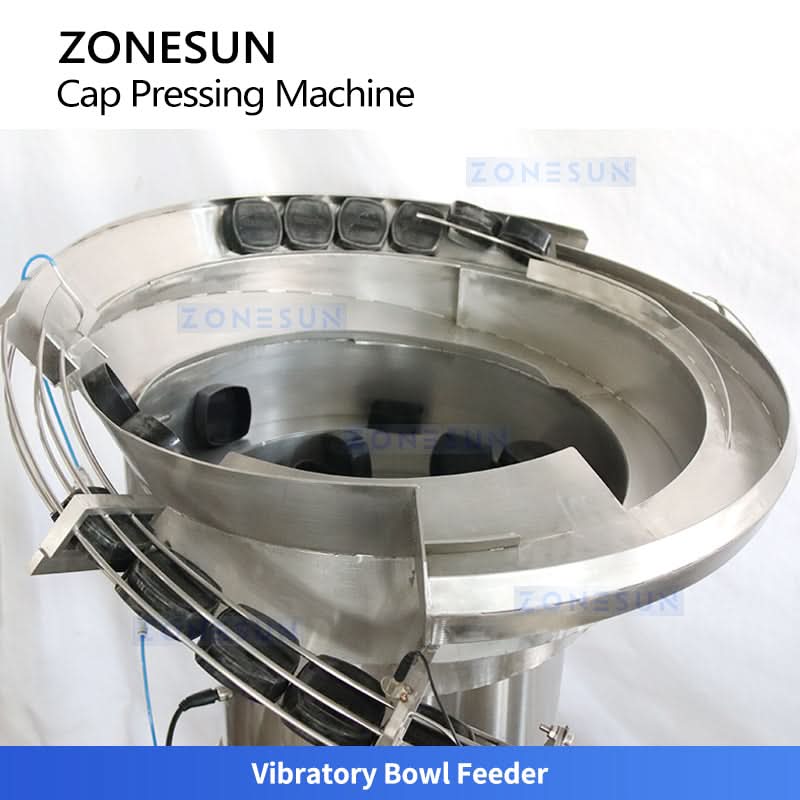

VIBRATORY BOWL
Automatically aligns and feeds caps for continuous operation. Customizable configurations available.

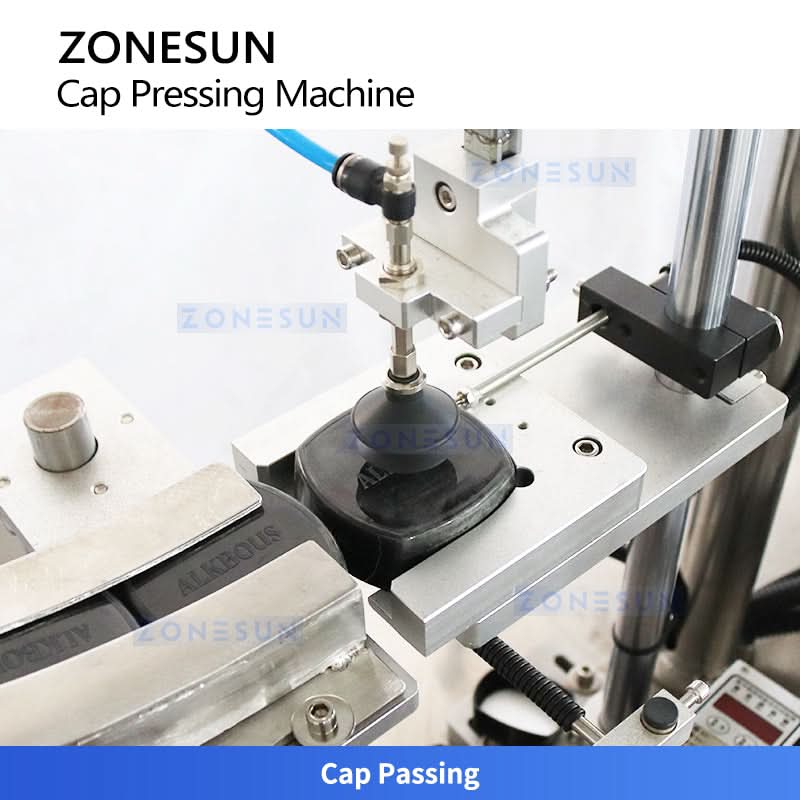

CAP PASSING MECHANISM
Utilizes suction cups to accurately pick and place caps onto bottles.

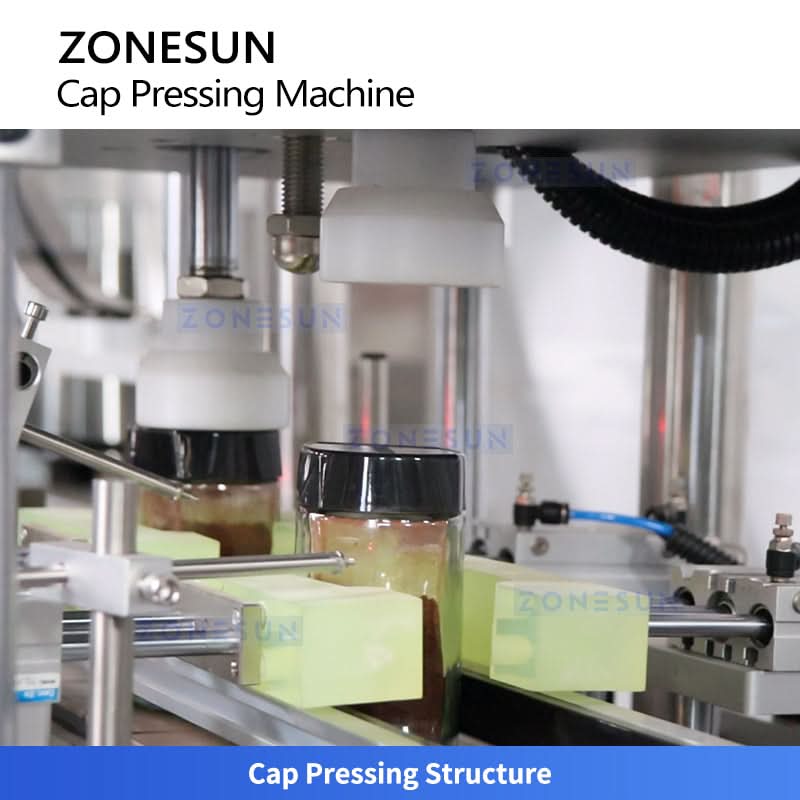

CAP PRESSING SYSTEM

Double pressing heads, it can reach 30 bottles/min,working height is adjustable.



ELECTRIC EYE SENSOR
Photoelectric detection ensures precise bottle positioning for accurate capping.

DUST-PROOF COVER
Protects internal components from contamination, maintaining long-term operational reliability.
