Zonesun ZS-WS1 Terminal Insulation Stripper Wire Stripper
Increase your wire harness production speed with our pneumatic terminal insulation stripper. This high-efficiency tool quickly and cleanly removes insulation from wire harness terminals, preparing them for connection. Its air-powered operation ensures consistent performance and reduces operator fatigue, ideal for high-volume applications. Durable construction guarantees long-lasting reliability, minimizing downtime and maximizing productivity.
PARAMETER
Model: ZS-WS1
Maximum cable outer diameter: 3.2 MM (0.12")
Complete stripping: 0.5 MM (0.019")
Partial stripping: 2 MM (0.078")
Diameter setting accuracy: 0.01 MM (0.001")
Maximum stripping length: 20 MM
Processing time: About 0.3 S
Dimensions (length * width * height): 265 X70 X 135 MM
Weight: 2.0 KG (4.4 LBS.)
Air pressure: 0.55PA-0.8PA
PRODUCTS DETAIL
V-SHAPED KNIFE EDGE
The machine features a 90-degree V-shaped knife edge design for enhanced versatility, allowing it to accommodate a variety of wire sizes without changing knives.

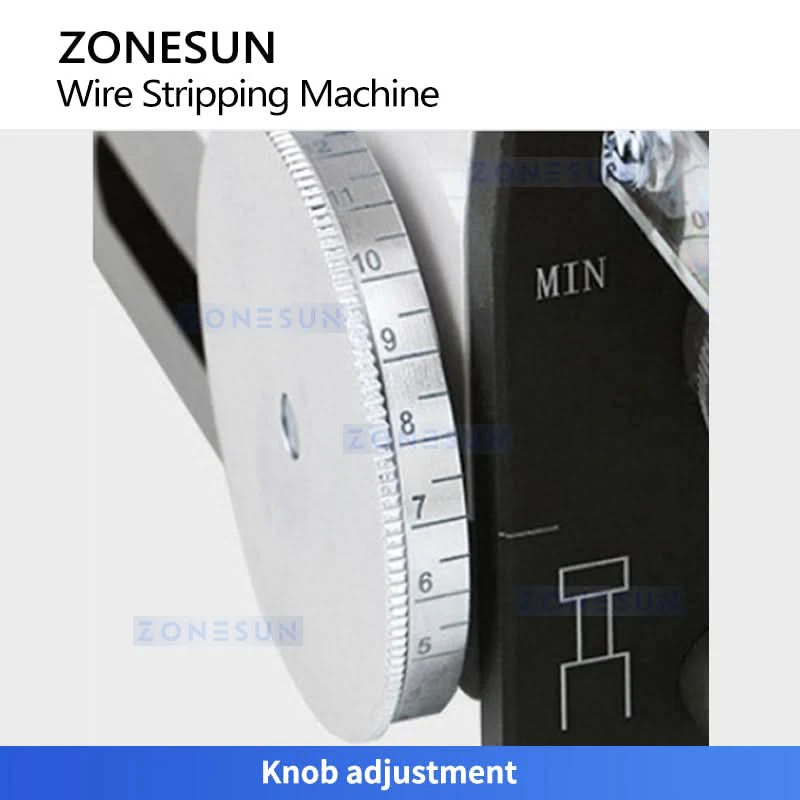

KNOB ADJUSTMENT
Equipped with a quick adjustment knob, the stripping length, partial stripping distance and cutting depth can be set easily and quickly.

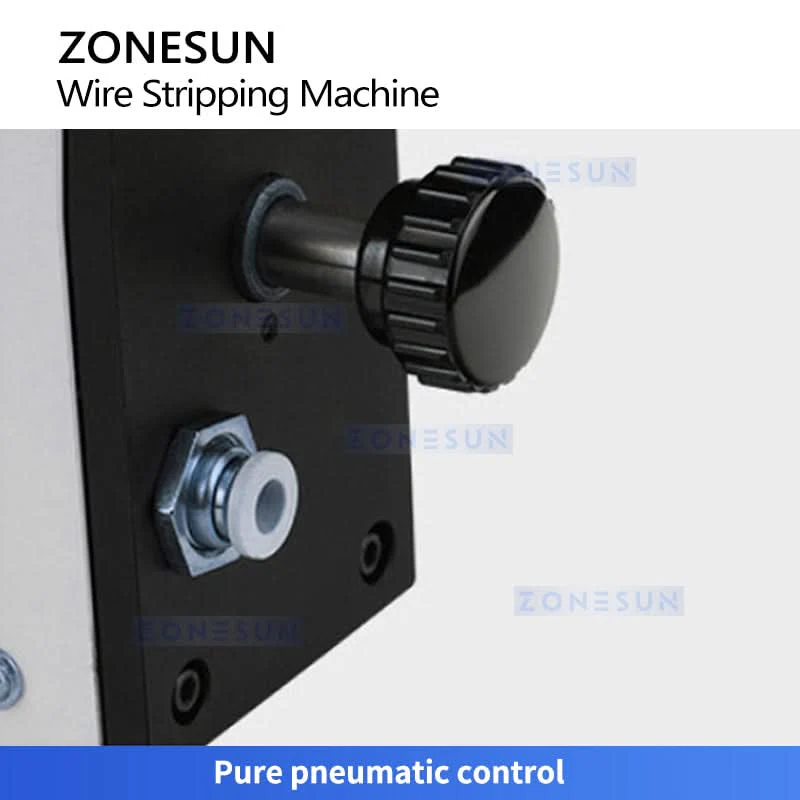

PURE PNEUMATIC CONTROL
ZONESUNThe entire machine runs on a fully pneumatic control system and requires no power supply.

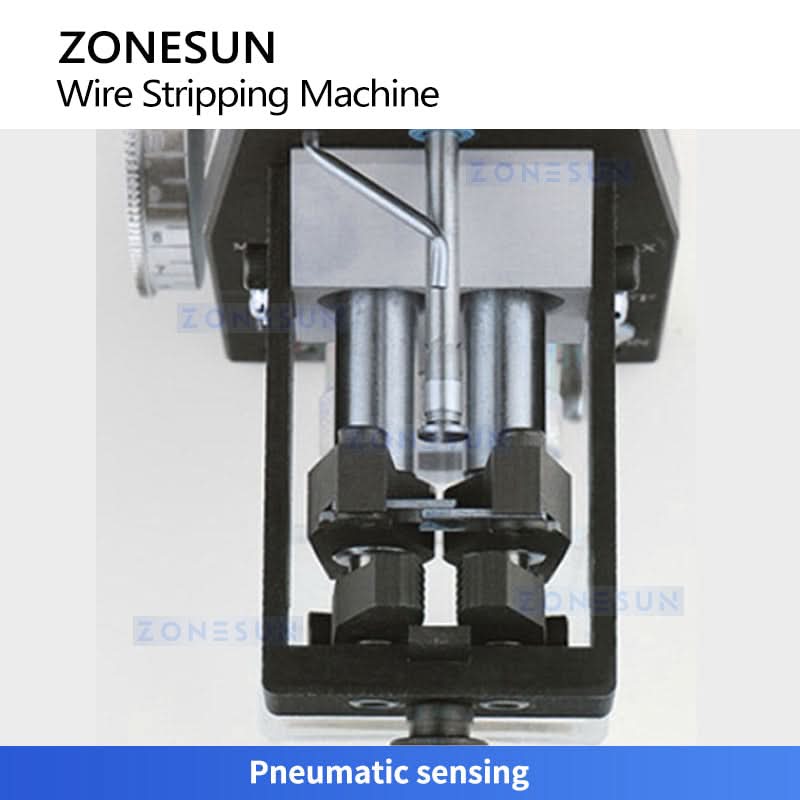

PNEUMATIC SENSING
The machine utilizes pneumatic sensor switches to quickly and accurately control the peeling process.
