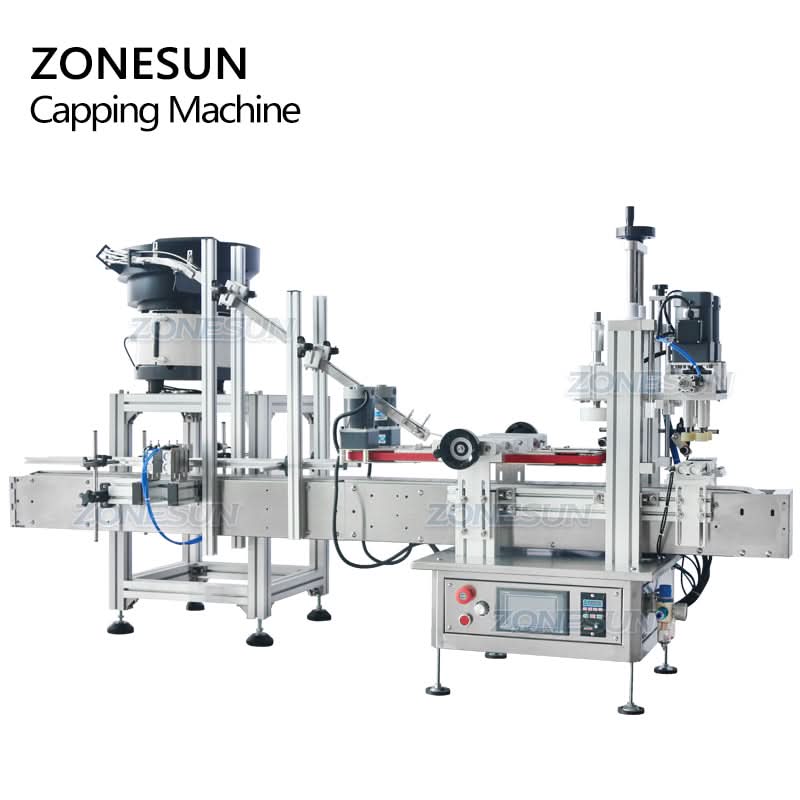

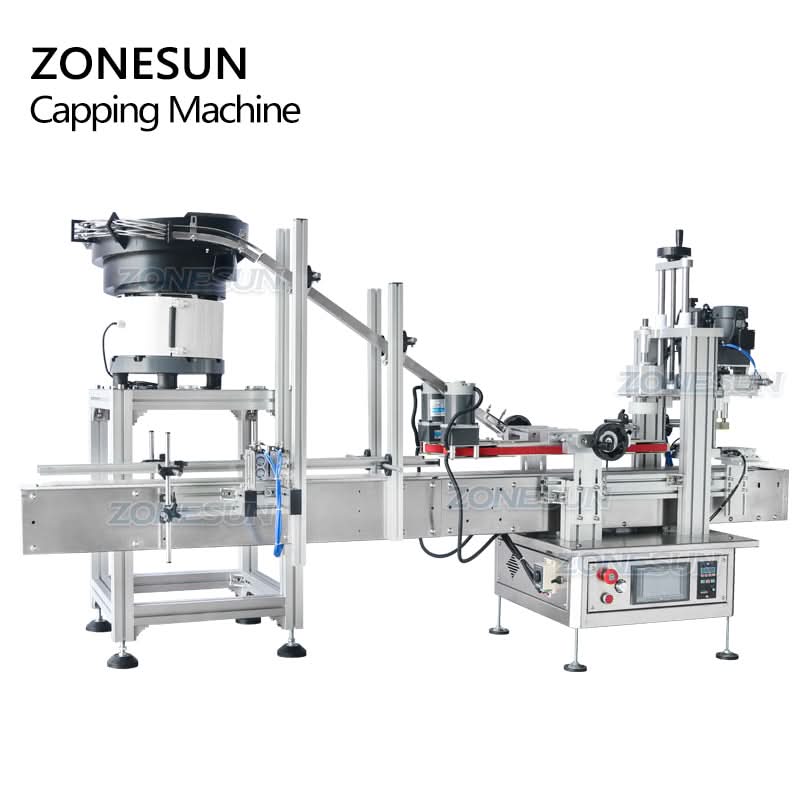

ZONESUN ZS-XG1870P Automatic Tabletop Capping Machine with Vibratory Bowl System

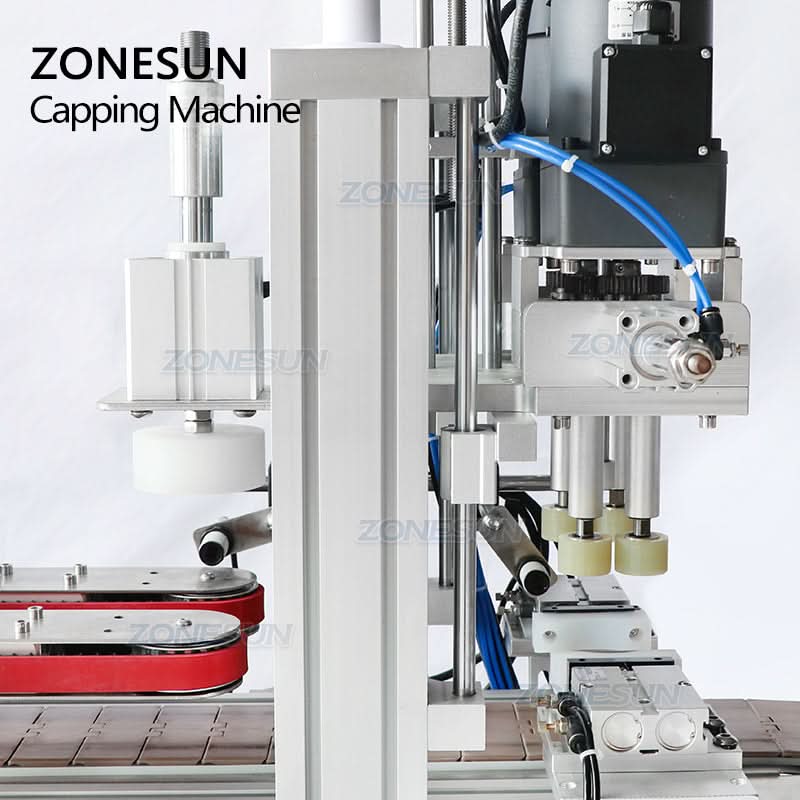

The ZONESUN ZS-XG1870P is a tabletop automatic capping machine featuring a vibratory bowl for sorting and feeding caps efficiently. Designed with four rotating heads and a rubber anchoring mechanism, it can tighten various screw-on closures, including pump caps, child-resistant lids, and dispensing closures. Easily integrated with filling and labeling machines, it supports a smooth transition to fully automated production lines in the food, cosmetics, and chemical industries.
ZS-XG1870P Capping Machine Specifications
Parameter Specification
Machine Model ZS-XG1870P
Voltage AC220V/110V, 50–60Hz
Power 200W
Bottle Height 60–270mm
Cap Diameter 18–70mm
Working Speed 20–40 bottles/min (depends on bottle and caps)
Conveyor Length 1117mm
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8mm
Machine Dimensions Approx. 2100 × 580 × 1200mm
Vibratory Bowl Dimensions Approx. 500 × 500 × 1180mm
Machine Packing Size Approx. 1140 × 615 × 1105mm
Vibratory Bowl Packing Size Approx. 1165 × 680 × 710mm
Net Weight Approx. 85kg (Machine) + 88kg (Vibratory Bowl)
Gross Weight Approx. 114kg (Machine) + 116kg (Vibratory Bowl)
