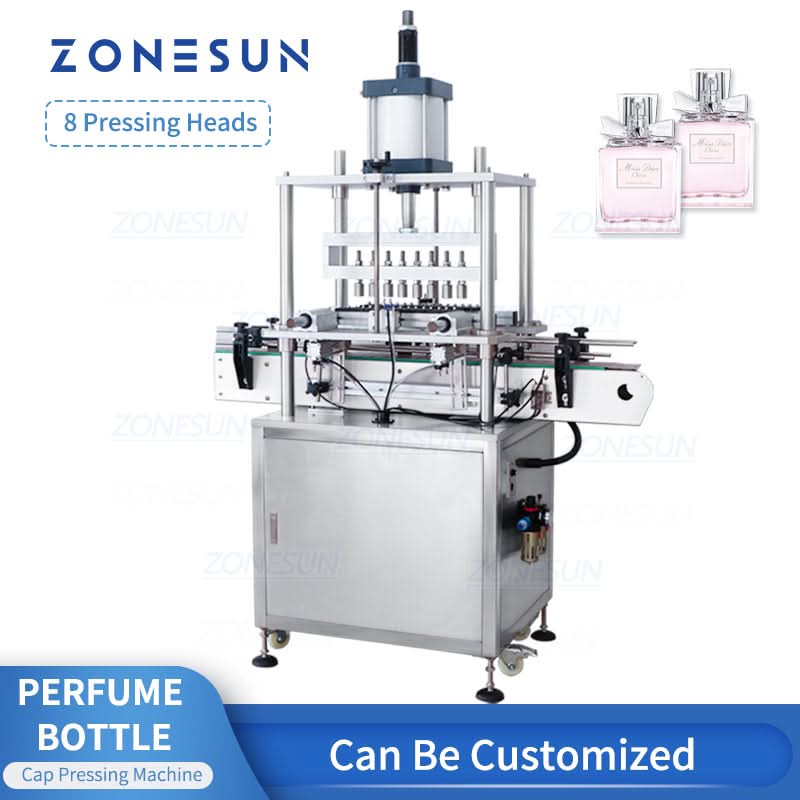

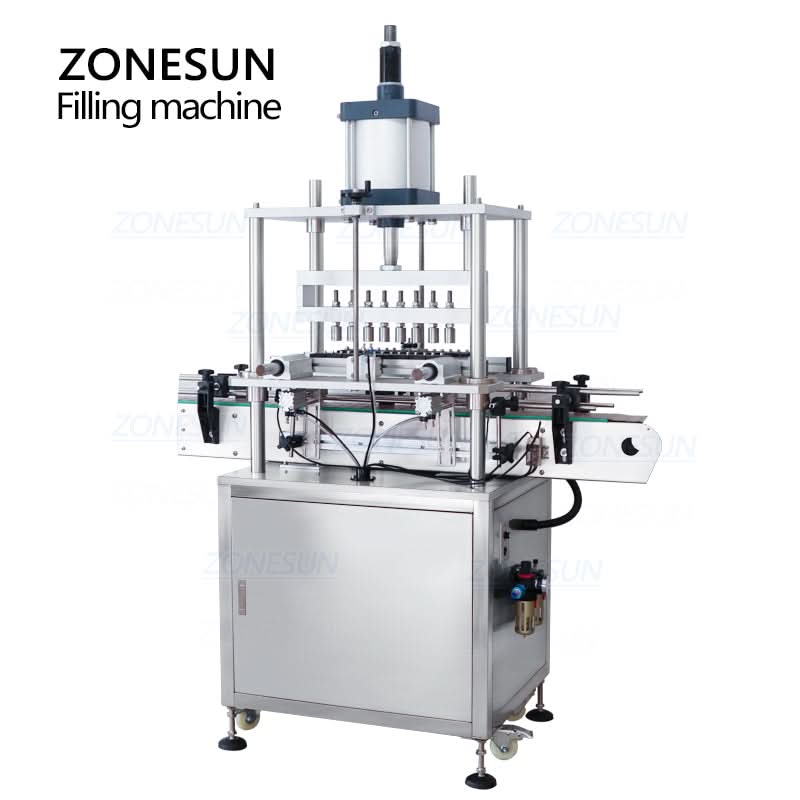

Zonesun ZS-YG10 Automatic 8 Heads Perfume Bottle Capping Machine
DESCRIPTION
This machine is used for closing perfume bottles. It is designed with 8 heads, which brings high efficiency. Also, it can be assembled with a filling machine and a labeling machine to form an automated production line.
APPLICATION
This machine is suitable for capping perfume caps and collar rings.
PARAMETER
|
Machine Model |
ZS-YG10 |
|
Bottle Height |
60-200mm |
|
Bottle Opening Size |
13/15/18/20mm(customized) |
|
Bottle Body Diameter |
≤100mm |
|
Caps Diameter |
Customized |
|
Machine Size |
About 750*605*2050mm |
|
Machine Weight |
About 209kg |
|
Package Size |
About 1560*750*2110mm |
|
Package Weight |
About 255kg |
WITH powerful air cylinder, the pressing heads can run stably, ensuring the bottles can be capped well. Improve working efficiency.

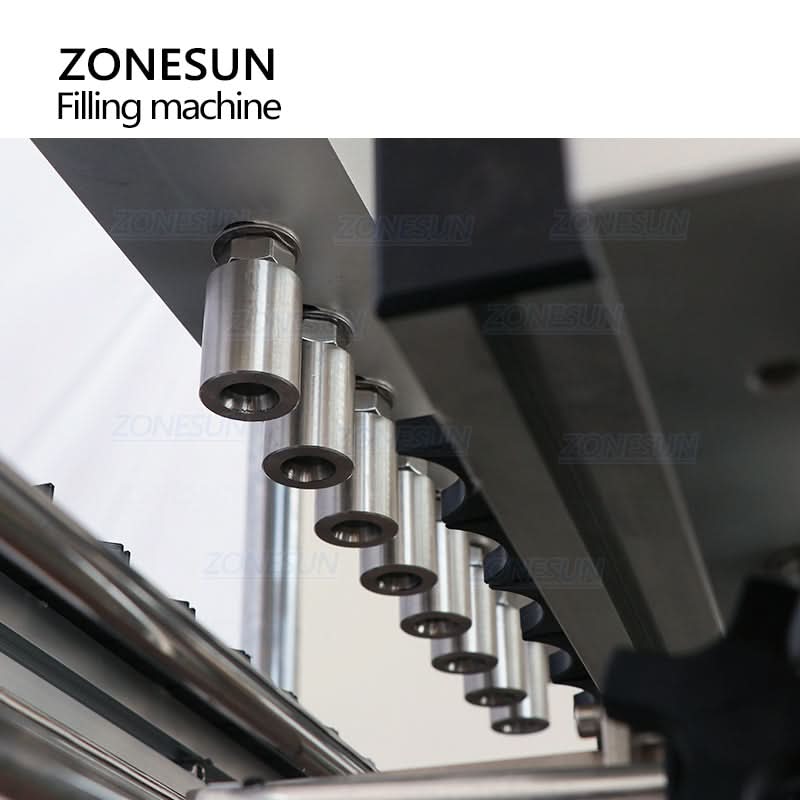

02 PRESSING HEADS
It is used for pressing perfume bottle caps and collar ring. The size and number of pressing heads can be customized according to customers' need.
It is designed for detecting bottles and controlling the machine to work automatically. Intelligent and efficient.The sensitivity of it can be adjusted as needed.

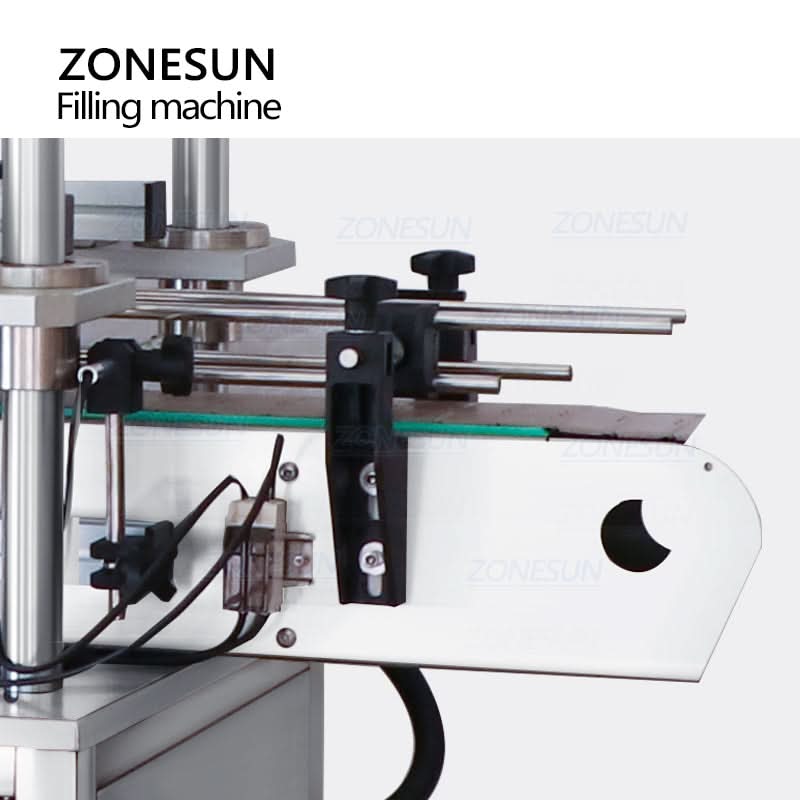

04 CONVEYOR BELT
With chain conveyor belt, it can transport bottles stably, improving working efficiency. The width and conveying speed of it can be adjusted according to production need.
DESCRIPTION
This machine is used for closing perfume bottles. It is designed with 8 heads, which brings high efficiency. Also, it can be assembled with a filling machine and a labeling machine to form an automated production line.
APPLICATION
This machine is suitable for capping perfume caps and collar rings.
PARAMETER
|
Machine Model |
ZS-YG10 |
|
Bottle Height |
60-200mm |
|
Bottle Opening Size |
13/15/18/20mm(customized) |
|
Bottle Body Diameter |
≤100mm |
|
Caps Diameter |
Customized |
|
Machine Size |
About 750*605*2050mm |
|
Machine Weight |
About 209kg |
|
Package Size |
About 1560*750*2110mm |
|
Package Weight |
About 255kg |
WITH powerful air cylinder, the pressing heads can run stably, ensuring the bottles can be capped well. Improve working efficiency.
02 PRESSING HEADS
It is used for pressing perfume bottle caps and collar ring. The size and number of pressing heads can be customized according to customers' need.
It is designed for detecting bottles and controlling the machine to work automatically. Intelligent and efficient.The sensitivity of it can be adjusted as needed.
04 CONVEYOR BELT
With chain conveyor belt, it can transport bottles stably, improving working efficiency. The width and conveying speed of it can be adjusted according to production need.
Original: $4,299.98
-70%$4,299.98
$1,289.99Description
DESCRIPTION
This machine is used for closing perfume bottles. It is designed with 8 heads, which brings high efficiency. Also, it can be assembled with a filling machine and a labeling machine to form an automated production line.
APPLICATION
This machine is suitable for capping perfume caps and collar rings.
PARAMETER
|
Machine Model |
ZS-YG10 |
|
Bottle Height |
60-200mm |
|
Bottle Opening Size |
13/15/18/20mm(customized) |
|
Bottle Body Diameter |
≤100mm |
|
Caps Diameter |
Customized |
|
Machine Size |
About 750*605*2050mm |
|
Machine Weight |
About 209kg |
|
Package Size |
About 1560*750*2110mm |
|
Package Weight |
About 255kg |
WITH powerful air cylinder, the pressing heads can run stably, ensuring the bottles can be capped well. Improve working efficiency.
02 PRESSING HEADS
It is used for pressing perfume bottle caps and collar ring. The size and number of pressing heads can be customized according to customers' need.
It is designed for detecting bottles and controlling the machine to work automatically. Intelligent and efficient.The sensitivity of it can be adjusted as needed.
04 CONVEYOR BELT
With chain conveyor belt, it can transport bottles stably, improving working efficiency. The width and conveying speed of it can be adjusted according to production need.
