ZONESUN ZS-ZB250S Horizontal Flow Wrapping Machine for Film Packaging
The ZONESUN ZS-ZB250S is a horizontal flow wrapping machine that streamlines feeding, wrapping, and sealing into one continuous process. Unlike the ZS-ZB350X, this model features a spacing conveyor without a product sensor, making it ideal for consistent item sizes and simplified operation. Widely used in the packaging industry, it supports various film types and delivers reliable performance for food, cosmetics, and daily goods.
Parameter
Type :ZS-ZB250S
Power :110/220/380V, 50/60Hz, 2.4KW
Film Width :Max 240 mm (Customizable)
Bag Length :120–280 mm (Customizable)
Bag Width :50–160 mm (Customizable)
Product Height :Max 45 mm (Customizable)
Film Roll Diameter: Max 320 mm
Sealing Type :Bottom side sealing
Machine size: 3761*670*1412mm
Machine net weight 400KG
Packaging Rate: 40–230 bags/min
Packaging Materials: OPP, OPP/CPP, KOP/CPP, Aluminum film
Packing Size : Approx. 2570×530×400 mm + 1420×790×1570 mm
PRODUCT DETAILS
CONTROL PANEL
PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.

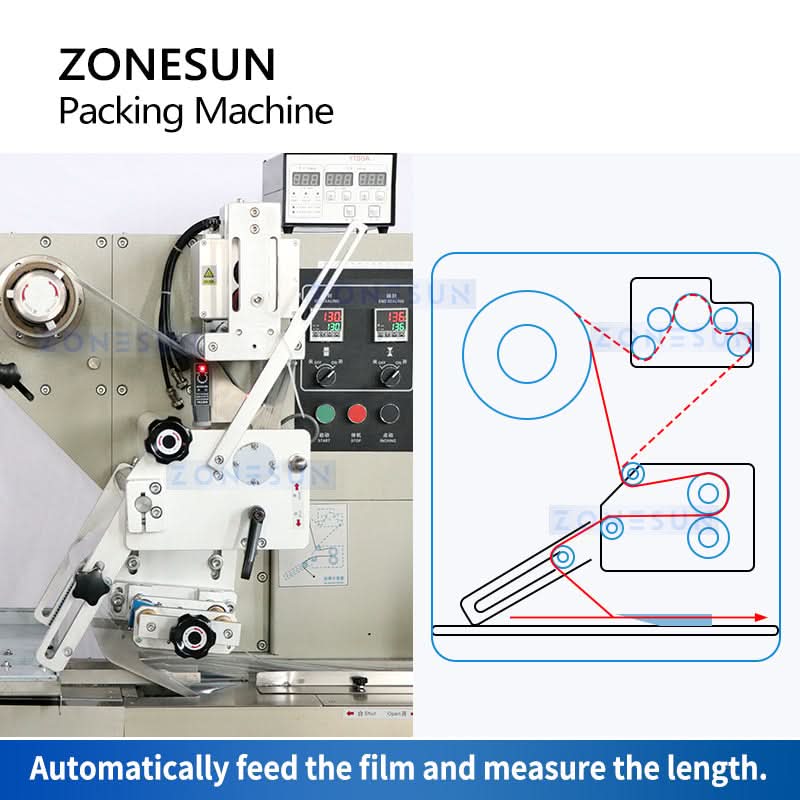

FILM FEEDING
Automatically feed the film.
The max width of the film roll for this model is 250mm. Contact us for other options.

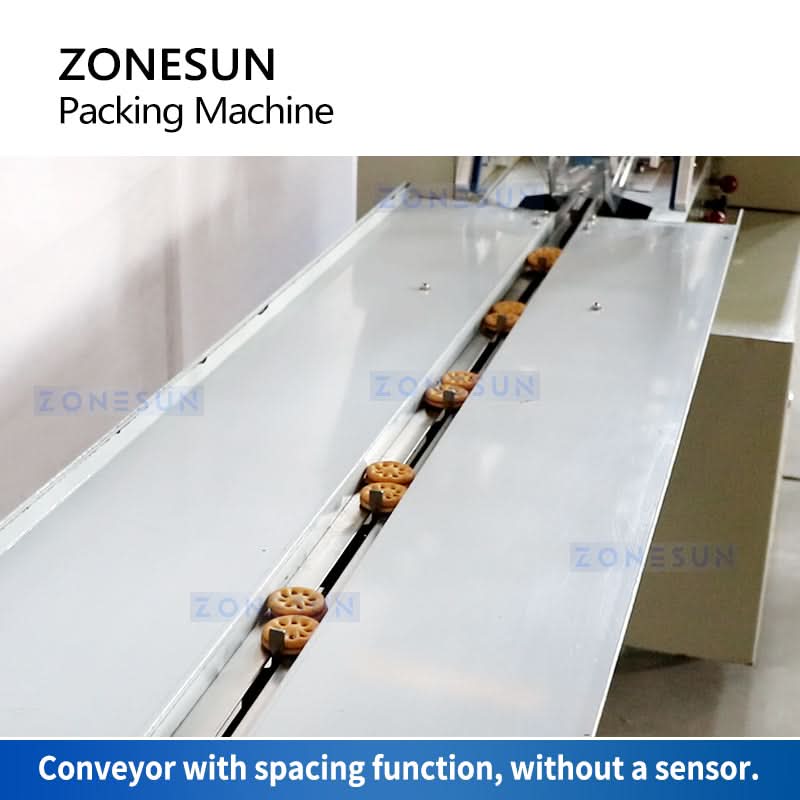

TRANSPORTING
Conveyor with spacing function, without a sensor.
Customization for a sensor option is available.

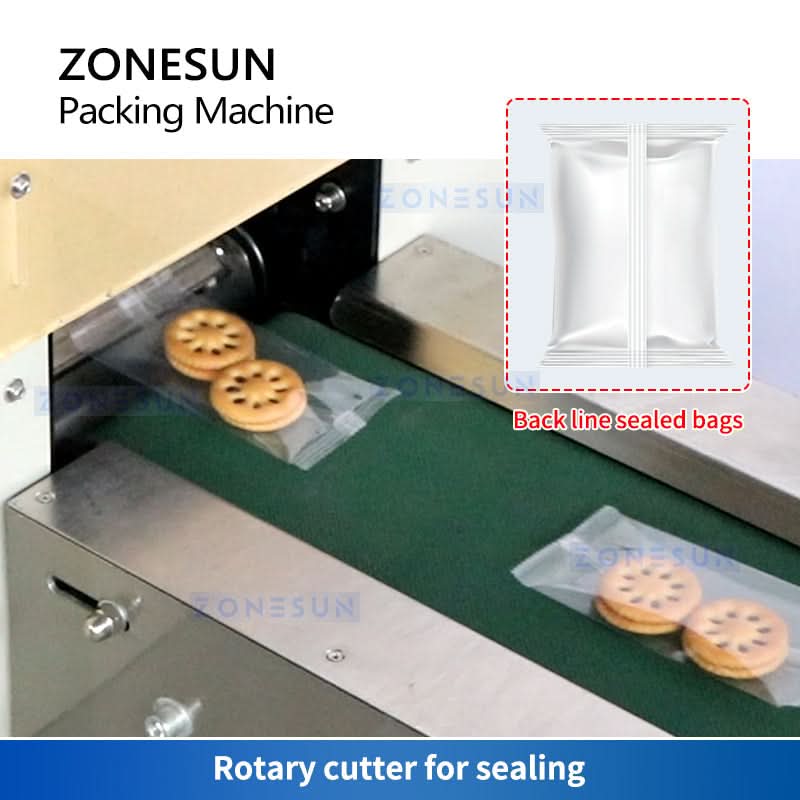

SEALING
The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
The ZONESUN ZS-ZB250S is a horizontal flow wrapping machine that streamlines feeding, wrapping, and sealing into one continuous process. Unlike the ZS-ZB350X, this model features a spacing conveyor without a product sensor, making it ideal for consistent item sizes and simplified operation. Widely used in the packaging industry, it supports various film types and delivers reliable performance for food, cosmetics, and daily goods.
Parameter
Type :ZS-ZB250S
Power :110/220/380V, 50/60Hz, 2.4KW
Film Width :Max 240 mm (Customizable)
Bag Length :120–280 mm (Customizable)
Bag Width :50–160 mm (Customizable)
Product Height :Max 45 mm (Customizable)
Film Roll Diameter: Max 320 mm
Sealing Type :Bottom side sealing
Machine size: 3761*670*1412mm
Machine net weight 400KG
Packaging Rate: 40–230 bags/min
Packaging Materials: OPP, OPP/CPP, KOP/CPP, Aluminum film
Packing Size : Approx. 2570×530×400 mm + 1420×790×1570 mm
PRODUCT DETAILS
CONTROL PANEL
PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.
FILM FEEDING
Automatically feed the film.
The max width of the film roll for this model is 250mm. Contact us for other options.
TRANSPORTING
Conveyor with spacing function, without a sensor.
Customization for a sensor option is available.
SEALING
The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
Original: $4,749.00
-70%$4,749.00
$1,424.70Description
The ZONESUN ZS-ZB250S is a horizontal flow wrapping machine that streamlines feeding, wrapping, and sealing into one continuous process. Unlike the ZS-ZB350X, this model features a spacing conveyor without a product sensor, making it ideal for consistent item sizes and simplified operation. Widely used in the packaging industry, it supports various film types and delivers reliable performance for food, cosmetics, and daily goods.
Parameter
Type :ZS-ZB250S
Power :110/220/380V, 50/60Hz, 2.4KW
Film Width :Max 240 mm (Customizable)
Bag Length :120–280 mm (Customizable)
Bag Width :50–160 mm (Customizable)
Product Height :Max 45 mm (Customizable)
Film Roll Diameter: Max 320 mm
Sealing Type :Bottom side sealing
Machine size: 3761*670*1412mm
Machine net weight 400KG
Packaging Rate: 40–230 bags/min
Packaging Materials: OPP, OPP/CPP, KOP/CPP, Aluminum film
Packing Size : Approx. 2570×530×400 mm + 1420×790×1570 mm
PRODUCT DETAILS
CONTROL PANEL
PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.
FILM FEEDING
Automatically feed the film.
The max width of the film roll for this model is 250mm. Contact us for other options.
TRANSPORTING
Conveyor with spacing function, without a sensor.
Customization for a sensor option is available.
SEALING
The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
