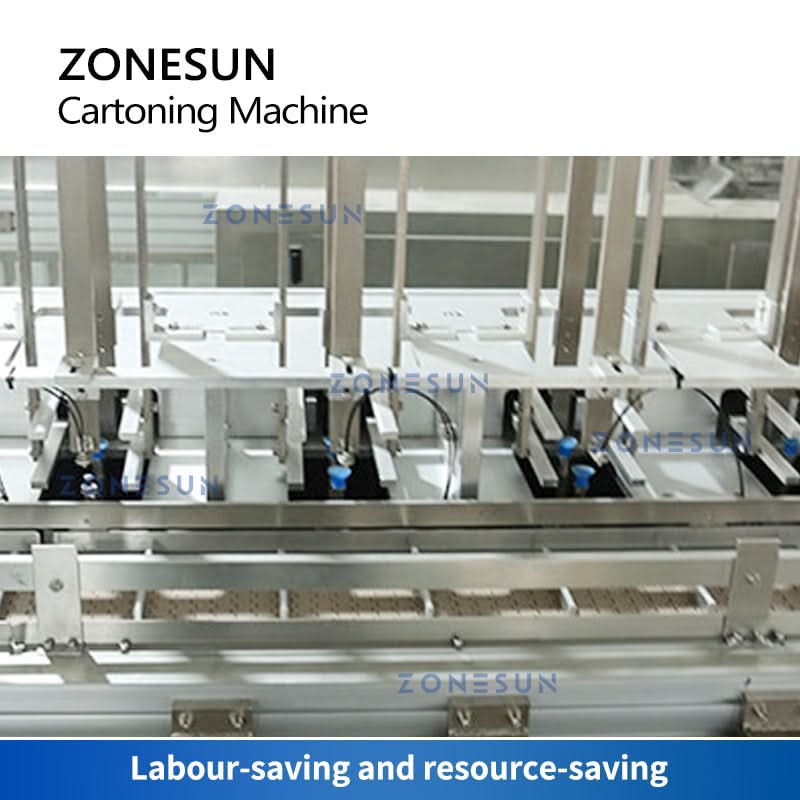

ZONESUN ZS-BP130D Automatic Horizontal Cartoning Machine
The ZONESUN ZS-BP130D is a high-efficiency horizontal cartoning machine designed for packaging skincare, cosmetics, and daily chemical products. It performs a complete cartoning process including carton erecting, forming, material insertion, flap folding, and sealing. With its streamlined structure and compatibility with auxiliary equipment, it easily integrates into automated production lines for faster, cleaner, and more consistent packaging.
Parameter
Model ZS-BP130D
Power Supply 220V / 380V 50Hz
Air Pressure ≥0.6MPa
Motor Power 0.75kW
Air Consumption 120–160L/min
Working Speed 30–120 cartons/min
Machine Size 2650 × 1300 × 1900mm
Net Weight Approx. 1400kg
The ZONESUN ZS-BP130D is a high-efficiency horizontal cartoning machine designed for packaging skincare, cosmetics, and daily chemical products. It performs a complete cartoning process including carton erecting, forming, material insertion, flap folding, and sealing. With its streamlined structure and compatibility with auxiliary equipment, it easily integrates into automated production lines for faster, cleaner, and more consistent packaging.
Parameter
Model ZS-BP130D
Power Supply 220V / 380V 50Hz
Air Pressure ≥0.6MPa
Motor Power 0.75kW
Air Consumption 120–160L/min
Working Speed 30–120 cartons/min
Machine Size 2650 × 1300 × 1900mm
Net Weight Approx. 1400kg
Select Voltage
From $9,600.00
Original: $32,000.00
-70%ZONESUN ZS-BP130D Automatic Horizontal Cartoning Machine—
$32,000.00
$9,600.00Description
The ZONESUN ZS-BP130D is a high-efficiency horizontal cartoning machine designed for packaging skincare, cosmetics, and daily chemical products. It performs a complete cartoning process including carton erecting, forming, material insertion, flap folding, and sealing. With its streamlined structure and compatibility with auxiliary equipment, it easily integrates into automated production lines for faster, cleaner, and more consistent packaging.
Parameter
Model ZS-BP130D
Power Supply 220V / 380V 50Hz
Air Pressure ≥0.6MPa
Motor Power 0.75kW
Air Consumption 120–160L/min
Working Speed 30–120 cartons/min
Machine Size 2650 × 1300 × 1900mm
Net Weight Approx. 1400kg
