ZONESUN ZS-RWGFP4 Wine Bottle Filling Machine with Smart Sensor Control
Engineered for accuracy and convenience, this intelligent filling machine uses sensor-based automation to detect fill levels and stop flow precisely when full. It handles liquids like wine, olive oil, soy sauce, and Baijiu with impressive speed and minimal waste. Trusted by the food and beverage industry for streamlined bottling processes, ZONESUN offers a complete solution for automated production lines.
Parameter
Product Model ZS-RWGFP4
Rated Power 0.37 kW (with pump)
Machine Weight 35 kg
Production Capacity 500–1000 bottles/hour
Bottle Height 160–350 mm
Bottle Diameter 60–100 mm
Bottle Opening Inner Diameter ≥16 mm
Machine Size 610 × 550 × 1050 mm
Net Weight 45 kg
Package Size Approx. 710 × 580 × 1160 mm
Package Weight Approx. 50 kg
PRODUCT DETAILS

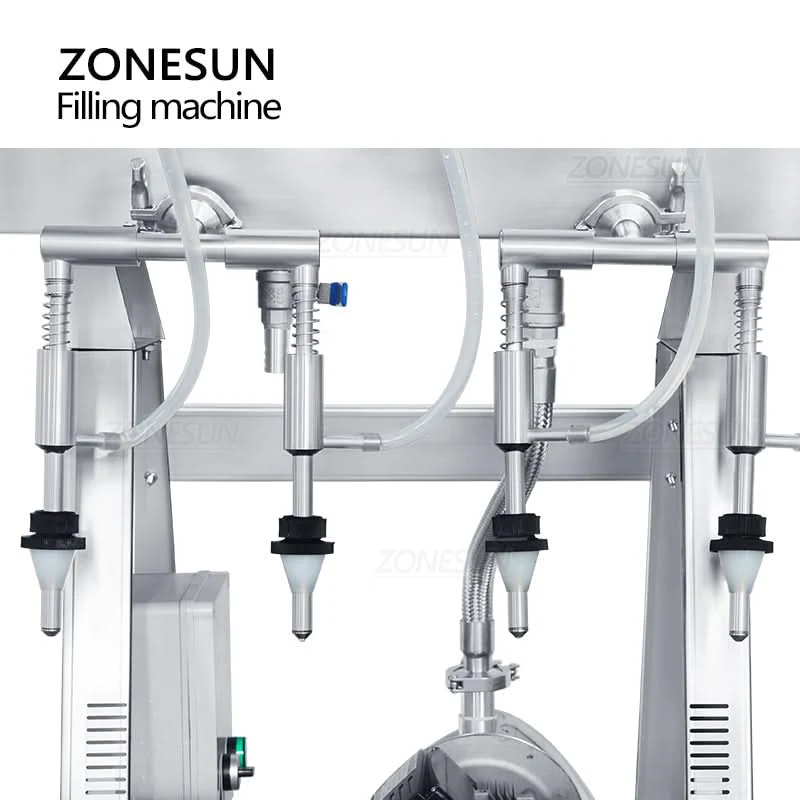

FILLING HEAD
Four-head design, stainless steel casing, stable and durable. High working efficiency, high precision and anti-dripping system.
PUMP
370W, 2860r/min, max flow rate: 2.73m3/h, heat-resistant and durable.
ADJUSTABLE TRAY
The thickened and height-adjustable stainless-steel tray is suitable for bottles in different heights.
WATER LEVEL
Easy to see the water level in the tank, with 2 level sensors.
Engineered for accuracy and convenience, this intelligent filling machine uses sensor-based automation to detect fill levels and stop flow precisely when full. It handles liquids like wine, olive oil, soy sauce, and Baijiu with impressive speed and minimal waste. Trusted by the food and beverage industry for streamlined bottling processes, ZONESUN offers a complete solution for automated production lines.
Parameter
Product Model ZS-RWGFP4
Rated Power 0.37 kW (with pump)
Machine Weight 35 kg
Production Capacity 500–1000 bottles/hour
Bottle Height 160–350 mm
Bottle Diameter 60–100 mm
Bottle Opening Inner Diameter ≥16 mm
Machine Size 610 × 550 × 1050 mm
Net Weight 45 kg
Package Size Approx. 710 × 580 × 1160 mm
Package Weight Approx. 50 kg
PRODUCT DETAILS
FILLING HEAD
Four-head design, stainless steel casing, stable and durable. High working efficiency, high precision and anti-dripping system.
PUMP
370W, 2860r/min, max flow rate: 2.73m3/h, heat-resistant and durable.
ADJUSTABLE TRAY
The thickened and height-adjustable stainless-steel tray is suitable for bottles in different heights.
WATER LEVEL
Easy to see the water level in the tank, with 2 level sensors.
Original: $958.00
-70%$958.00
$287.40Description
Engineered for accuracy and convenience, this intelligent filling machine uses sensor-based automation to detect fill levels and stop flow precisely when full. It handles liquids like wine, olive oil, soy sauce, and Baijiu with impressive speed and minimal waste. Trusted by the food and beverage industry for streamlined bottling processes, ZONESUN offers a complete solution for automated production lines.
Parameter
Product Model ZS-RWGFP4
Rated Power 0.37 kW (with pump)
Machine Weight 35 kg
Production Capacity 500–1000 bottles/hour
Bottle Height 160–350 mm
Bottle Diameter 60–100 mm
Bottle Opening Inner Diameter ≥16 mm
Machine Size 610 × 550 × 1050 mm
Net Weight 45 kg
Package Size Approx. 710 × 580 × 1160 mm
Package Weight Approx. 50 kg
PRODUCT DETAILS
FILLING HEAD
Four-head design, stainless steel casing, stable and durable. High working efficiency, high precision and anti-dripping system.
PUMP
370W, 2860r/min, max flow rate: 2.73m3/h, heat-resistant and durable.
ADJUSTABLE TRAY
The thickened and height-adjustable stainless-steel tray is suitable for bottles in different heights.
WATER LEVEL
Easy to see the water level in the tank, with 2 level sensors.
