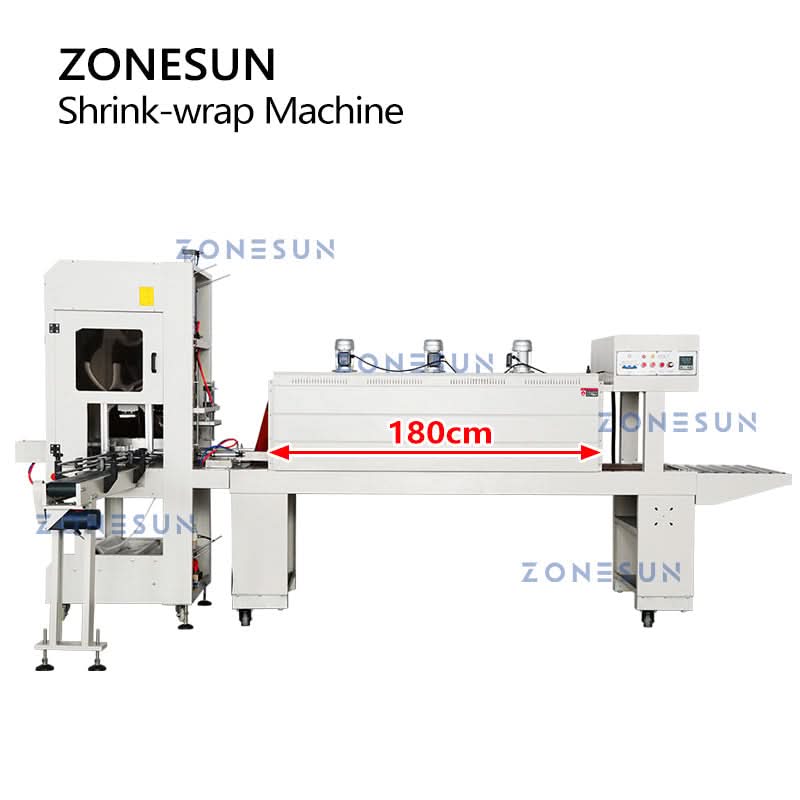

The ZONESUN ZS-SPL4 is a complete shrink wrapping solution designed for bottled water, soft drinks, and similar products. It automatically dispenses and seals shrink film around grouped bottles, then passes them through a high-efficiency shrink tunnel for tight, professional packaging. Compatible with fillers, cappers, and labelers, this system integrates seamlessly into a full production line, improving packaging speed, consistency, and shelf appeal.

PARAMETER

Wrapper
Model	ZS-QZD7040
Voltage	220-240V 50-60Hz
Power	2kw
Packing speed	0-6 bags/min
Sealing time	0.5-1.5s
Package length	≥12cm
Max package width	42cm
Max package height	33cm
Conveying load	20kg
Conveyor length	1.6m
Film width & thickness	Max 560mm/0.03-0.25mm
Applicable film	POF/PE/PVC/PP
Machine size	About 2210*1450*2080mm
Machine weight	About 380kg



Shrink Tunnel
Model	ZS-BSPN6040
Voltage	380V 50-60HZ
Power	21KW
Tunnel Size	About 1800*600*400mm
Conveying Speed	0-15m/min
Transport Load	25kg
Suitable Film	PVC/POF/PE
Machine Size	About 2800*910*1400mm
Package Size	About 2880*930*1500mm
Package Weight	About 350kg















PRODUCT DETAILS





CONTROL PANEL



Wrapper
PLC controls, color display, touchscreen.
Shrink Tunnel
Simple controls, foolproof.

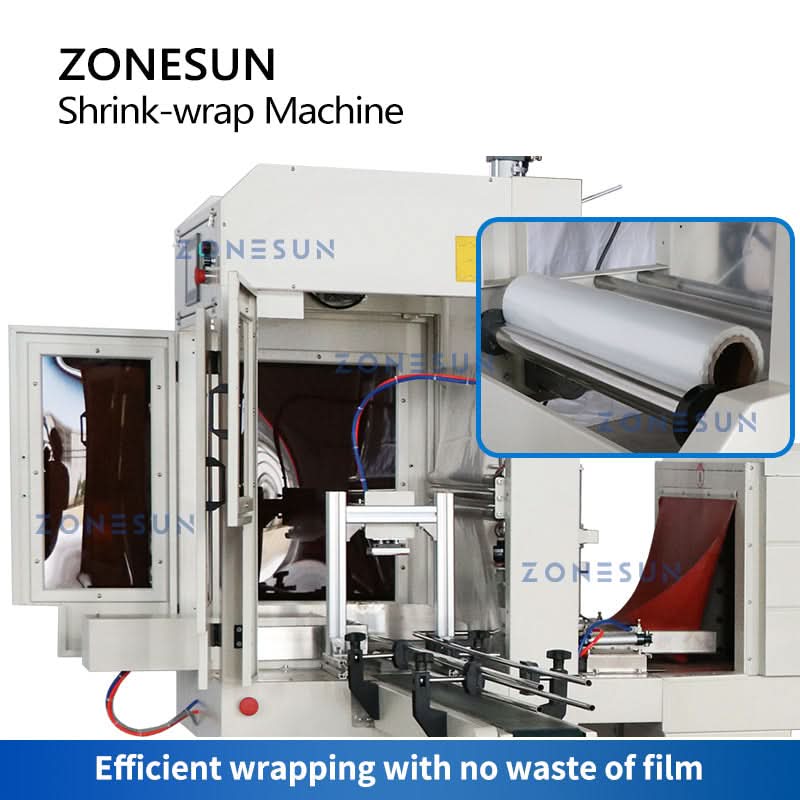

WRAPPING



Automatically arrange the bottles, dispense the shrink film, wrap the bottles, and seal the bottles, which is efficient with no waste of film.







SHRINKING

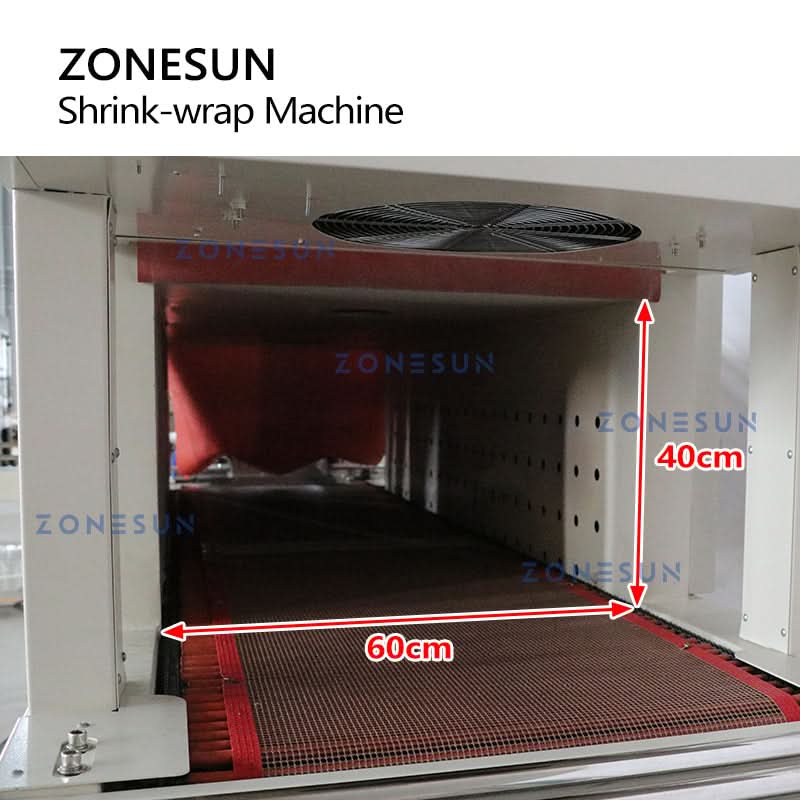

Tunnel: 180cm long, 60cm wide, and 40cm high.
3 motors for hot air circulation.
All-day use, heavy-duty construction.
