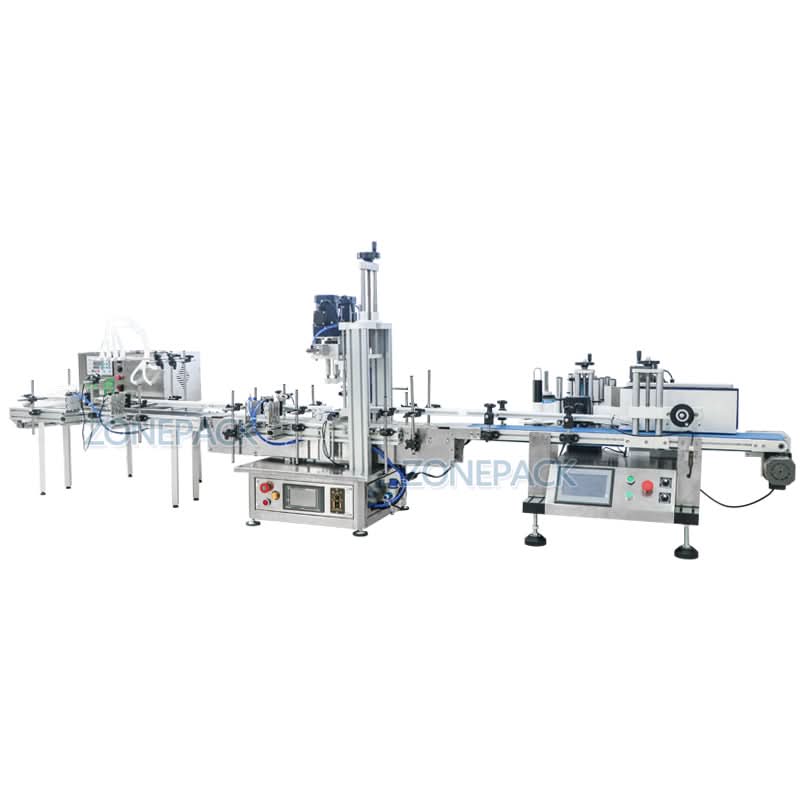

ZONESUN Automatic Liquid Filling Capping Labeling Machine Production Line
This compact automatic production line integrates liquid filling, bottle capping, and sticker labeling into one streamlined system, ideal for small-scale manufacturing. Designed to save workspace and boost efficiency, it supports a wide range of products in the food, beverage, cosmetics, daily chemical, and pharmaceutical industries. With precise filling control and stable performance, it’s perfect for businesses seeking automation without sacrificing flexibility. Please confirm your port for accurate sea freight pricing.
Parameter Specification
Power Supply Voltage 110/220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle size and liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01–999.9 seconds
Count Range 1–99,999 times
Package Size 1110 × 650 × 420 mm
Gross Weight 46.5 kg
Filling Volume 3–1000 ml (220V) / 3–500 ml (110V recommended per nozzle due to power limits)
Air Compressor Connector Size Outer Diameter 8 mm
Bottle Height <220 mm (customizable, max height 300 mm)

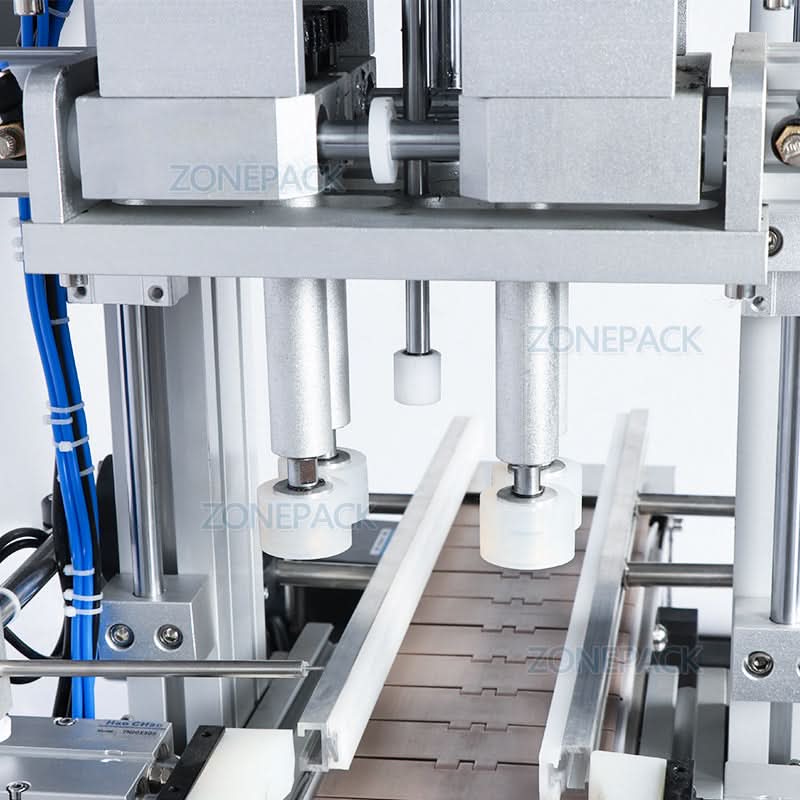

Capping Machine – Technical Specifications
Parameter Specification
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Size 1120 × 580 × 1110 mm
Conveyor Length 1117 mm
Package Weight 97.5 kg
Package Size 1160 × 610 × 1140 mm
Air Compressor Connector Size Outer Diameter 8 mm

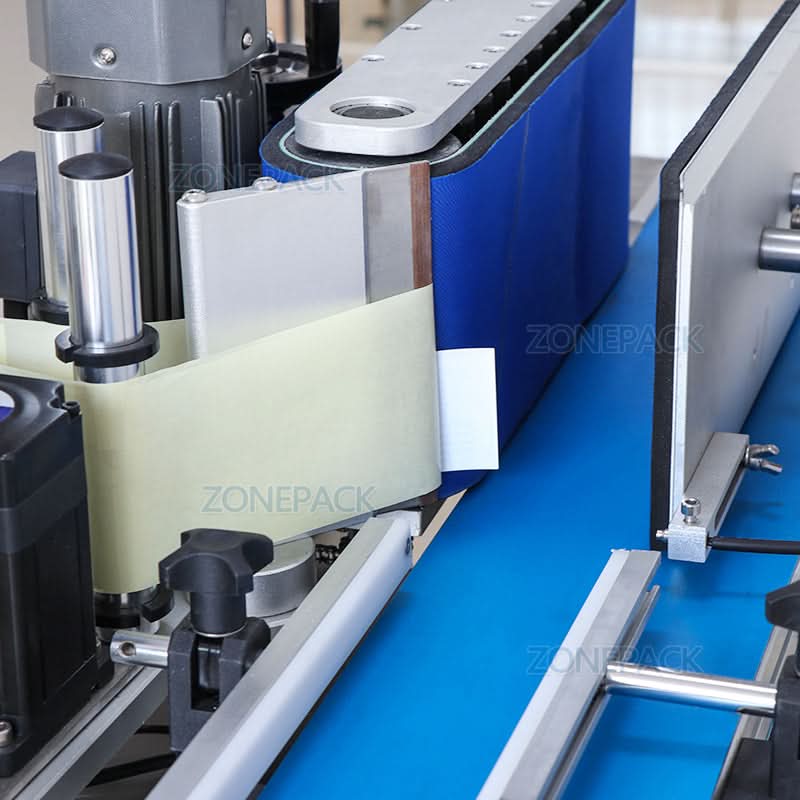

ZS-TB150 Labeling Machine – Technical Specifications
Parameter Specification
Model ZS-TB150
Machine Size 127 × 100 × 78 cm (L × W × H)
Power Supply 220V / 50Hz
Package Weight 120 kg / 125 kg (with date coder)
Packing Size 131 × 80.5 × 78 cm
Labeling Accuracy ±1 mm (excluding product and label errors)
Labeling Speed 25–50 pieces/min
Applicable Product Size Diameter: φ30–120 mm<br>Height: 25–350 mm
Applicable Label Size Length: 25–300 mm<br>Width: 15–140 mm
This compact automatic production line integrates liquid filling, bottle capping, and sticker labeling into one streamlined system, ideal for small-scale manufacturing. Designed to save workspace and boost efficiency, it supports a wide range of products in the food, beverage, cosmetics, daily chemical, and pharmaceutical industries. With precise filling control and stable performance, it’s perfect for businesses seeking automation without sacrificing flexibility. Please confirm your port for accurate sea freight pricing.
Parameter Specification
Power Supply Voltage 110/220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle size and liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01–999.9 seconds
Count Range 1–99,999 times
Package Size 1110 × 650 × 420 mm
Gross Weight 46.5 kg
Filling Volume 3–1000 ml (220V) / 3–500 ml (110V recommended per nozzle due to power limits)
Air Compressor Connector Size Outer Diameter 8 mm
Bottle Height <220 mm (customizable, max height 300 mm)
Capping Machine – Technical Specifications
Parameter Specification
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Size 1120 × 580 × 1110 mm
Conveyor Length 1117 mm
Package Weight 97.5 kg
Package Size 1160 × 610 × 1140 mm
Air Compressor Connector Size Outer Diameter 8 mm
ZS-TB150 Labeling Machine – Technical Specifications
Parameter Specification
Model ZS-TB150
Machine Size 127 × 100 × 78 cm (L × W × H)
Power Supply 220V / 50Hz
Package Weight 120 kg / 125 kg (with date coder)
Packing Size 131 × 80.5 × 78 cm
Labeling Accuracy ±1 mm (excluding product and label errors)
Labeling Speed 25–50 pieces/min
Applicable Product Size Diameter: φ30–120 mm<br>Height: 25–350 mm
Applicable Label Size Length: 25–300 mm<br>Width: 15–140 mm
Original: $6,999.93
-70%$6,999.93
$2,099.98Description
This compact automatic production line integrates liquid filling, bottle capping, and sticker labeling into one streamlined system, ideal for small-scale manufacturing. Designed to save workspace and boost efficiency, it supports a wide range of products in the food, beverage, cosmetics, daily chemical, and pharmaceutical industries. With precise filling control and stable performance, it’s perfect for businesses seeking automation without sacrificing flexibility. Please confirm your port for accurate sea freight pricing.
Parameter Specification
Power Supply Voltage 110/220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle size and liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01–999.9 seconds
Count Range 1–99,999 times
Package Size 1110 × 650 × 420 mm
Gross Weight 46.5 kg
Filling Volume 3–1000 ml (220V) / 3–500 ml (110V recommended per nozzle due to power limits)
Air Compressor Connector Size Outer Diameter 8 mm
Bottle Height <220 mm (customizable, max height 300 mm)
Capping Machine – Technical Specifications
Parameter Specification
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Size 1120 × 580 × 1110 mm
Conveyor Length 1117 mm
Package Weight 97.5 kg
Package Size 1160 × 610 × 1140 mm
Air Compressor Connector Size Outer Diameter 8 mm
ZS-TB150 Labeling Machine – Technical Specifications
Parameter Specification
Model ZS-TB150
Machine Size 127 × 100 × 78 cm (L × W × H)
Power Supply 220V / 50Hz
Package Weight 120 kg / 125 kg (with date coder)
Packing Size 131 × 80.5 × 78 cm
Labeling Accuracy ±1 mm (excluding product and label errors)
Labeling Speed 25–50 pieces/min
Applicable Product Size Diameter: φ30–120 mm<br>Height: 25–350 mm
Applicable Label Size Length: 25–300 mm<br>Width: 15–140 mm
