ZONESUN ZS-FAL180C8 Automatic Paste Filling, Capping Labeling Machine Production Line
Item Specification
Model ZS-GY2C Filling Machine
Voltage Supply 220/110V 50/60Hz
Power 130W
Filling Accuracy ≤ ± 0.5%
Filling Speed 10–20 bottles/min
Filling Volume 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml
Conveyor Size 200 × 10 cm (L × W)
Filling Nozzle Size Φ10 mm
Equipped Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Air Consumption ≥ 0.1 m³/min

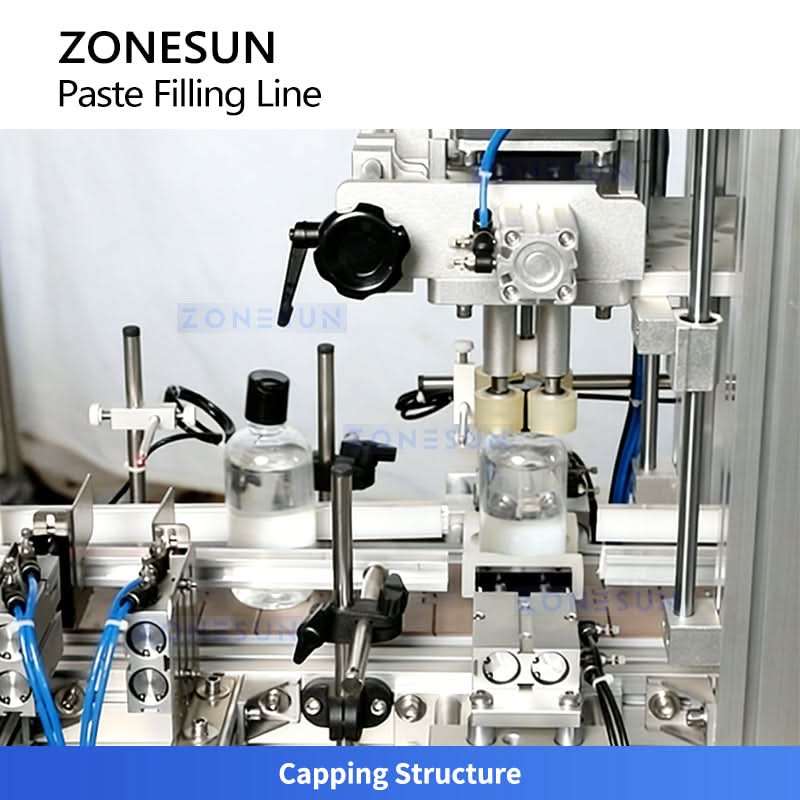

Capping Machine
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depending on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size Outer Diameter 8 mm
Machine Size 1200 × 610 × 950 mm
Package Size 1150 × 640 × 1120 mm
Net Weight / Gross Weight 69 kg / 100 kg
Model ZS-TB500A Labeling Machine
Voltage 110V-60Hz / 220V-50Hz
Working Speed 20–60 bottles/min
Suitable Labeling Size 15–140 mm (Width) × 25–300 mm (Length)
Roll Inner Diameter Φ75 mm
Roll Outer Diameter Φ250 mm
Suitable Bottle Diameter Approx. 30–100 mm
Conveyor Size Approx. 1310 × 100 mm
Machine Size 1240 × 680 × 890 mm
Package Size 1390 × 690 × 910 mm
Item Specification
Model ZS-GY2C Filling Machine
Voltage Supply 220/110V 50/60Hz
Power 130W
Filling Accuracy ≤ ± 0.5%
Filling Speed 10–20 bottles/min
Filling Volume 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml
Conveyor Size 200 × 10 cm (L × W)
Filling Nozzle Size Φ10 mm
Equipped Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Air Consumption ≥ 0.1 m³/min
Capping Machine
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depending on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size Outer Diameter 8 mm
Machine Size 1200 × 610 × 950 mm
Package Size 1150 × 640 × 1120 mm
Net Weight / Gross Weight 69 kg / 100 kg
Model ZS-TB500A Labeling Machine
Voltage 110V-60Hz / 220V-50Hz
Working Speed 20–60 bottles/min
Suitable Labeling Size 15–140 mm (Width) × 25–300 mm (Length)
Roll Inner Diameter Φ75 mm
Roll Outer Diameter Φ250 mm
Suitable Bottle Diameter Approx. 30–100 mm
Conveyor Size Approx. 1310 × 100 mm
Machine Size 1240 × 680 × 890 mm
Package Size 1390 × 690 × 910 mm
Original: $7,248.00
-70%$7,248.00
$2,174.40Description
Item Specification
Model ZS-GY2C Filling Machine
Voltage Supply 220/110V 50/60Hz
Power 130W
Filling Accuracy ≤ ± 0.5%
Filling Speed 10–20 bottles/min
Filling Volume 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml
Conveyor Size 200 × 10 cm (L × W)
Filling Nozzle Size Φ10 mm
Equipped Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Air Consumption ≥ 0.1 m³/min
Capping Machine
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depending on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size Outer Diameter 8 mm
Machine Size 1200 × 610 × 950 mm
Package Size 1150 × 640 × 1120 mm
Net Weight / Gross Weight 69 kg / 100 kg
Model ZS-TB500A Labeling Machine
Voltage 110V-60Hz / 220V-50Hz
Working Speed 20–60 bottles/min
Suitable Labeling Size 15–140 mm (Width) × 25–300 mm (Length)
Roll Inner Diameter Φ75 mm
Roll Outer Diameter Φ250 mm
Suitable Bottle Diameter Approx. 30–100 mm
Conveyor Size Approx. 1310 × 100 mm
Machine Size 1240 × 680 × 890 mm
Package Size 1390 × 690 × 910 mm
