ZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling Machine

The ZONESUN ZS-DPYT1500A is a high‑precision liquid filling machine designed for efficient, mess‑free operation. Featuring intelligent induction control, it supports manual, automatic, and sensing modes for versatile use across food, beverage, cosmetic, and light industrial applications. Its heat‑resistant dual‑pump system enables simultaneous or independent filling, while the detachable design makes cleaning and maintenance simple. Engineered for accuracy, durability, and user‑friendly operation, it is an ideal choice for businesses seeking reliable filling performance.

parameters：
Voltage：110V/220V
Power supply device input voltage：100V-240V
machine input voltage：12V 5A DC power supply
Filling time：0.1S-999min
max flow rate：1.5/3L per minFilling range volume：5ml-3000ml/2ml-1500mlFilling error：+/-1%
Anti-drip function：yes
control method：Manual, automatic, intelligent sensing

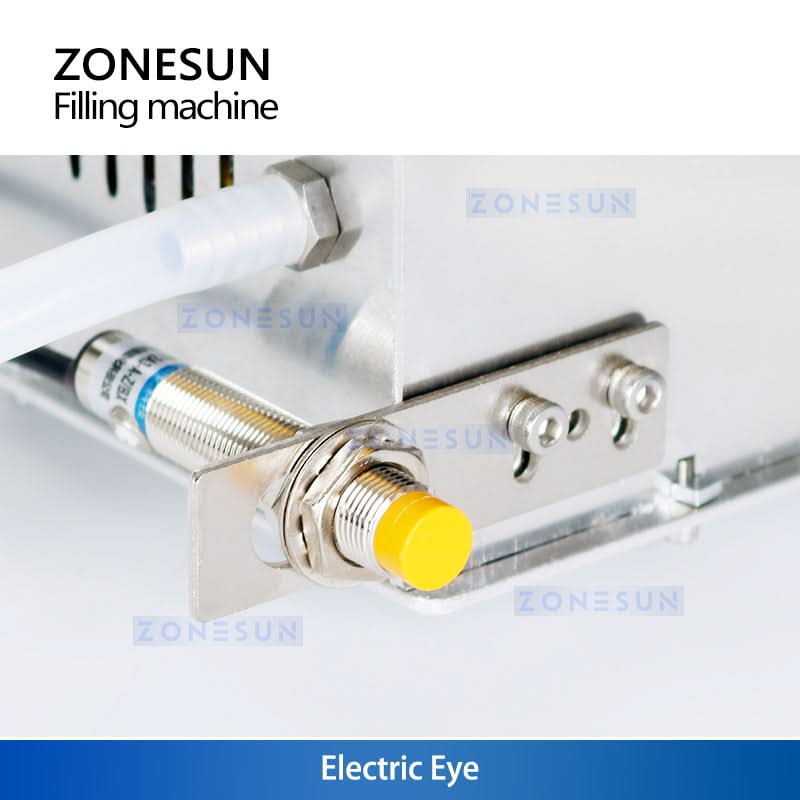

Intelligent sensing distance：0-5mm
Stand height：Adjustable up to 255 mm

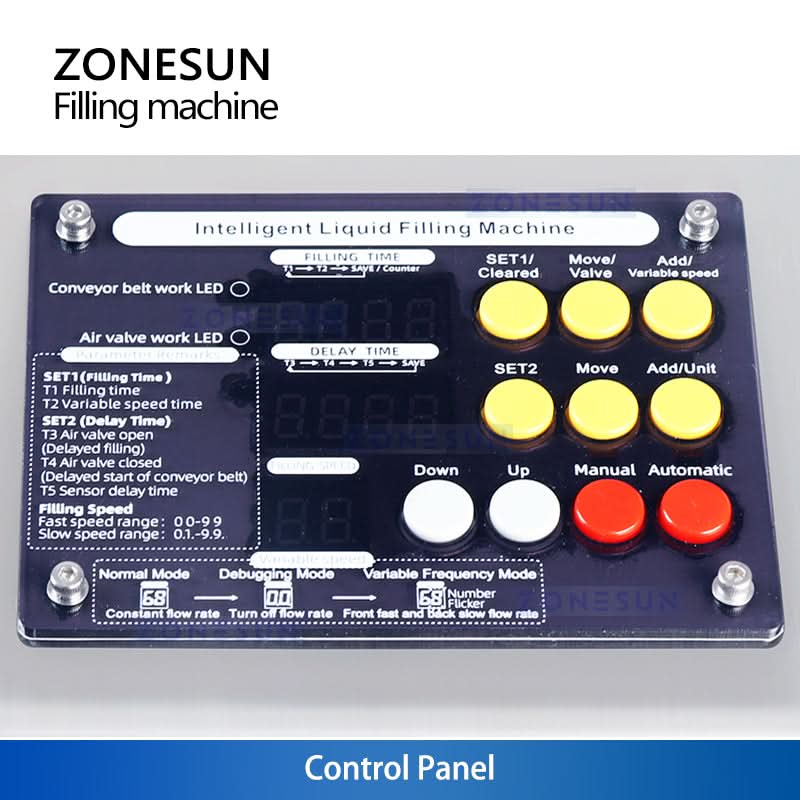

Working mode：

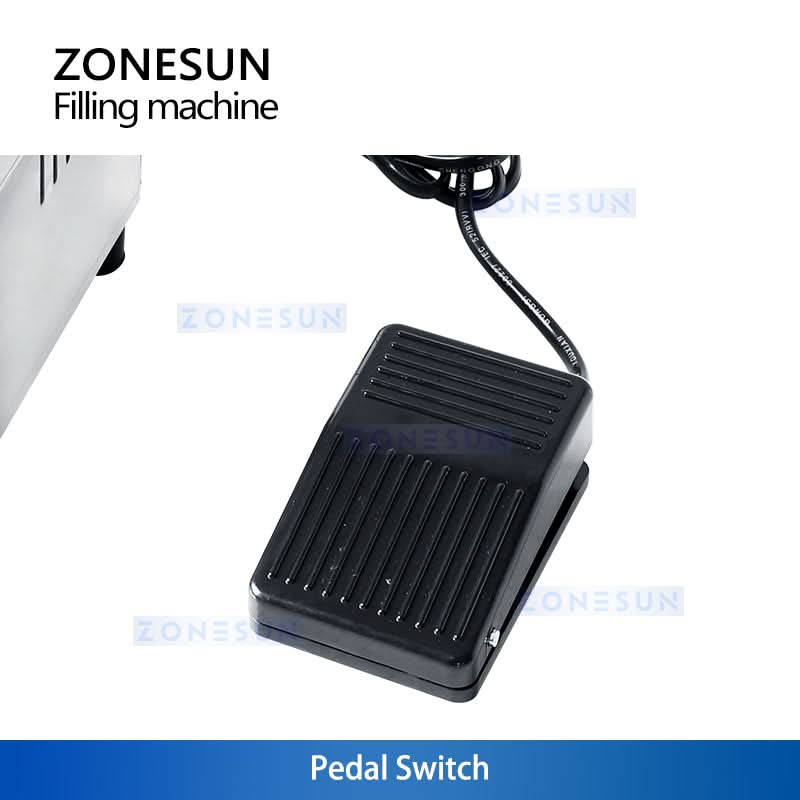

1.When the red light is on, it means that the smart sensor function and foot switch function are available. You can connect the smart sensor switch line or foot switch line at the control port.
2.When the green light is on, it indicates that the pump is working, and the green light is off, it indicates that the pump has stopped working. It is also a jog function button. Press once for filling
3.Yellow light: It is a manual switch, which can set the filling time and volume, and then press the yellow button to continuously filling,

ZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling Machine

The ZONESUN ZS-DPYT1500A is a high‑precision liquid filling machine designed for efficient, mess‑free operation. Featuring intelligent induction control, it supports manual, automatic, and sensing modes for versatile use across food, beverage, cosmetic, and light industrial applications. Its heat‑resistant dual‑pump system enables simultaneous or independent filling, while the detachable design makes cleaning and maintenance simple. Engineered for accuracy, durability, and user‑friendly operation, it is an ideal choice for businesses seeking reliable filling performance.

parameters：
Voltage：110V/220V
Power supply device input voltage：100V-240V
machine input voltage：12V 5A DC power supply
Filling time：0.1S-999min
max flow rate：1.5/3L per minFilling range volume：5ml-3000ml/2ml-1500mlFilling error：+/-1%
Anti-drip function：yes
control method：Manual, automatic, intelligent sensing
Intelligent sensing distance：0-5mm
Stand height：Adjustable up to 255 mm

Working mode：
1.When the red light is on, it means that the smart sensor function and foot switch function are available. You can connect the smart sensor switch line or foot switch line at the control port.
2.When the green light is on, it indicates that the pump is working, and the green light is off, it indicates that the pump has stopped working. It is also a jog function button. Press once for filling
3.Yellow light: It is a manual switch, which can set the filling time and volume, and then press the yellow button to continuously filling,

ZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling MachineZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling Machine
Select Voltage
Select Model
From $26.19

Original: $87.30

-70%
ZONESUN ZS-DPYT1500A Intelligent Heat‑Resistant Liquid Filling Machine—

$87.30

$26.19

Description

The ZONESUN ZS-DPYT1500A is a high‑precision liquid filling machine designed for efficient, mess‑free operation. Featuring intelligent induction control, it supports manual, automatic, and sensing modes for versatile use across food, beverage, cosmetic, and light industrial applications. Its heat‑resistant dual‑pump system enables simultaneous or independent filling, while the detachable design makes cleaning and maintenance simple. Engineered for accuracy, durability, and user‑friendly operation, it is an ideal choice for businesses seeking reliable filling performance.

parameters：
Voltage：110V/220V
Power supply device input voltage：100V-240V
machine input voltage：12V 5A DC power supply
Filling time：0.1S-999min
max flow rate：1.5/3L per minFilling range volume：5ml-3000ml/2ml-1500mlFilling error：+/-1%
Anti-drip function：yes
control method：Manual, automatic, intelligent sensing
Intelligent sensing distance：0-5mm
Stand height：Adjustable up to 255 mm

Working mode：
1.When the red light is on, it means that the smart sensor function and foot switch function are available. You can connect the smart sensor switch line or foot switch line at the control port.
2.When the green light is on, it indicates that the pump is working, and the green light is off, it indicates that the pump has stopped working. It is also a jog function button. Press once for filling
3.Yellow light: It is a manual switch, which can set the filling time and volume, and then press the yellow button to continuously filling,
