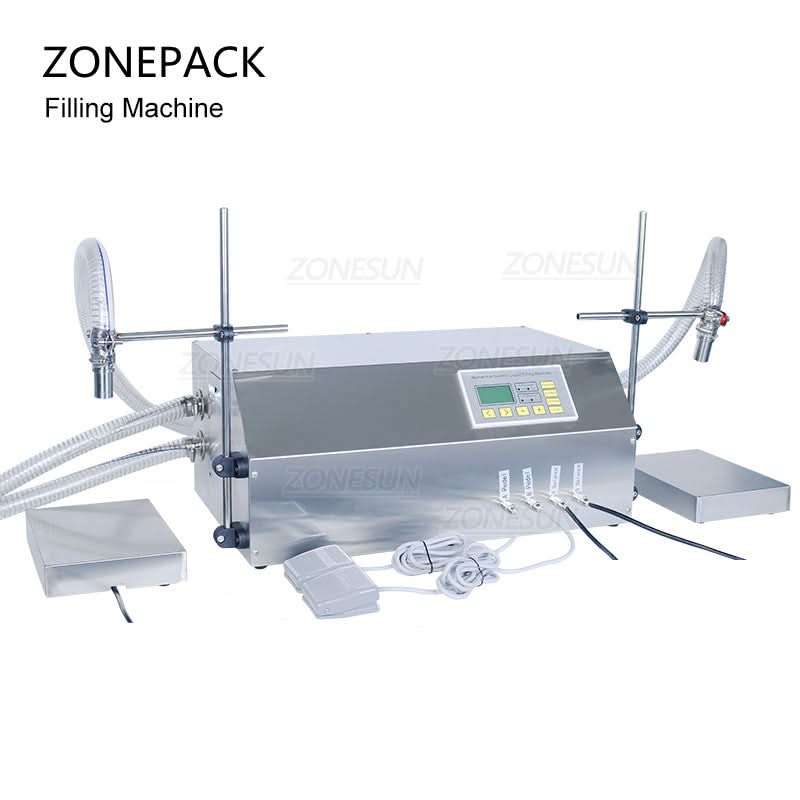

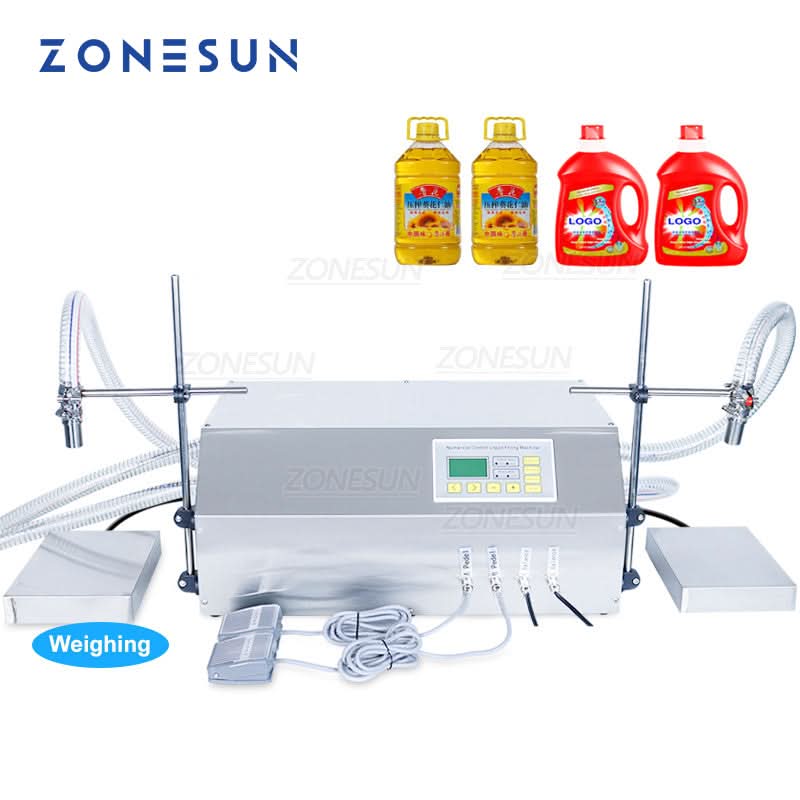

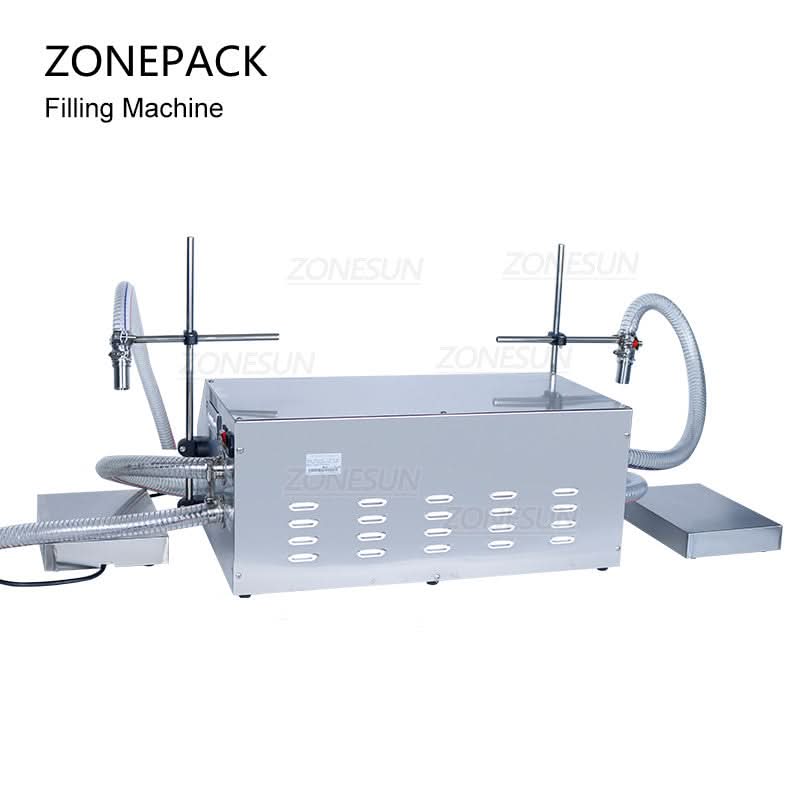

ZONESUN ZS-DP432W Dual Nozzle Liquid Filling Machine for Oil & Beverage
The ZS-DP432W is a high-efficiency semi-automatic liquid filling machine designed for precise, particle-free liquid dispensing. Equipped with dual nozzles and a powerful diaphragm pump, it delivers a maximum flow rate of 35L/min per nozzle, making it ideal for medium to large-scale filling operations. Its integrated weighing system ensures accurate volume control, reducing waste and improving consistency. Suitable for a wide range of applications including cosmetics, pharmaceuticals, beverages, and daily chemical products, this machine handles liquids such as milk, cooking oil, shampoo, and essential oils with ease. Built for reliability and speed, it's a smart solution for businesses seeking scalable, precision filling.
ZS-DP432W Liquid Filling Machine Specifications
Parameter Specification
Machine Model ZS-DP432W
Machine Power 220V / 110V, 50–60Hz, 1100W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min × 2
Filling Range 150mL–35L
Weighing Range 150g–100kg
Filling Error ±10g
Filling Nozzle Diameter 19mm / 25mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Liquid Temperature <50°C
Max Suction Distance 4m
Max Head of Delivery 4m
Memory Function (Power Loss) Available
Weighing Device Size 250mm × 180mm × 42mm
Machine Size 600mm × 370mm × 250mm (L×W×H)
Machine Weight 28kg
Package Size (Machine) 700mm × 430mm × 320mm
Package Size (Weighing Device) 300mm × 290mm × 160mm
Package Weight 30kg
Parameter Specification
Machine Model ZS-DP432W
Machine Power 220V / 110V, 50–60Hz, 1100W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min × 2
Filling Range 150mL–35L
Weighing Range 150g–100kg
Filling Error ±10g
Filling Nozzle Diameter 19mm / 25mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Liquid Temperature <50°C
Max Suction Distance 4m
Max Head of Delivery 4m
Memory Function (Power Loss) Available
Weighing Device Size 250mm × 180mm × 42mm
Machine Size 600mm × 370mm × 250mm (L×W×H)
Machine Weight 28kg
Package Size (Machine) 700mm × 430mm × 320mm
Package Size (Weighing Device) 300mm × 290mm × 160mm
Package Weight 30kg
The ZS-DP432W is a high-efficiency semi-automatic liquid filling machine designed for precise, particle-free liquid dispensing. Equipped with dual nozzles and a powerful diaphragm pump, it delivers a maximum flow rate of 35L/min per nozzle, making it ideal for medium to large-scale filling operations. Its integrated weighing system ensures accurate volume control, reducing waste and improving consistency. Suitable for a wide range of applications including cosmetics, pharmaceuticals, beverages, and daily chemical products, this machine handles liquids such as milk, cooking oil, shampoo, and essential oils with ease. Built for reliability and speed, it's a smart solution for businesses seeking scalable, precision filling.
ZS-DP432W Liquid Filling Machine Specifications
Parameter Specification
Machine Model ZS-DP432W
Machine Power 220V / 110V, 50–60Hz, 1100W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min × 2
Filling Range 150mL–35L
Weighing Range 150g–100kg
Filling Error ±10g
Filling Nozzle Diameter 19mm / 25mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Liquid Temperature <50°C
Max Suction Distance 4m
Max Head of Delivery 4m
Memory Function (Power Loss) Available
Weighing Device Size 250mm × 180mm × 42mm
Machine Size 600mm × 370mm × 250mm (L×W×H)
Machine Weight 28kg
Package Size (Machine) 700mm × 430mm × 320mm
Package Size (Weighing Device) 300mm × 290mm × 160mm
Package Weight 30kg
Parameter Specification
Machine Model ZS-DP432W
Machine Power 220V / 110V, 50–60Hz, 1100W
Machine Pump Diaphragm Pump
Max Flow Rate 35L/min × 2
Filling Range 150mL–35L
Weighing Range 150g–100kg
Filling Error ±10g
Filling Nozzle Diameter 19mm / 25mm
Hose Diameter 19mm (ID) / 25mm (OD) & 25mm (ID) / 32mm (OD)
Hose Length 3m (inlet) / 1m (outlet)
Liquid Temperature <50°C
Max Suction Distance 4m
Max Head of Delivery 4m
Memory Function (Power Loss) Available
Weighing Device Size 250mm × 180mm × 42mm
Machine Size 600mm × 370mm × 250mm (L×W×H)
Machine Weight 28kg
Package Size (Machine) 700mm × 430mm × 320mm
Package Size (Weighing Device) 300mm × 290mm × 160mm
Package Weight 30kg
$235.85
Original: $786.18
-70%ZONESUN ZS-DP432W Dual Nozzle Liquid Filling Machine for Oil & Beverage—
$786.18
$235.85Description
