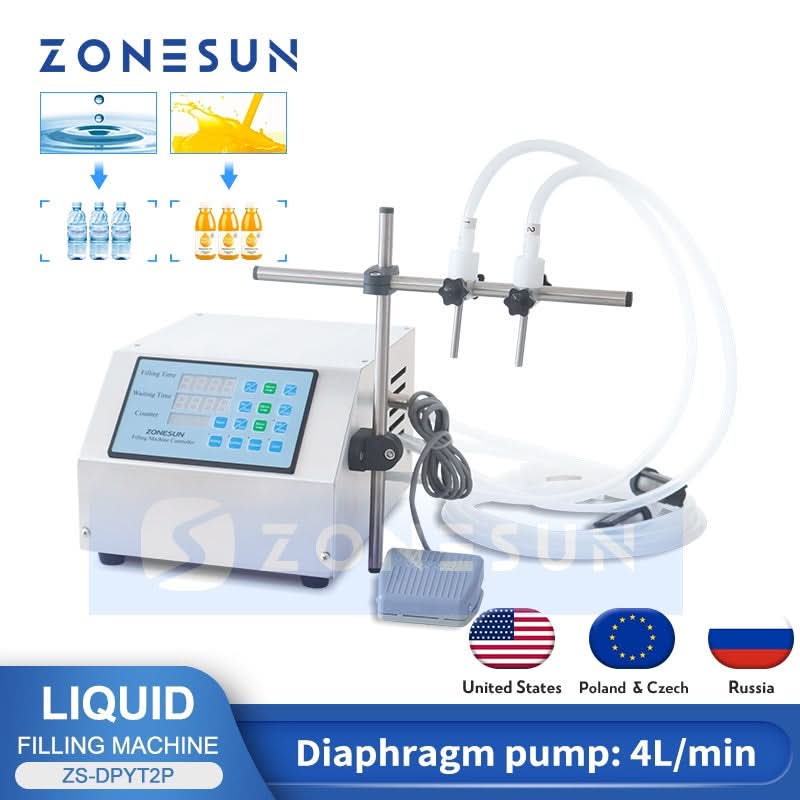

ZONESUN ZS-DPYT2P Semi-Automatic Liquid Filling Machine 50–4000mL Bottles

Product image 1
1 / 7
+2

ZONESUN ZS-DPYT2P Semi-Automatic Liquid Filling Machine 50–4000mL Bottles

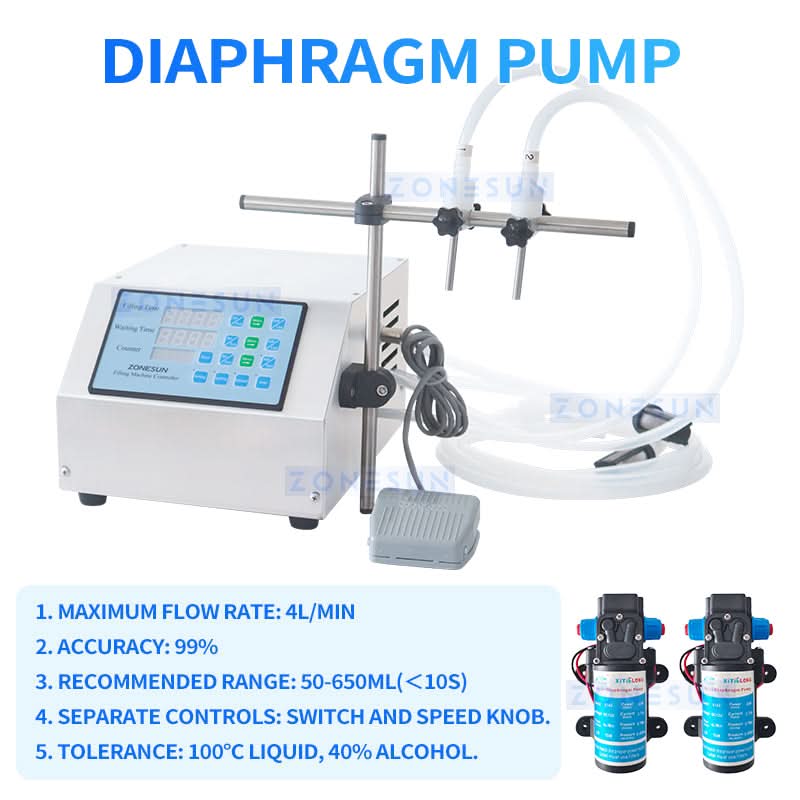

The ZS-DPYT2P is a semi-automatic digital liquid filling machine designed for precise and efficient filling of beverages, water, perfume, and other low-viscosity liquids. Ideal for use in pharmaceutical, food, and daily chemical industries, it features dual pumps for enhanced flow control and adjustable volume settings. Its compact design makes it suitable for tabletop operations, while the digital interface ensures easy calibration and repeatable accuracy. Note: not recommended for foamy liquids.

ZS-DPYT2P Liquid Filling Machine Specifications
Parameter Specification
Machine Model ZS-DPYT2P
Voltage AC 220V / 110V, 50–60Hz
Power 40W × 2
Filling Range 50–4000mL
Maximum Suction Distance 1.5m
Maximum Flow Rate 4L/min
Repetitive Error ≤0.5% (depending on product density)
Outer Diameter of Nozzle 6mm
Machine Weight 5kg

ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler



Applications

  • Suitable for Beverages, wine, vinegar, soy sauce，essence of liquid skin care products, perfume and other liquid products. NOT suitable for corrosive liquids and highly viscous liquids and the liquid thicker than edible oil.Especially suitable for small batch production in medicine, chemical, food, beverage, oil, cosmetics and other industries.

  • Not suitable for disinfectant who contains high concentration of alcohol, over 40%.




ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler



Questions



  • 1. What kind of liquid to fill with the machine? Is it viscous? Is it corrosive?

  • This machine is suitable for filling LOW-VISCOUS (water-like) with NO solid particles and NON-CORROSIVE LIQUID. (ie. MCT oil based tincture, CBD Oil, essential oil, Water, Juice).If it contains alcohol, its concentration should NOT exceed 40%

  • 2. The liquid volume to be filling each time?

  • The maximum filling amount of this machine is 4L per head, not suitable for very low filling amount, such as 0.5 to 50 ml.If your liquid is a bit thick or corrosive or you requires low filling amount, please e-mail us and inform us your needs.We have other model that is suitable for you. (For viscous liquid, corrosive liquid, low filling amount, 3L/5L/6L..., 3, 4, 5...12 heads machines are all customizable.)

ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control FillerZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control FillerZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler






The ZS-DPYT2P is a semi-automatic digital liquid filling machine designed for precise and efficient filling of beverages, water, perfume, and other low-viscosity liquids. Ideal for use in pharmaceutical, food, and daily chemical industries, it features dual pumps for enhanced flow control and adjustable volume settings. Its compact design makes it suitable for tabletop operations, while the digital interface ensures easy calibration and repeatable accuracy. Note: not recommended for foamy liquids.

ZS-DPYT2P Liquid Filling Machine Specifications
Parameter Specification
Machine Model ZS-DPYT2P
Voltage AC 220V / 110V, 50–60Hz
Power 40W × 2
Filling Range 50–4000mL
Maximum Suction Distance 1.5m
Maximum Flow Rate 4L/min
Repetitive Error ≤0.5% (depending on product density)
Outer Diameter of Nozzle 6mm
Machine Weight 5kg

ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler



Applications

  • Suitable for Beverages, wine, vinegar, soy sauce，essence of liquid skin care products, perfume and other liquid products. NOT suitable for corrosive liquids and highly viscous liquids and the liquid thicker than edible oil.Especially suitable for small batch production in medicine, chemical, food, beverage, oil, cosmetics and other industries.

  • Not suitable for disinfectant who contains high concentration of alcohol, over 40%.




ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler



Questions



  • 1. What kind of liquid to fill with the machine? Is it viscous? Is it corrosive?

  • This machine is suitable for filling LOW-VISCOUS (water-like) with NO solid particles and NON-CORROSIVE LIQUID. (ie. MCT oil based tincture, CBD Oil, essential oil, Water, Juice).If it contains alcohol, its concentration should NOT exceed 40%

  • 2. The liquid volume to be filling each time?

  • The maximum filling amount of this machine is 4L per head, not suitable for very low filling amount, such as 0.5 to 50 ml.If your liquid is a bit thick or corrosive or you requires low filling amount, please e-mail us and inform us your needs.We have other model that is suitable for you. (For viscous liquid, corrosive liquid, low filling amount, 3L/5L/6L..., 3, 4, 5...12 heads machines are all customizable.)

ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control FillerZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control FillerZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler






Select Voltage
Select Ship from
From $36.00

Original: $120.00

-70%
ZONESUN ZS-DPYT2P Semi-Automatic Liquid Filling Machine 50–4000mL Bottles—

$120.00

$36.00

Description

The ZS-DPYT2P is a semi-automatic digital liquid filling machine designed for precise and efficient filling of beverages, water, perfume, and other low-viscosity liquids. Ideal for use in pharmaceutical, food, and daily chemical industries, it features dual pumps for enhanced flow control and adjustable volume settings. Its compact design makes it suitable for tabletop operations, while the digital interface ensures easy calibration and repeatable accuracy. Note: not recommended for foamy liquids.

ZS-DPYT2P Liquid Filling Machine Specifications
Parameter Specification
Machine Model ZS-DPYT2P
Voltage AC 220V / 110V, 50–60Hz
Power 40W × 2
Filling Range 50–4000mL
Maximum Suction Distance 1.5m
Maximum Flow Rate 4L/min
Repetitive Error ≤0.5% (depending on product density)
Outer Diameter of Nozzle 6mm
Machine Weight 5kg

ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler



Applications

  • Suitable for Beverages, wine, vinegar, soy sauce，essence of liquid skin care products, perfume and other liquid products. NOT suitable for corrosive liquids and highly viscous liquids and the liquid thicker than edible oil.Especially suitable for small batch production in medicine, chemical, food, beverage, oil, cosmetics and other industries.

  • Not suitable for disinfectant who contains high concentration of alcohol, over 40%.




ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler



Questions



  • 1. What kind of liquid to fill with the machine? Is it viscous? Is it corrosive?

  • This machine is suitable for filling LOW-VISCOUS (water-like) with NO solid particles and NON-CORROSIVE LIQUID. (ie. MCT oil based tincture, CBD Oil, essential oil, Water, Juice).If it contains alcohol, its concentration should NOT exceed 40%

  • 2. The liquid volume to be filling each time?

  • The maximum filling amount of this machine is 4L per head, not suitable for very low filling amount, such as 0.5 to 50 ml.If your liquid is a bit thick or corrosive or you requires low filling amount, please e-mail us and inform us your needs.We have other model that is suitable for you. (For viscous liquid, corrosive liquid, low filling amount, 3L/5L/6L..., 3, 4, 5...12 heads machines are all customizable.)

ZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control FillerZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control FillerZS-DPYT2P 50-4000ml Semi Automatic Liquid Bottle Filling Machine Digital Control Filler
