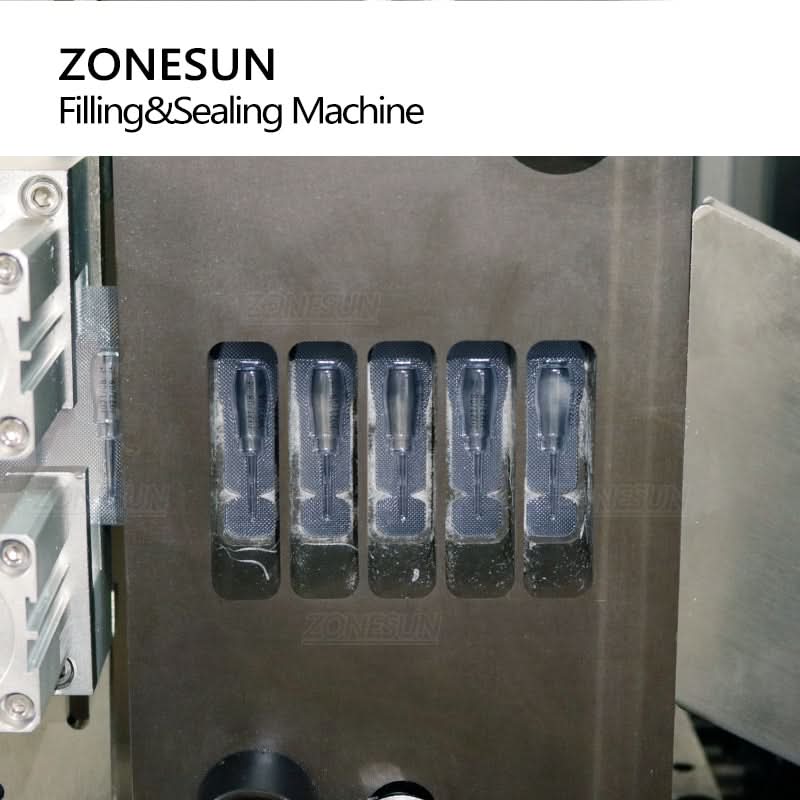

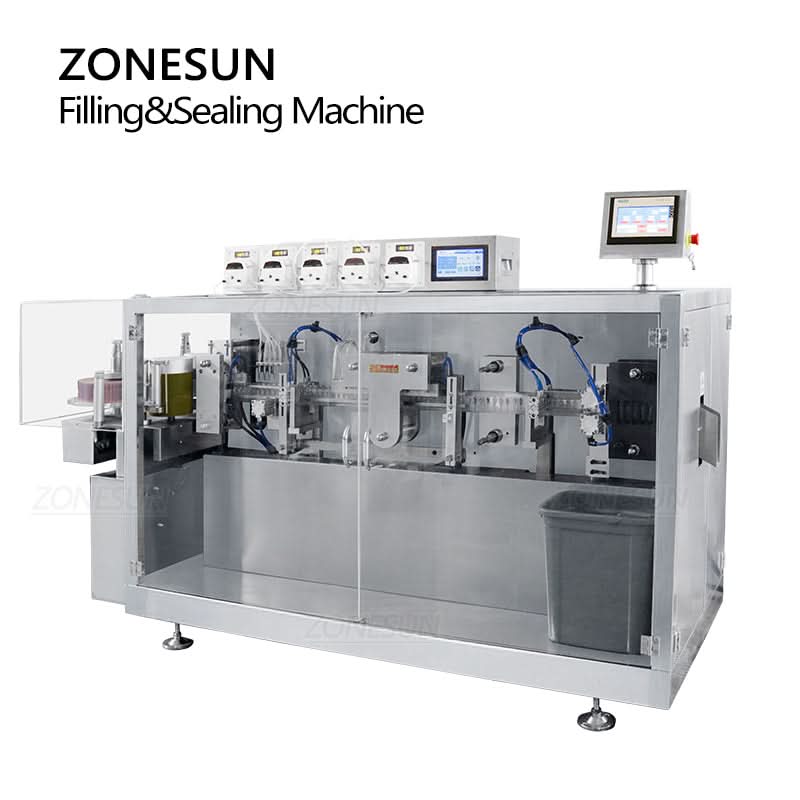

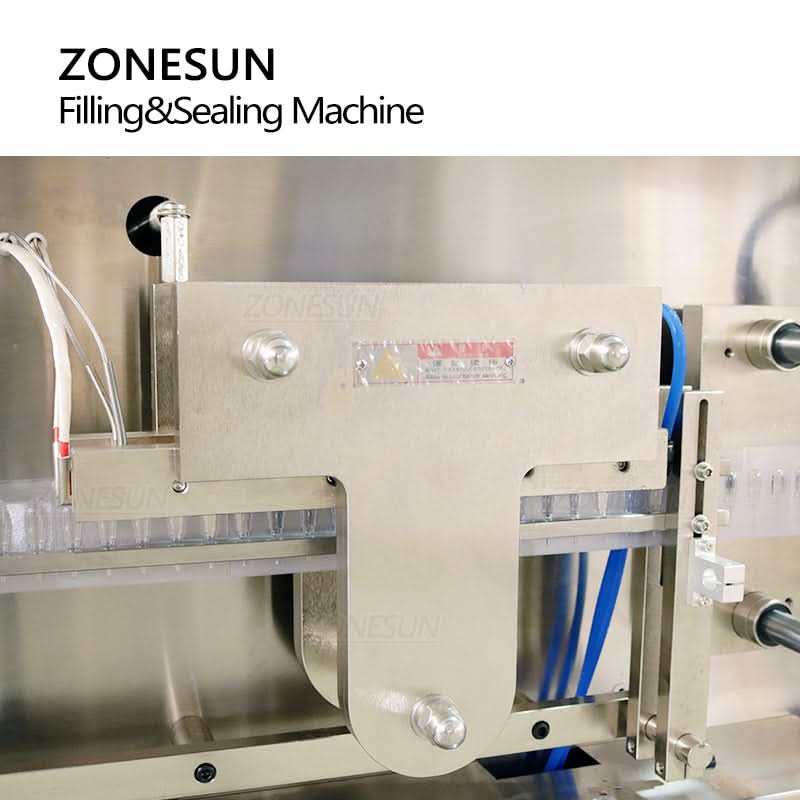

The ZS-FS120 form-fill-seal machine is a compact, multifunctional solution for producing single-dose liquid strips. Equipped with a PLC-controlled touch screen and five peristaltic pump nozzles, it ensures hygienic, precise filling without product contamination. This all-in-one system automates strip forming, liquid filling, sealing, and cutting, delivering up to 80 packs per minute. Ideal for daily chemical, pharmaceutical, and specialty chemical industries seeking efficiency and minimal footprint.

 ZS-FS120 Form-Fill-Seal Machine Specifications
Parameter Specification
Machine Model ZS-FS120
Voltage 220V–380V / 50Hz
Power 7kW
Pump Type Peristaltic Pump
Filling Nozzles 5 Nozzles
Filling Range 1–50ml
Production Capacity Approx. 80 pcs/min
Cutting Frequency 15–30 times/min
Max Forming Depth 12mm
Max Forming Plate Size 110 × 120mm
Packing Film Material PVC / PE
Machine Material Stainless Steel
Machine Dimensions Approx. 2300 × 850 × 1400mm (L × W × H)
Machine Weight Approx. 900kg
