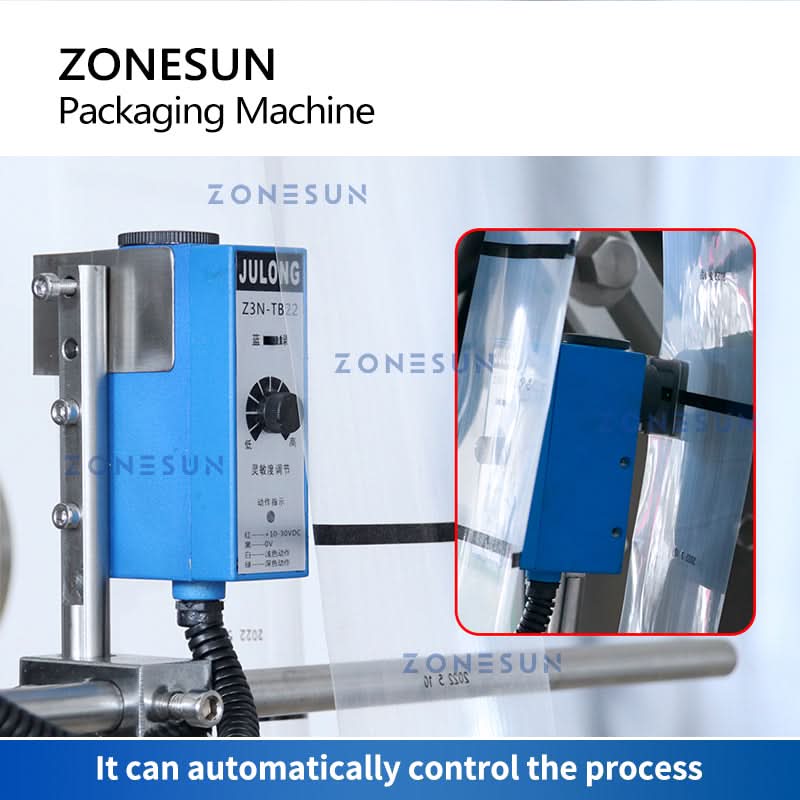

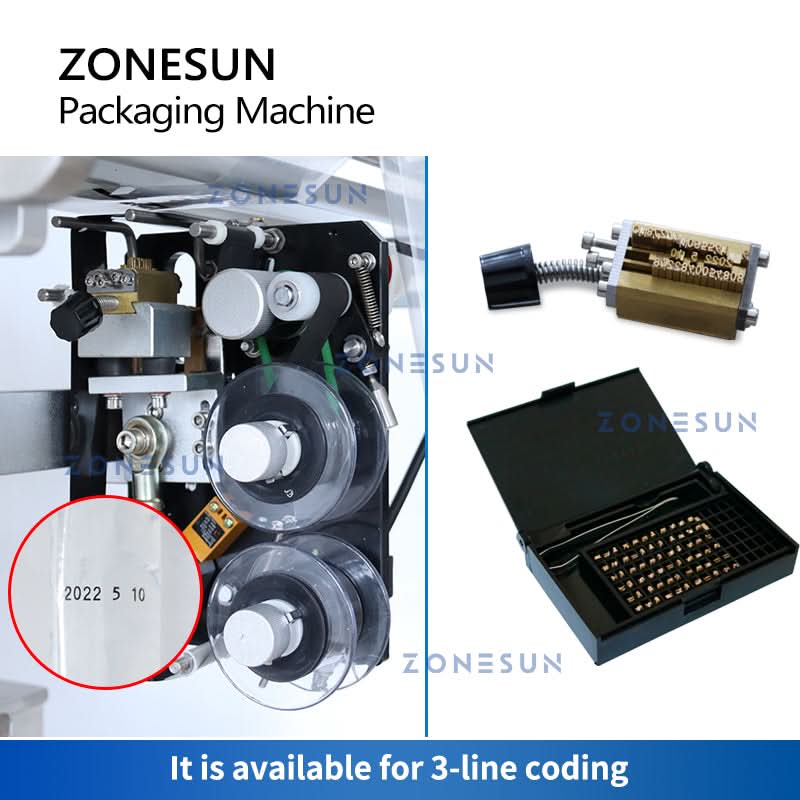

The ZONESUN ZS-S100 is a customizable sachet packaging machine designed for efficient filling and sealing of liquids such as ketchup, honey, water, and oils. Supporting back seal, three-side seal, and four-side seal formats, it features a microcomputer control panel for real-time operation data. A photoelectric tracking system ensures precise alignment of bag patterns. With integrated bag forming, filling, sealing, and coding, it offers a compact solution for high-speed production.

Parameter

Model	ZS-S100	ZS-S200	ZS-S300
Bag length	50-150mm	50-150mm	50-300mm
Bag width	25-120mm	25-120mm	70-190mm
Film width	50-260mm	50-260mm	140-400mm
Bag volume	5-100ml	50-300ml	100-1000ml
Packing speed	30-50 bags/min	25-40 bags/min	23-30 bags/min
Power supply	220V/AC 50Hz 1.5Kw	220V/AC 50Hz 1.6Kw	220V/AC 50Hz 1.8Kw
Air requirements	0.8Mpa, 150L/min	0.8Mpa, 180L/min	0.8Mpa, 250L/min
Machine size	760*1380*1700mm	760*1380*1700mm	900*1800*2040mm
Machine weight	300kg	300kg	500kg



Notice

This machine can choose back seal, three side seal and four side seal. Please contact us for confirmation.
