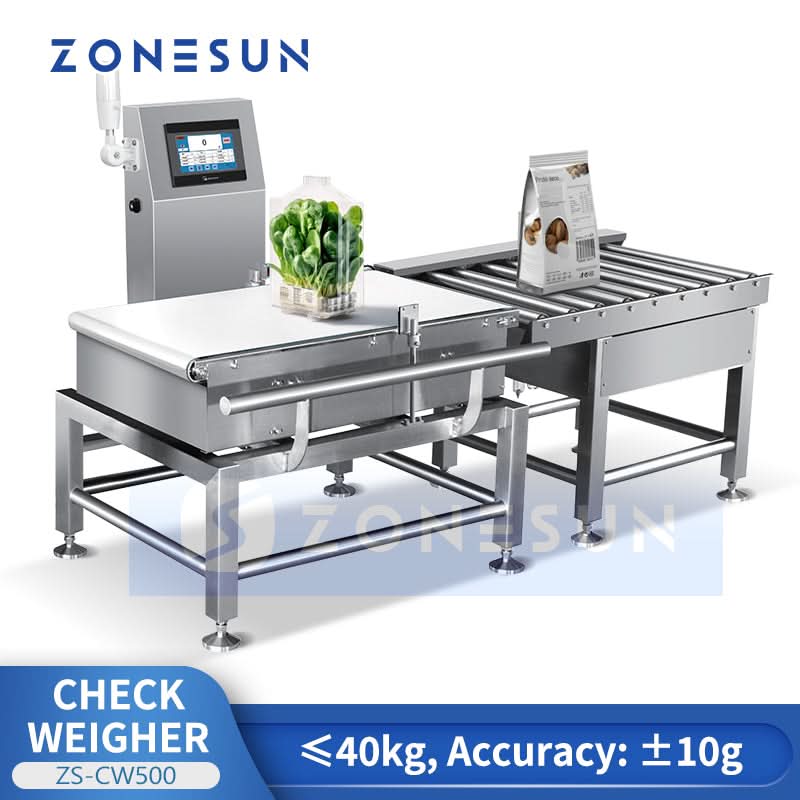

ZONESUN ZS-CW500 Checkweigher for Bottles, Bags & Cartons | High Accuracy
The ZONESUN ZS-CW500 is a precision checkweigher designed to detect product weight in bags, bottles, and cartons with exceptional accuracy. Featuring electromagnetic force restoration (EMFR) technology, it ensures reliable measurements and automatic rejection of off-spec items. With customizable parameters and robust stainless steel construction, it’s ideal for food, pharmaceutical, and industrial packaging lines seeking efficiency and quality control.
Parameter
Machine Model ZS-CW500
Rated Power 0.4 kW
Weighing Range ≤ 40 kg
Accuracy ± 10 g
Minimum Scale 1 g
Conveyor Speed 20–35 m/min
Conveyor Size 900 × 500 mm
Applicable Product Dimensions Length ≤ 650 mm, Width ≤ 490 mm
Max Throughput 30 pcs/min

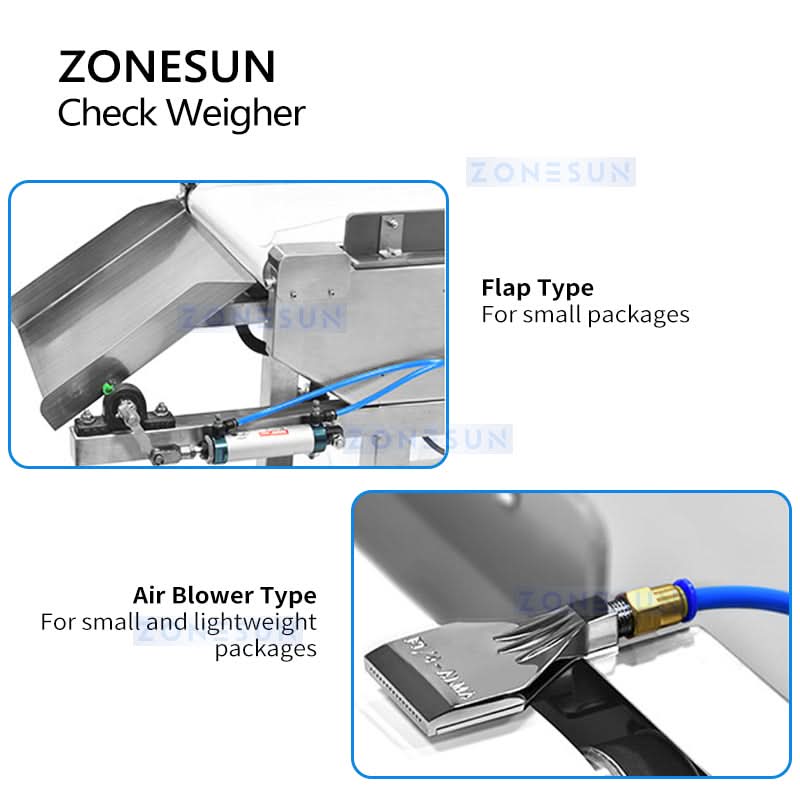

Rejection Type Standard: Push<br>Optional: Air Blower, Diverter, Flap
Parameter Configuration Up to 99 sets
Casing Material SUS 304 Stainless Steel
Air Connector Size φ8 mm
Air Supply Requirement 0.4–1 MPa
Conveyor Direction Left to right (facing control panel)
Weighing Technology EMFR (Electromagnetic Force Restoration)
Operating Environment Temperature: -30°C to 40°C<br>Humidity: 30% to 95%
Overall Dimensions 1888 mm (L) × 935 mm (W) × 1060 mm (H)
The ZONESUN ZS-CW500 is a precision checkweigher designed to detect product weight in bags, bottles, and cartons with exceptional accuracy. Featuring electromagnetic force restoration (EMFR) technology, it ensures reliable measurements and automatic rejection of off-spec items. With customizable parameters and robust stainless steel construction, it’s ideal for food, pharmaceutical, and industrial packaging lines seeking efficiency and quality control.
Parameter
Machine Model ZS-CW500
Rated Power 0.4 kW
Weighing Range ≤ 40 kg
Accuracy ± 10 g
Minimum Scale 1 g
Conveyor Speed 20–35 m/min
Conveyor Size 900 × 500 mm
Applicable Product Dimensions Length ≤ 650 mm, Width ≤ 490 mm
Max Throughput 30 pcs/min
Rejection Type Standard: Push<br>Optional: Air Blower, Diverter, Flap
Parameter Configuration Up to 99 sets
Casing Material SUS 304 Stainless Steel
Air Connector Size φ8 mm
Air Supply Requirement 0.4–1 MPa
Conveyor Direction Left to right (facing control panel)
Weighing Technology EMFR (Electromagnetic Force Restoration)
Operating Environment Temperature: -30°C to 40°C<br>Humidity: 30% to 95%
Overall Dimensions 1888 mm (L) × 935 mm (W) × 1060 mm (H)
Original: $6,380.00
-70%$6,380.00
$1,914.00Description
The ZONESUN ZS-CW500 is a precision checkweigher designed to detect product weight in bags, bottles, and cartons with exceptional accuracy. Featuring electromagnetic force restoration (EMFR) technology, it ensures reliable measurements and automatic rejection of off-spec items. With customizable parameters and robust stainless steel construction, it’s ideal for food, pharmaceutical, and industrial packaging lines seeking efficiency and quality control.
Parameter
Machine Model ZS-CW500
Rated Power 0.4 kW
Weighing Range ≤ 40 kg
Accuracy ± 10 g
Minimum Scale 1 g
Conveyor Speed 20–35 m/min
Conveyor Size 900 × 500 mm
Applicable Product Dimensions Length ≤ 650 mm, Width ≤ 490 mm
Max Throughput 30 pcs/min
Rejection Type Standard: Push<br>Optional: Air Blower, Diverter, Flap
Parameter Configuration Up to 99 sets
Casing Material SUS 304 Stainless Steel
Air Connector Size φ8 mm
Air Supply Requirement 0.4–1 MPa
Conveyor Direction Left to right (facing control panel)
Weighing Technology EMFR (Electromagnetic Force Restoration)
Operating Environment Temperature: -30°C to 40°C<br>Humidity: 30% to 95%
Overall Dimensions 1888 mm (L) × 935 mm (W) × 1060 mm (H)
