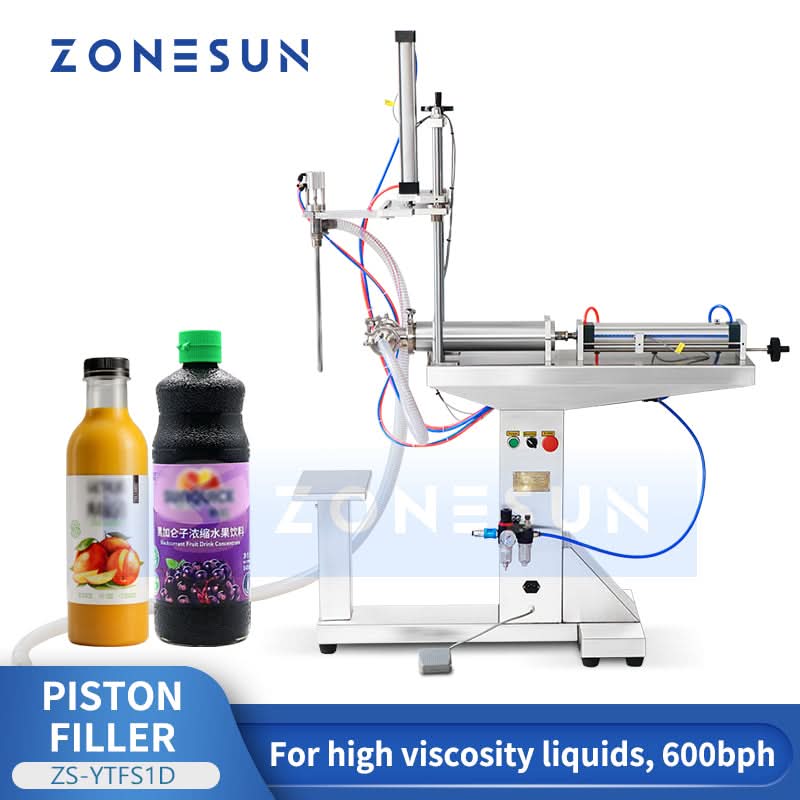

ZONESUN ZS-YTFS1D Semi-Auto Piston Filler for Viscous Liquid Products
The ZS-YTFS1D semi-automatic piston filling machine is engineered for efficient, accurate filling of viscous liquids such as creams, gels, and other personal care products. Its stand-mounted build and adjustable filling head allow for customizable volume control and easy adaptation to a wide range of containers. Powered by a combination of electric and pneumatic systems, this machine ensures smooth operation and consistent results—ideal for small to medium-scale production environments seeking reliability and flexibility.
Parameter
Model ZS-YTFS1D
Voltage 220V/50Hz or 110V/60Hz
Power 100 W
Energy Source Electric and pneumatic
Filling Nozzle 1 diving nozzle
Filling Range 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml
Filling Speed Approx. 6–10 bottles/min
Filling Accuracy ±0.5%
Air Pressure 0.4–0.6 MPa
Bottle Holder Height Customized
Package Dimensions (L×W×H) Approx. 1370 × 460 × 1020 mm
Package Weight Approx. 110
The ZS-YTFS1D semi-automatic piston filling machine is engineered for efficient, accurate filling of viscous liquids such as creams, gels, and other personal care products. Its stand-mounted build and adjustable filling head allow for customizable volume control and easy adaptation to a wide range of containers. Powered by a combination of electric and pneumatic systems, this machine ensures smooth operation and consistent results—ideal for small to medium-scale production environments seeking reliability and flexibility.
Parameter
Model ZS-YTFS1D
Voltage 220V/50Hz or 110V/60Hz
Power 100 W
Energy Source Electric and pneumatic
Filling Nozzle 1 diving nozzle
Filling Range 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml
Filling Speed Approx. 6–10 bottles/min
Filling Accuracy ±0.5%
Air Pressure 0.4–0.6 MPa
Bottle Holder Height Customized
Package Dimensions (L×W×H) Approx. 1370 × 460 × 1020 mm
Package Weight Approx. 110
Original: $839.00
-70%$839.00
$251.70Description
The ZS-YTFS1D semi-automatic piston filling machine is engineered for efficient, accurate filling of viscous liquids such as creams, gels, and other personal care products. Its stand-mounted build and adjustable filling head allow for customizable volume control and easy adaptation to a wide range of containers. Powered by a combination of electric and pneumatic systems, this machine ensures smooth operation and consistent results—ideal for small to medium-scale production environments seeking reliability and flexibility.
Parameter
Model ZS-YTFS1D
Voltage 220V/50Hz or 110V/60Hz
Power 100 W
Energy Source Electric and pneumatic
Filling Nozzle 1 diving nozzle
Filling Range 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml
Filling Speed Approx. 6–10 bottles/min
Filling Accuracy ±0.5%
Air Pressure 0.4–0.6 MPa
Bottle Holder Height Customized
Package Dimensions (L×W×H) Approx. 1370 × 460 × 1020 mm
Package Weight Approx. 110
