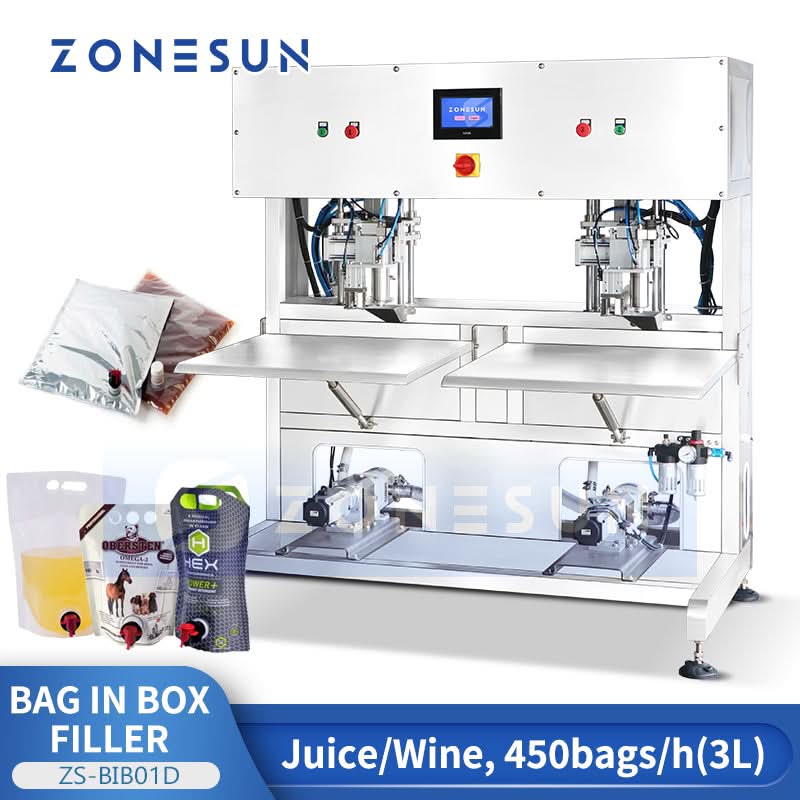

ZONESUN ZS-BIB01D Fully Automated Bag-in-Box Liquid Filling Machine for 1–30L Bags
DESCRIPTION
Maximize your liquid packaging productivity with this advanced Bag-in-Box Filling Machine. Built for high-performance operations, it supports a wide range of viscous and particulate materials—from peanut butter to chili sauce—filling up to 30L with exceptional accuracy. The servo rotor pump ensures smooth, efficient transfer, while optional nitrogen dosing enhances freshness. Ideal for food, beverage, and chemical industries, this machine simplifies bulk filling tasks, ensuring speed, hygiene, and flexibility with every bag.
Specification
Model ZS-BIB01D
Voltage 220V / 110V, 50–60Hz
Power Approx. 2.3kW
Production Speed Approx. 450 bags/hour (based on 3L filling volume)
Filling Range 1–30L (customizable)
Filling Accuracy ±0.5% (uniform materials like peanut butter)
±1% (materials with particles like jam or chili sauce)

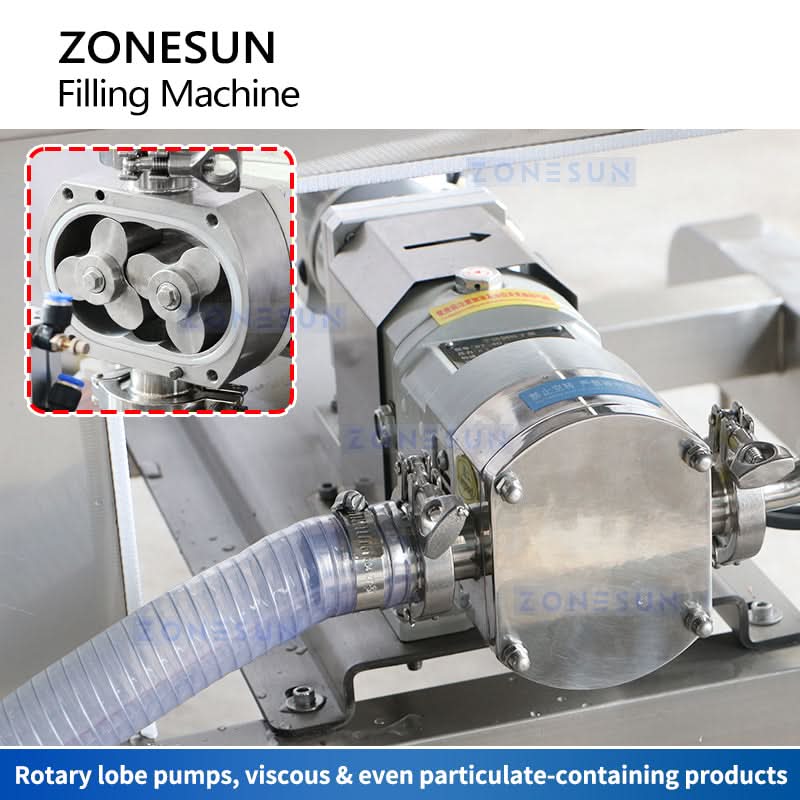

Filling Pump Type Servo rotor pump
Optional Function Nitrogen dosing
Air Pressure 0.6–0.8 MPa, 0.5 m³/min
Machine Dimensions Approx. 1510 × 950 × 1650 mm
Package Weight Approx. 286 kg
Package Size Approx. 1600 × 1400 × 1770 mm
DESCRIPTION
Maximize your liquid packaging productivity with this advanced Bag-in-Box Filling Machine. Built for high-performance operations, it supports a wide range of viscous and particulate materials—from peanut butter to chili sauce—filling up to 30L with exceptional accuracy. The servo rotor pump ensures smooth, efficient transfer, while optional nitrogen dosing enhances freshness. Ideal for food, beverage, and chemical industries, this machine simplifies bulk filling tasks, ensuring speed, hygiene, and flexibility with every bag.
Specification
Model ZS-BIB01D
Voltage 220V / 110V, 50–60Hz
Power Approx. 2.3kW
Production Speed Approx. 450 bags/hour (based on 3L filling volume)
Filling Range 1–30L (customizable)
Filling Accuracy ±0.5% (uniform materials like peanut butter)
±1% (materials with particles like jam or chili sauce)
Filling Pump Type Servo rotor pump
Optional Function Nitrogen dosing
Air Pressure 0.6–0.8 MPa, 0.5 m³/min
Machine Dimensions Approx. 1510 × 950 × 1650 mm
Package Weight Approx. 286 kg
Package Size Approx. 1600 × 1400 × 1770 mm
Original: $13,499.00
-70%$13,499.00
$4,049.70Description
DESCRIPTION
Maximize your liquid packaging productivity with this advanced Bag-in-Box Filling Machine. Built for high-performance operations, it supports a wide range of viscous and particulate materials—from peanut butter to chili sauce—filling up to 30L with exceptional accuracy. The servo rotor pump ensures smooth, efficient transfer, while optional nitrogen dosing enhances freshness. Ideal for food, beverage, and chemical industries, this machine simplifies bulk filling tasks, ensuring speed, hygiene, and flexibility with every bag.
Specification
Model ZS-BIB01D
Voltage 220V / 110V, 50–60Hz
Power Approx. 2.3kW
Production Speed Approx. 450 bags/hour (based on 3L filling volume)
Filling Range 1–30L (customizable)
Filling Accuracy ±0.5% (uniform materials like peanut butter)
±1% (materials with particles like jam or chili sauce)
Filling Pump Type Servo rotor pump
Optional Function Nitrogen dosing
Air Pressure 0.6–0.8 MPa, 0.5 m³/min
Machine Dimensions Approx. 1510 × 950 × 1650 mm
Package Weight Approx. 286 kg
Package Size Approx. 1600 × 1400 × 1770 mm
