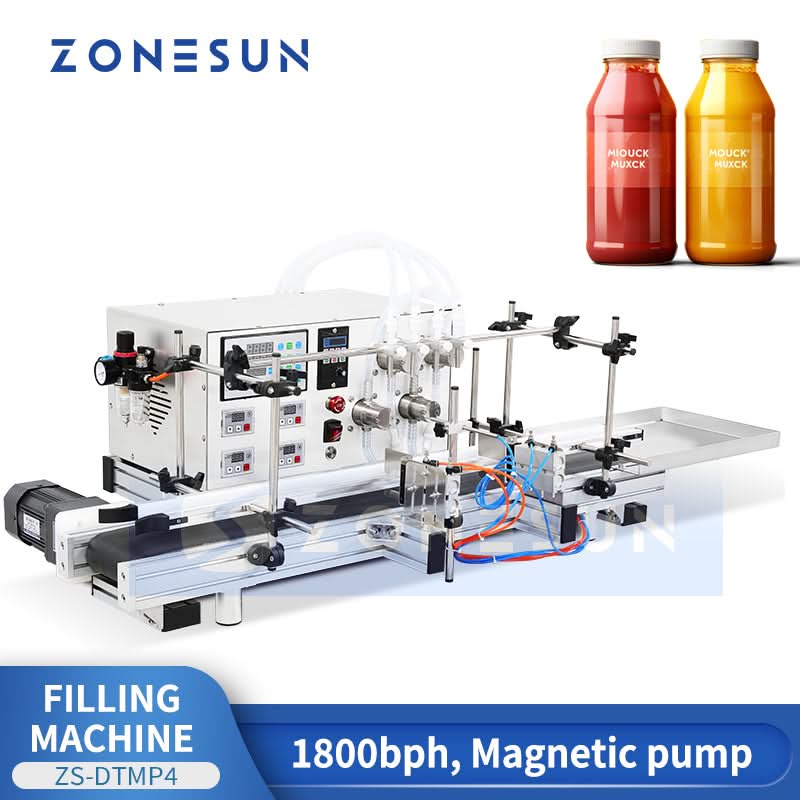

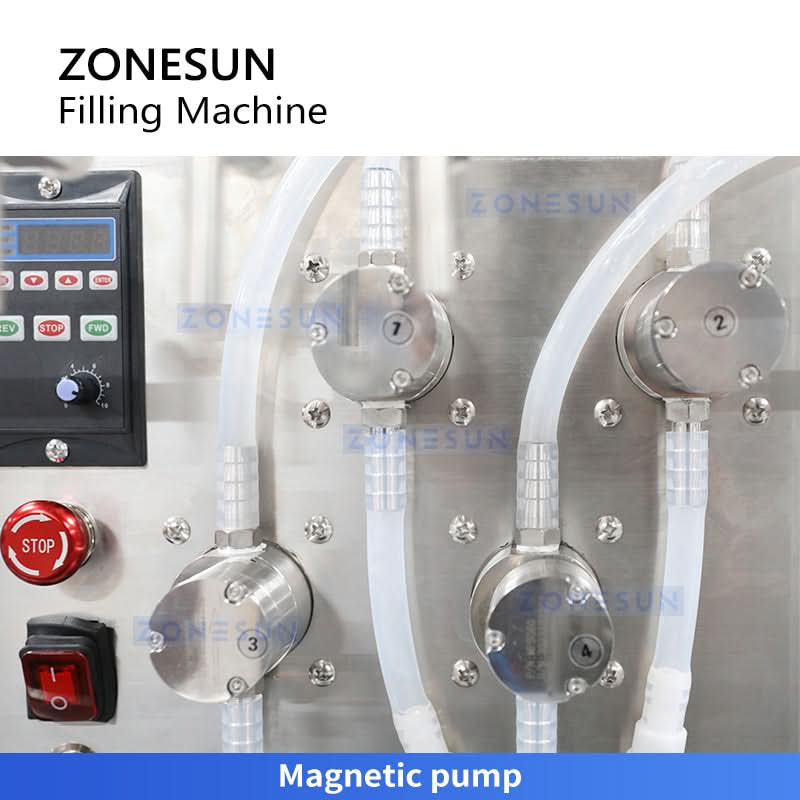

Zonesun ZS-DTMP4 Automatic 4 Nozzles Magnetic Pump Liquid Filling Machine
Application
This machine is suitable for filling low-viscosity liquid, such as juice, milk, soy sauce, essential oil, lotion, etc. It can be used in small production line, which can be connected with desktop capping machine and labeling machine, improving working efficiency.
PARAMETER
Model: ZS-DTMP4
Power supply: 110/220V 50-60HZ
Working speed: 20-30 bottles/min (based on 50-1000ml filing volume)
Air pressure: 0.3-0.4MPa
Filling accuracy: ≤ ±1% (For water)

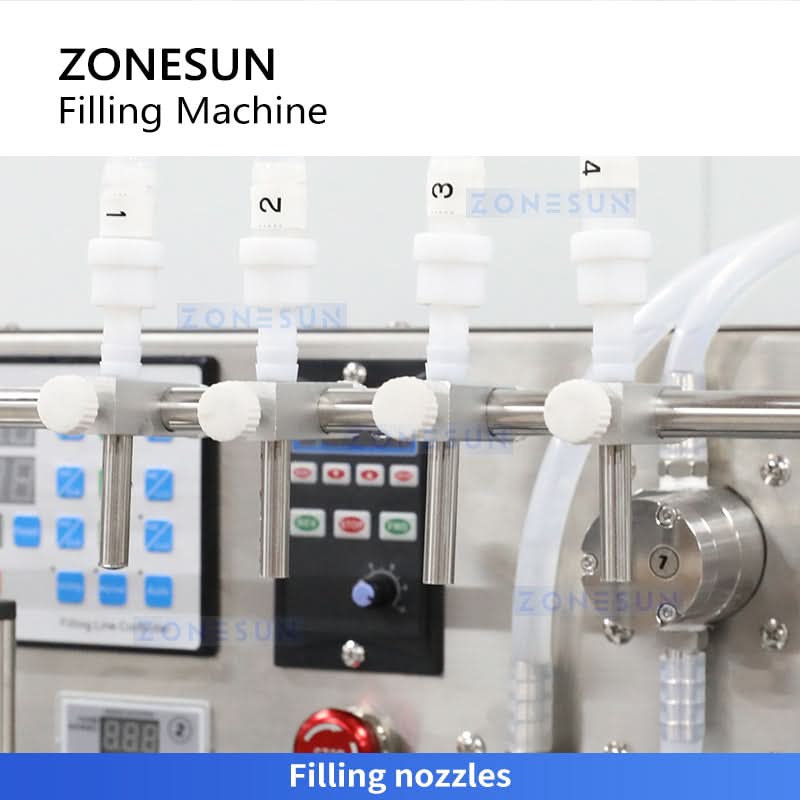

Diameter of Filling Nozzle: 6/8mm
Delay Range: 0.01-999.9s
Count Range: 1-99999 Times
Filling Volume: 3-1000ml(220V)3-500ml(110V)
Size of air compressor connector: OD8mm
Bottle height: <220mm(Can be customized,max height 300mm)
Package Size: About 1110*650*420mm
Gross weight: About 50.5kg
With anti-dripping function, can control each nozzle separately, We customize multiple nozzles filling machine.please send us message if you need it.

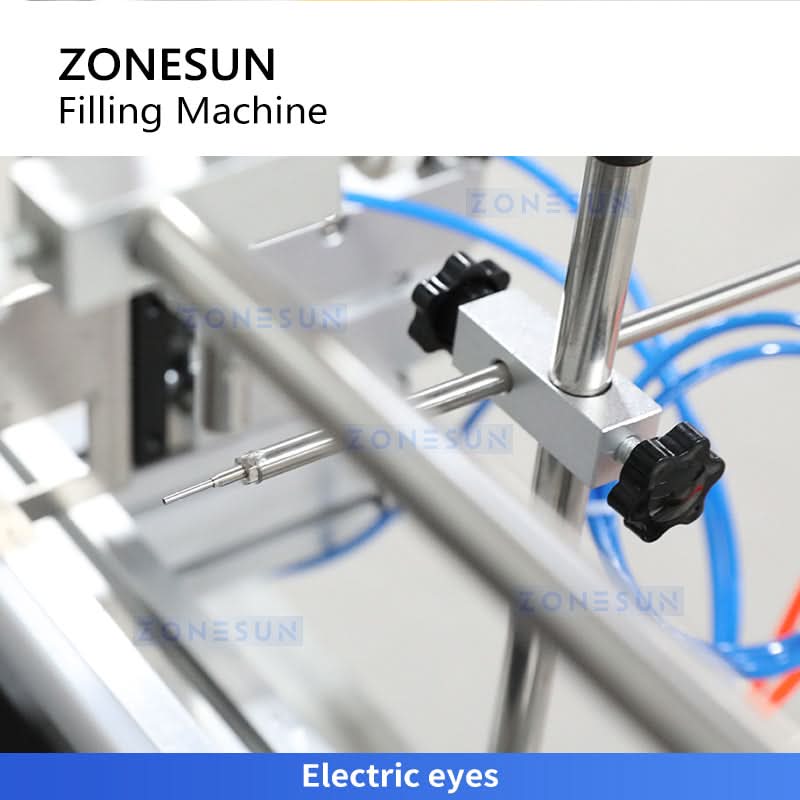

When the bottle pass through, it will detect bottles accurately and then filling, prevent from missing bottles,
The working speed of the conveyor is adjustable during using.This help the operator control the machine better and ensure the fast and stable filling of liquid.
The barometer can be used to watch the air pressure in real time. This machine should work with air compressor, customers need to buy it separately, If you need it, please contact US.
Application
This machine is suitable for filling low-viscosity liquid, such as juice, milk, soy sauce, essential oil, lotion, etc. It can be used in small production line, which can be connected with desktop capping machine and labeling machine, improving working efficiency.
PARAMETER
Model: ZS-DTMP4
Power supply: 110/220V 50-60HZ
Working speed: 20-30 bottles/min (based on 50-1000ml filing volume)
Air pressure: 0.3-0.4MPa
Filling accuracy: ≤ ±1% (For water)
Diameter of Filling Nozzle: 6/8mm
Delay Range: 0.01-999.9s
Count Range: 1-99999 Times
Filling Volume: 3-1000ml(220V)3-500ml(110V)
Size of air compressor connector: OD8mm
Bottle height: <220mm(Can be customized,max height 300mm)
Package Size: About 1110*650*420mm
Gross weight: About 50.5kg
With anti-dripping function, can control each nozzle separately, We customize multiple nozzles filling machine.please send us message if you need it.
When the bottle pass through, it will detect bottles accurately and then filling, prevent from missing bottles,
The working speed of the conveyor is adjustable during using.This help the operator control the machine better and ensure the fast and stable filling of liquid.
The barometer can be used to watch the air pressure in real time. This machine should work with air compressor, customers need to buy it separately, If you need it, please contact US.
