PARAMETER
\nModel: ZS-GPSV1
Machine voltage: 110/220V 50-60HZ
Filling range: 10-200ml / 200ml-3L / 3L-10L / 10-25L
Filling pump: Gear Pump
Filling nozzle: Regular Fixed Nozzle & Handheld Nozzle
Suitable bottle size: Customizable
Filling accuracy: ±1%
Working capacity: 900-1000 BPH (based on 300ml)
Machine casing: SUS304
Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
NOTE：Note: 110V machine needs to be connected to a transformer
\n![\"Zonesun](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_01_34ff1f56-6d4d-45ed-8b55-fdd66df3e034.jpg?v=1770447959\")
![\"Zonesun](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/6d17dad41e042976808c9242e688adc6.jpg?v=1770349868\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_02_eb04a98b-daad-4318-8209-5308f5d7f77e.jpg?v=1753087150\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_03_e77bb91e-14e2-4109-94c8-4d78cd141a0d.jpg?v=1753087151\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_04_002da7b1-393e-4eef-aeb9-6fcadf94d790.jpg?v=1753087150\")

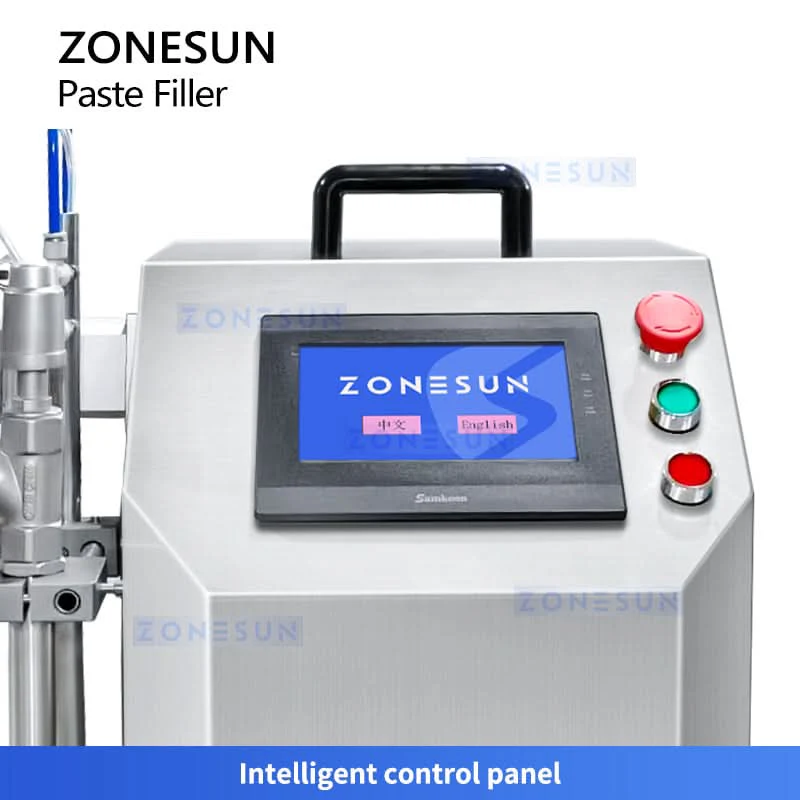

CONTROL PANEL
Touch screen control panel simplifies machine operation, parameters will be more intuitive
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_06_07ceada5-1390-484f-9aa3-cd9fa5b82643.jpg?v=1753087247\")

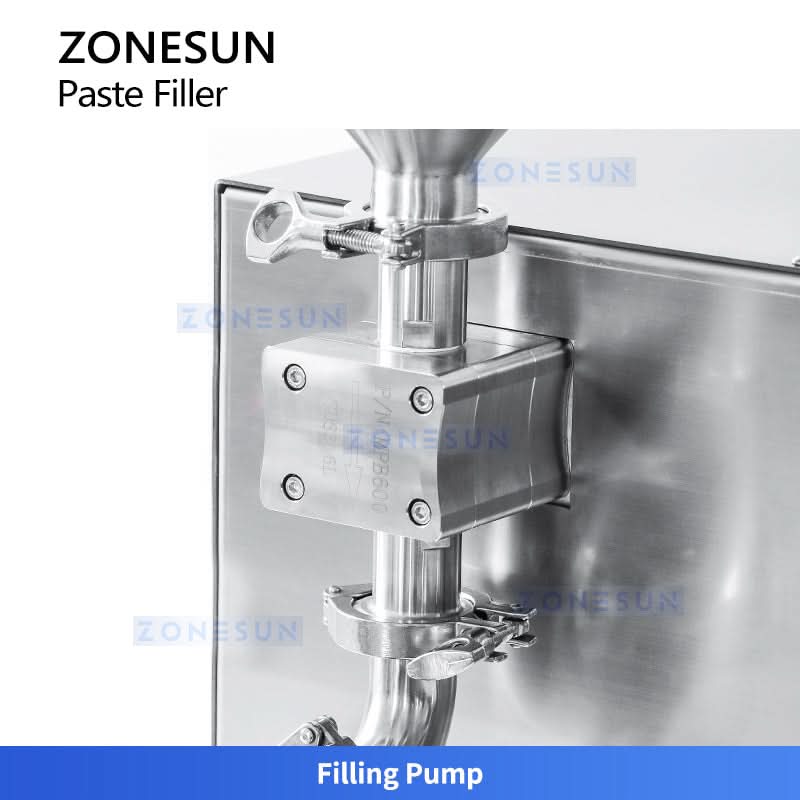

FILLING PUMP
Equipped with servo gear pump, quantitative filling simplifies machine operation
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0756/3726/0563/files/944_05_ca268f03-1ae0-415b-bc2c-2ad781122c80.jpg?v=1749111764\")

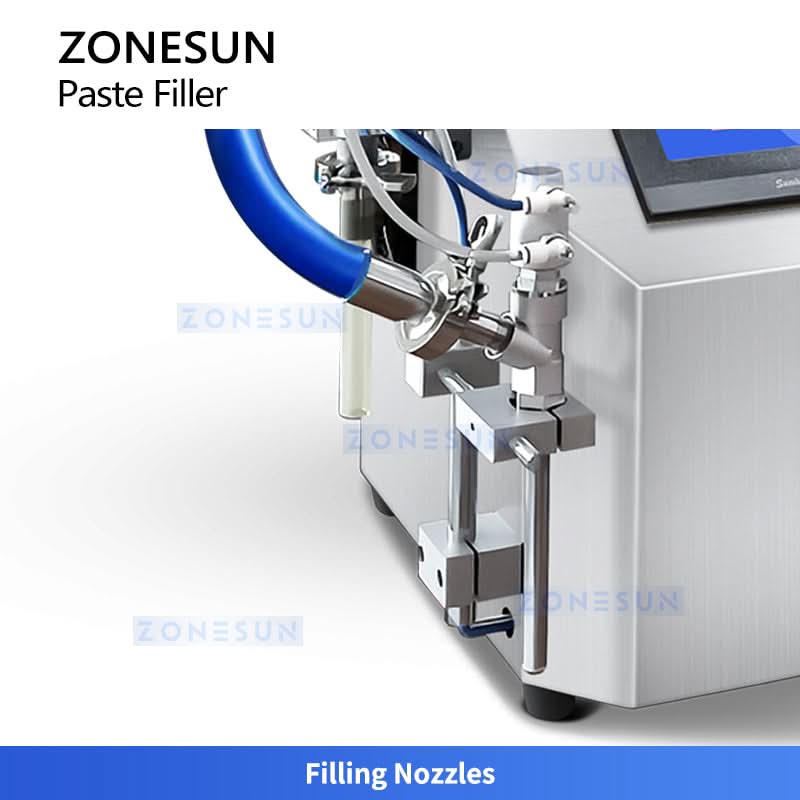

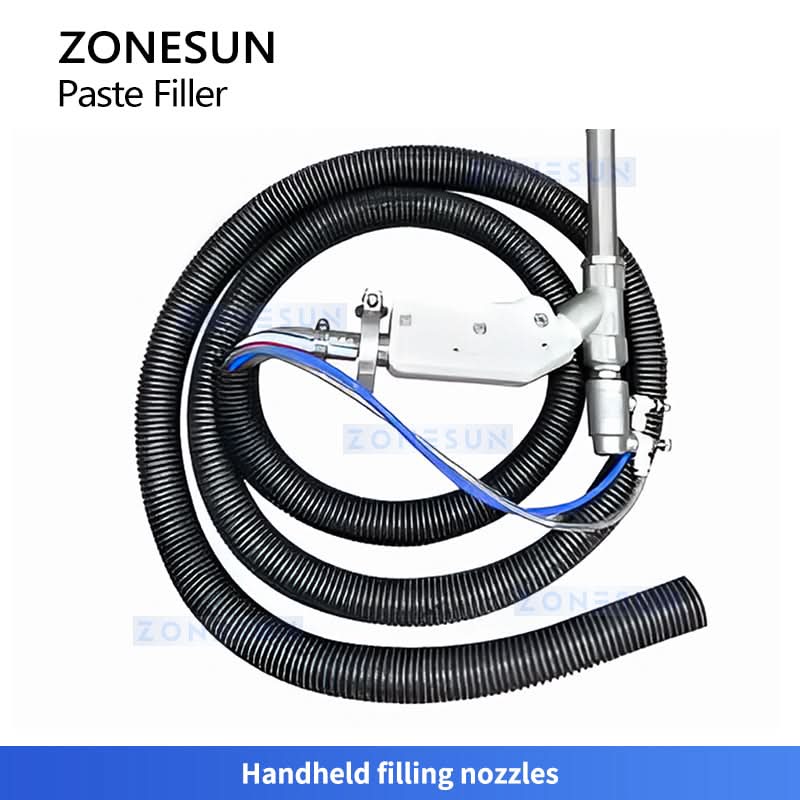

FILLING NOZZLES
Optional handheld filling nozzles for easier and flexible operation
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0756/3726/0563/files/944_07_a7626dbe-c4ca-4da3-a1c1-853fc916467f.jpg?v=1749111764\")
\n
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0756/3726/0563/files/944_08_8a417360-3b7c-402d-a919-d13f812c54fa.jpg?v=1749111764\")

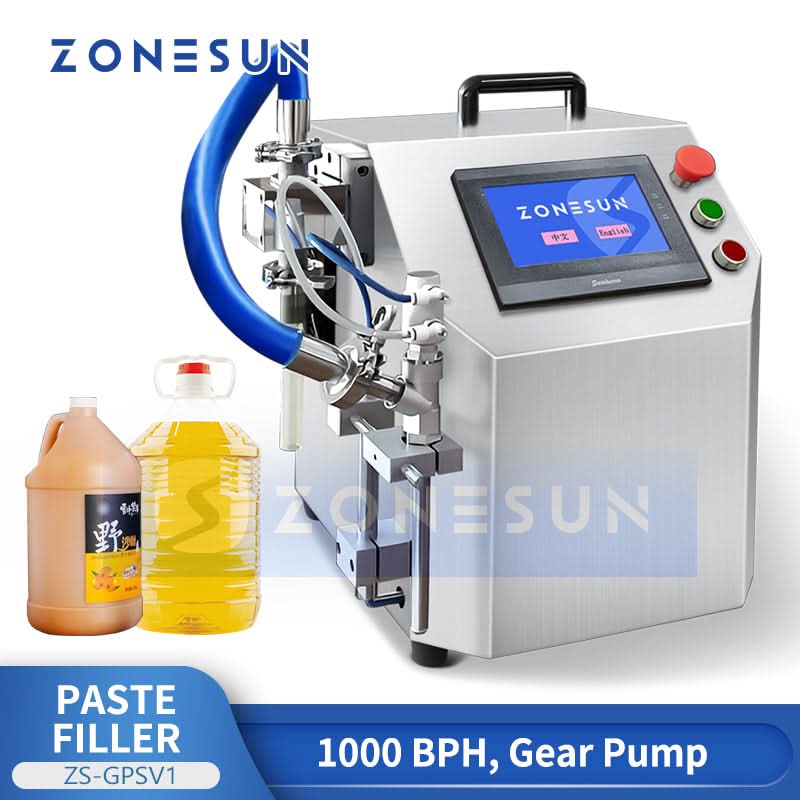

Zonesun ZS-GPSV1 Semi-automatic Servo Gear pump Liquid Paste Quantitative Filling Machine
This semi-automatic filling machine features a handheld nozzle designed like a fuel dispenser, enabling smooth, precise, and user-friendly operation. It is equipped with a servo-driven gear pump, ideal for filling a wide range of viscous and fluid materials—including creams, lotions, sauces, oils, and other flowable, particle-free liquids. Designed to handle both thick pastes and runny liquids, the machine supports large filling volumes and ensures consistent, accurate output. Its compact design saves space, making it a practical solution for small to medium-scale production in food, cosmetic, chemical, and household product industries. Note: Not suitable for materials containing solid particles.
PARAMETER
Model: ZS-GPSV1
Machine voltage: 110/220V 50-60HZ
Filling range: 10-200ml / 200ml-3L / 3L-10L / 10-25L
Filling pump: Gear Pump
Filling nozzle: Regular Fixed Nozzle & Handheld Nozzle
Suitable bottle size: Customizable
Filling accuracy: ±1%
Working capacity: 900-1000 BPH (based on 300ml)
Machine casing: SUS304
Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
NOTE：Note: 110V machine needs to be connected to a transformer
CONTROL PANEL
Touch screen control panel simplifies machine operation, parameters will be more intuitive
FILLING PUMP
Equipped with servo gear pump, quantitative filling simplifies machine operation
FILLING NOZZLES
Optional handheld filling nozzles for easier and flexible operation
This semi-automatic filling machine features a handheld nozzle designed like a fuel dispenser, enabling smooth, precise, and user-friendly operation. It is equipped with a servo-driven gear pump, ideal for filling a wide range of viscous and fluid materials—including creams, lotions, sauces, oils, and other flowable, particle-free liquids. Designed to handle both thick pastes and runny liquids, the machine supports large filling volumes and ensures consistent, accurate output. Its compact design saves space, making it a practical solution for small to medium-scale production in food, cosmetic, chemical, and household product industries. Note: Not suitable for materials containing solid particles.
