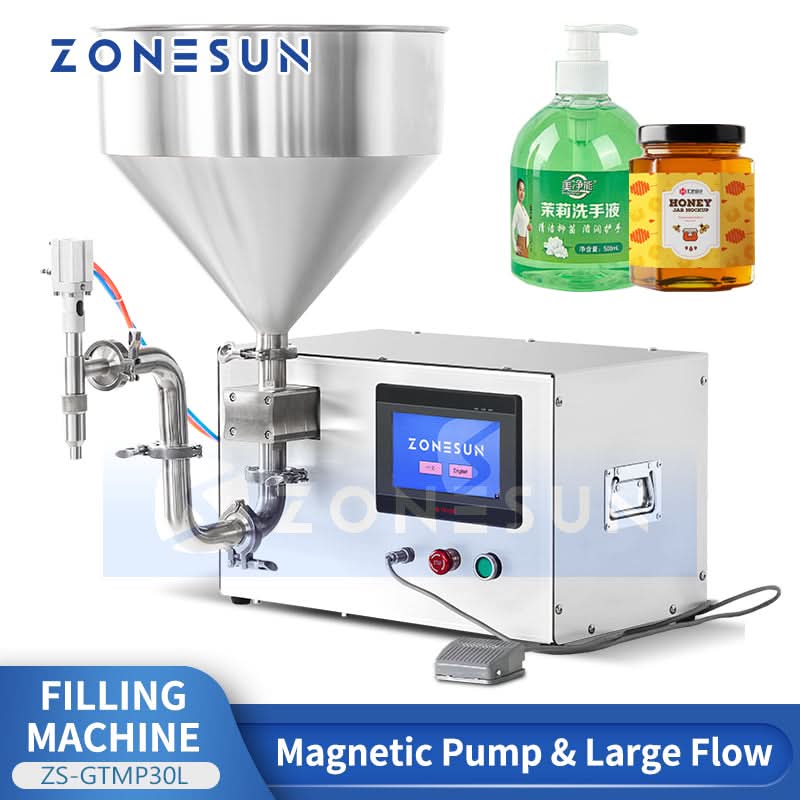

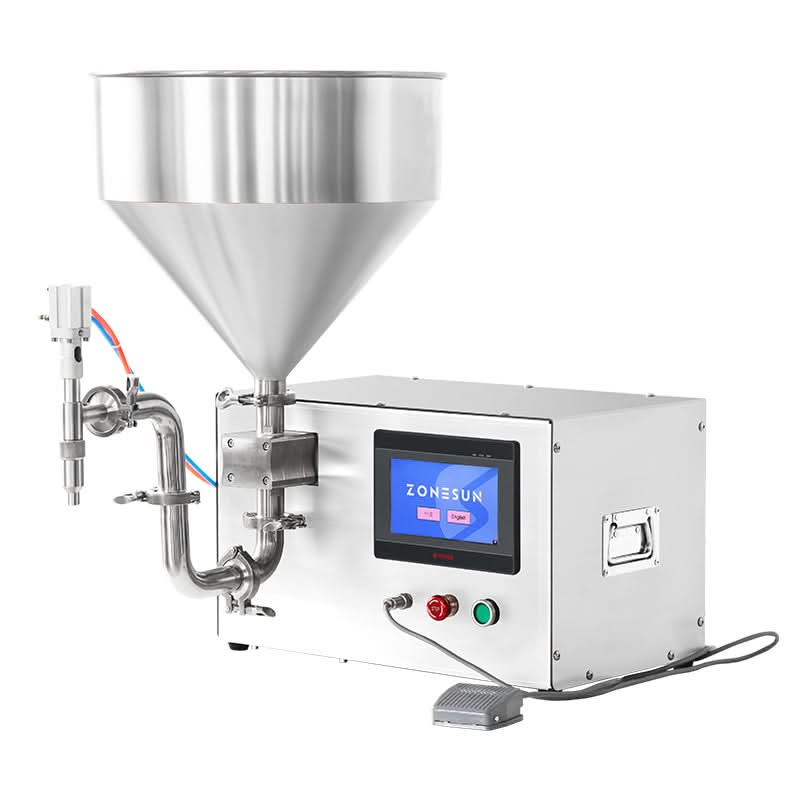

ZONESUN ZS-GTMP30L Magnetic Pump Liquid Filling Machine with 30L Hopper
DESCRIPTION
The ZS-GTMP30L magnetic pump filling machine offers a powerful, flexible solution for handling a wide range of liquid viscosities. Equipped with a 30L hopper and servo-driven pump, it ensures precise volumetric filling with minimal waste. Whether you're bottling honey, sauces, or chemicals, this unit delivers consistent performance with adjustable calibration for hassle-free operation.
Parameter
Machine Model ZS-GTMP30L
Machine Voltage 110/220V, 50–60Hz, 800W

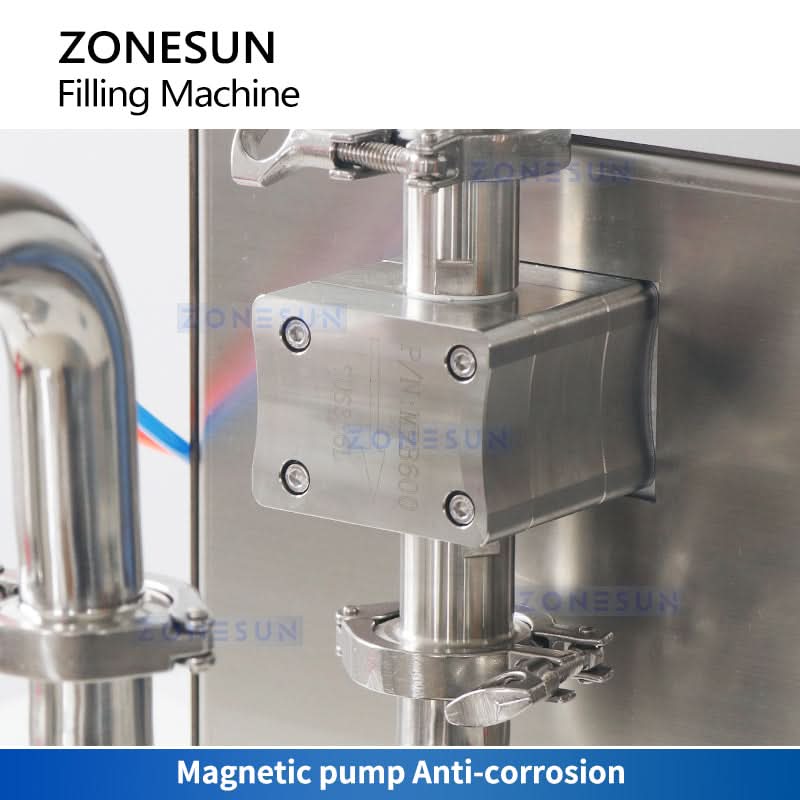

Filling Pump Type Servo motor-driven magnetic pump
Liquid Viscosity Range 0.2–12,000 cps
Max Flow Rate 45 L/min
Recommended Filling Range 10 ml – 10 L
Filling Accuracy ±0.2%–1%
Working Speed 900–1200 BPH (based on 400 ml honey)
Filling Nozzle Size OD: 12 mm, ID: 10 mm, anti-dripping design
Hopper Capacity 30 L
Machine Size Approx. 51 × 60 × 70 cm
Machine Weight Approx. 28.5 kg
