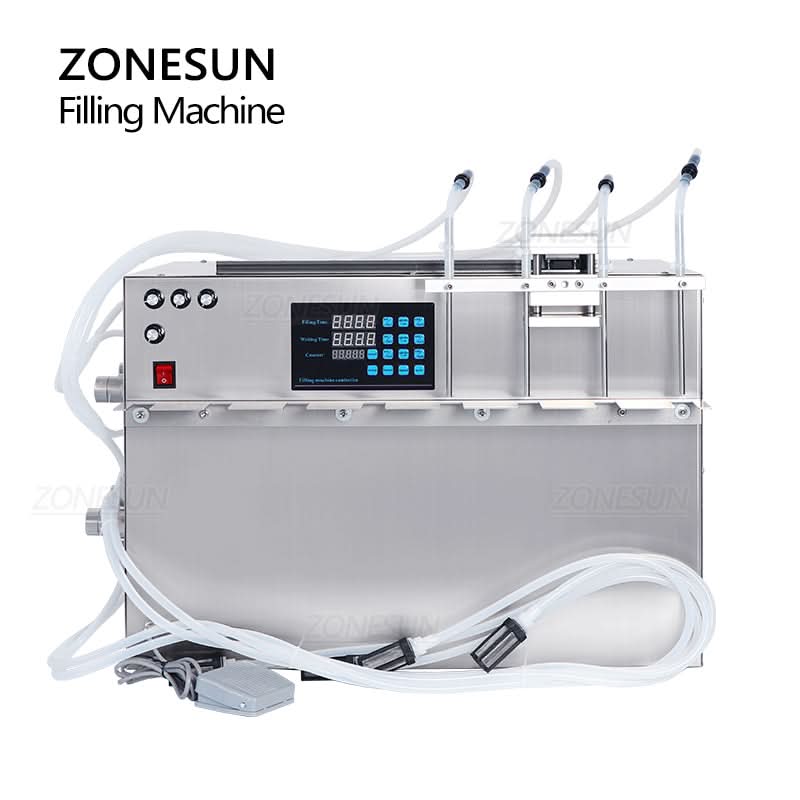

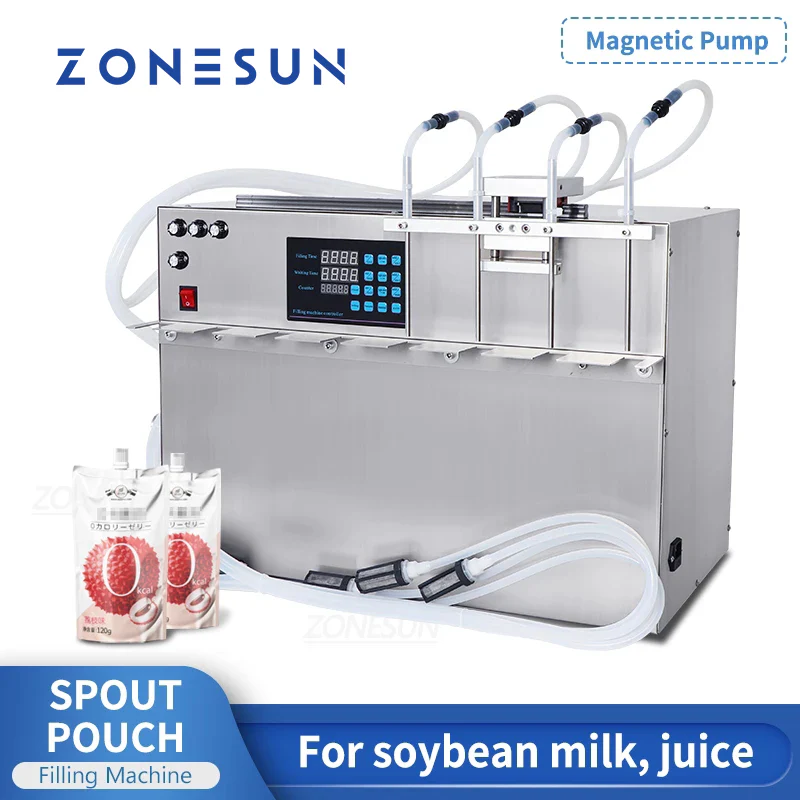

Zonesun ZS-MPSP4 4 Nozzles Magnetic Pump Spout Pouch Liquid Filling Machine
Application
This machine is suitable for filling low-viscosity liquid that's packed by spout pouch, such as soybean milk, juice. The number of filling nozzles can be customized as needed.
PARAMETER
Machine Model: ZS-MPSP4
Voltage: 220V/110V 50-60Hz
Power: 350W
Machine Pump: 316 Stainless Steel Magnetic Pump
Recommended Filling Range: 30-300ml
Max Flow Rate: 6L/min*4 (based on water)
Suitable Pouch's Nozzle: OD 10mm (Can be customized)
Size of Card Slot: 10.5mm/13mm (Standard, can be customized)
Filling Nozzle Diameter: OD 6mm
Machine Size: About 655*350*465mm
Machine Weight: About 24kg
Package Size: About 770*480*600mm
Package Weight: About 40KG

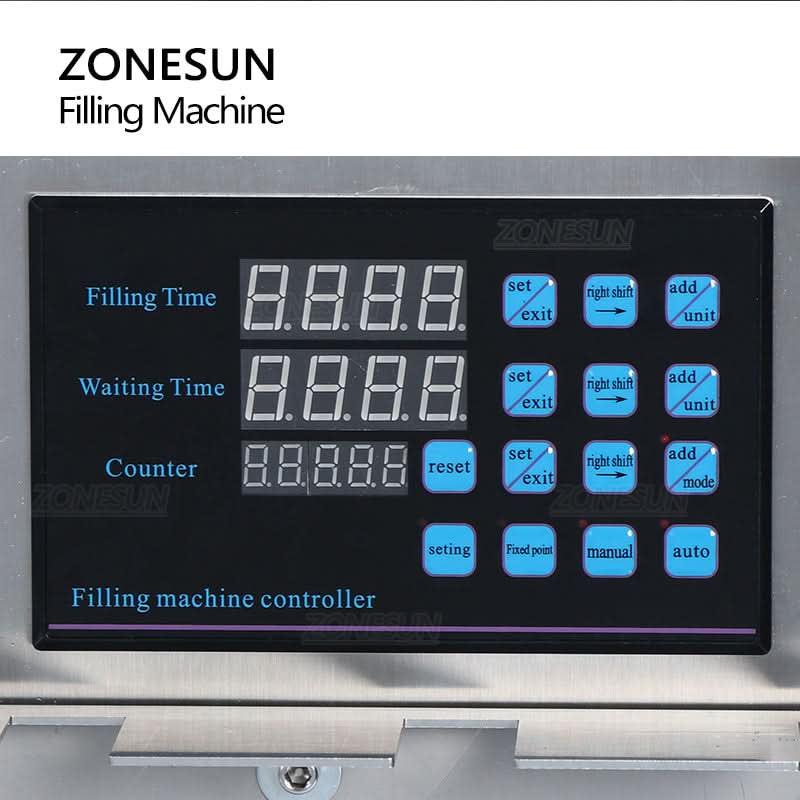

CONTROL PANEL：Through digital panel, it's easy to set filling speed and filling
time.The number of illed pouches willshow on the panel. Visual and accurate.

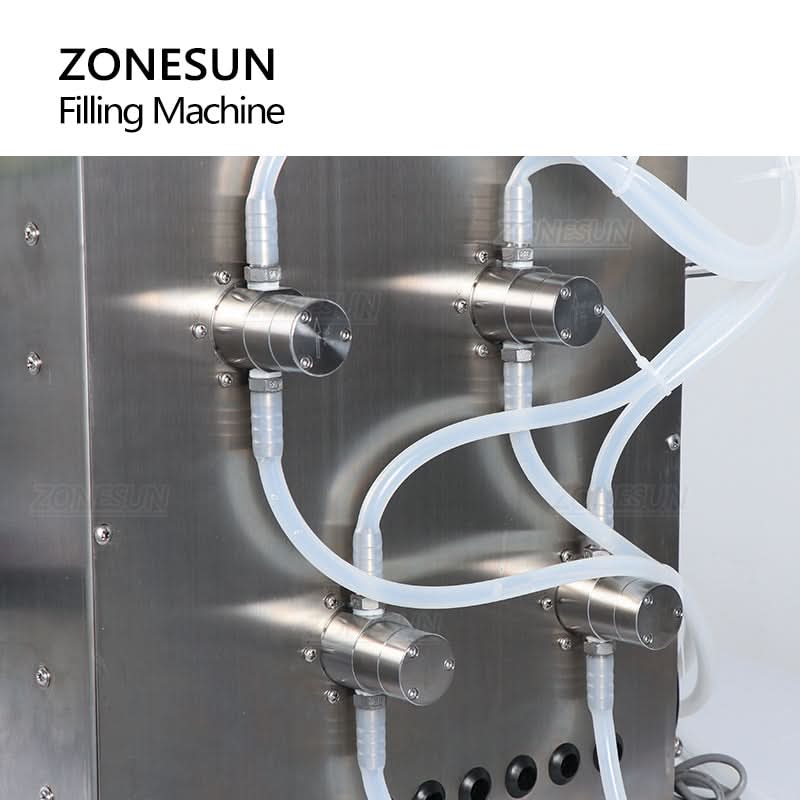

MAGNETIC PUMPS：Made of 316 stainless steel, the magnetic pumps have the advantage of high temperature resistance and anti-corrosion.It is suitable for filling foamy liquid like soybean milk.

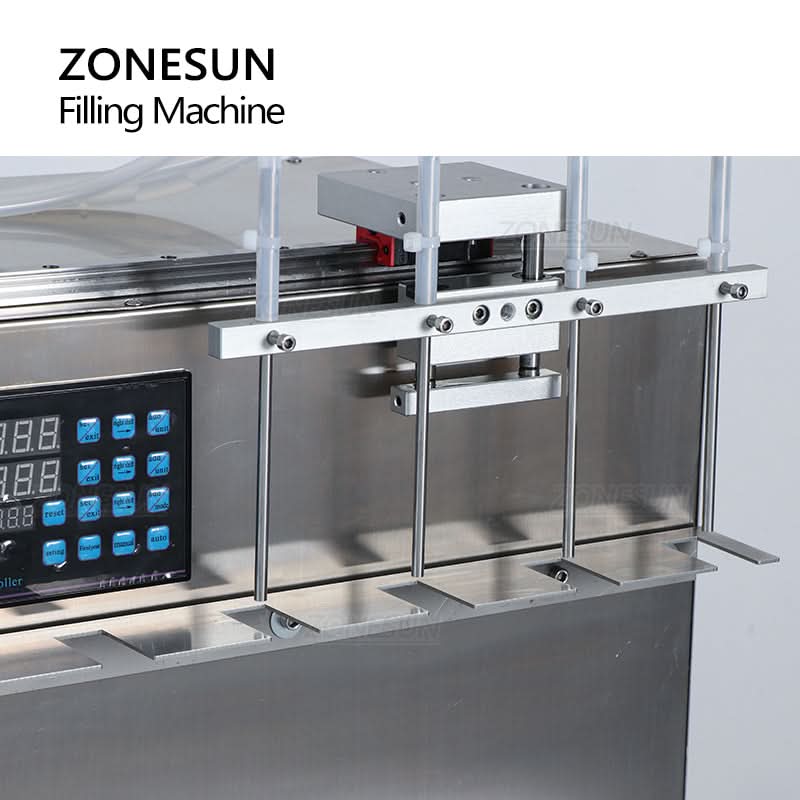

FILLING NOZZLE: With anti-dripping function, it can fill liquid accurately. The position of nozzles can be adjusted as needed. The card slot is specially designed for fixing spout pouch during filling, saving labor cost.
OPERATION MODE: This machine has automatic mode and manual mode, which you can choose as needed. In manual mode, you can control the machine to work by pressing pedal switch.
