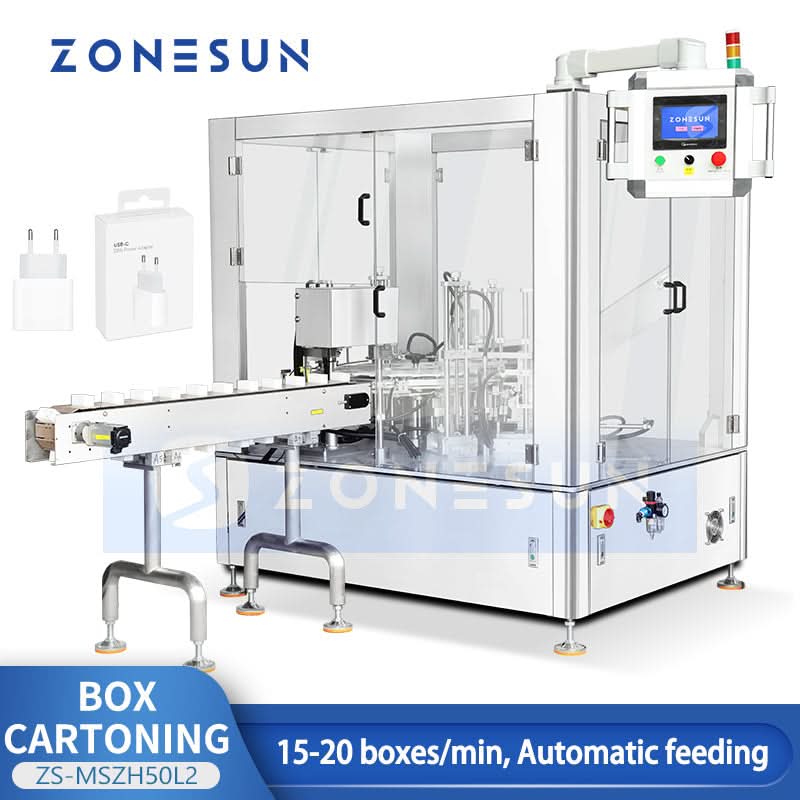

Zonesun ZS-MSZH50L2 Automatic Vertical Cartoning Machine for Small Products Box Packing Solution
Description

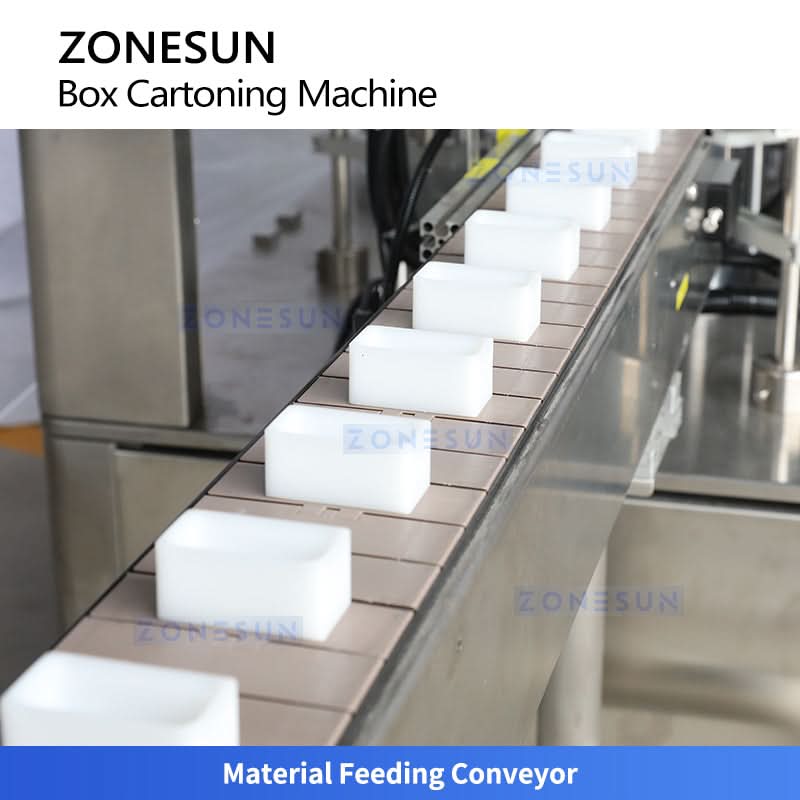

The ZONESUN ZS-MSZH50L2 is an automatic vertical box cartoning machine designed for packing small items such as power plugs, chargers, and similar products into paper cartons. Operating at 15–20 boxes per minute, it features an intermittent motion system with a rotary star wheel structure that divides the process into four stations: carton feeding, bottom folding, product loading, and top folding. With its PLC touchscreen control, feeding manipulator, and synchronized conveyor system, it ensures precise alignment, stable operation, and efficient packaging. Ideal for reverse tuck, lock bottom, and crash bottom cartons, this machine streamlines your packaging workflow for medium to large-scale production lines.
Parameter
- Model: ZS-MSZH50L2
- Power Consumption: 1.5 kW
- Voltage: 220 V
- Working Speed: 15–20 boxes/min
- Applicable Box Height: 40–250 mm
- Applicable Box Width: 30–100 mm
- Applicable Box Thickness: 30–100 mm
- Machine Dimensions (L×W×H): 1100 × 1550 × 1900 mm
- Machine Weight: 500 kg
Description
The ZONESUN ZS-MSZH50L2 is an automatic vertical box cartoning machine designed for packing small items such as power plugs, chargers, and similar products into paper cartons. Operating at 15–20 boxes per minute, it features an intermittent motion system with a rotary star wheel structure that divides the process into four stations: carton feeding, bottom folding, product loading, and top folding. With its PLC touchscreen control, feeding manipulator, and synchronized conveyor system, it ensures precise alignment, stable operation, and efficient packaging. Ideal for reverse tuck, lock bottom, and crash bottom cartons, this machine streamlines your packaging workflow for medium to large-scale production lines.
Parameter
- Model: ZS-MSZH50L2
- Power Consumption: 1.5 kW
- Voltage: 220 V
- Working Speed: 15–20 boxes/min
- Applicable Box Height: 40–250 mm
- Applicable Box Width: 30–100 mm
- Applicable Box Thickness: 30–100 mm
- Machine Dimensions (L×W×H): 1100 × 1550 × 1900 mm
- Machine Weight: 500 kg
Original: $21,000.00
-70%$21,000.00
$6,300.00Description
Description
The ZONESUN ZS-MSZH50L2 is an automatic vertical box cartoning machine designed for packing small items such as power plugs, chargers, and similar products into paper cartons. Operating at 15–20 boxes per minute, it features an intermittent motion system with a rotary star wheel structure that divides the process into four stations: carton feeding, bottom folding, product loading, and top folding. With its PLC touchscreen control, feeding manipulator, and synchronized conveyor system, it ensures precise alignment, stable operation, and efficient packaging. Ideal for reverse tuck, lock bottom, and crash bottom cartons, this machine streamlines your packaging workflow for medium to large-scale production lines.
Parameter
- Model: ZS-MSZH50L2
- Power Consumption: 1.5 kW
- Voltage: 220 V
- Working Speed: 15–20 boxes/min
- Applicable Box Height: 40–250 mm
- Applicable Box Width: 30–100 mm
- Applicable Box Thickness: 30–100 mm
- Machine Dimensions (L×W×H): 1100 × 1550 × 1900 mm
- Machine Weight: 500 kg
