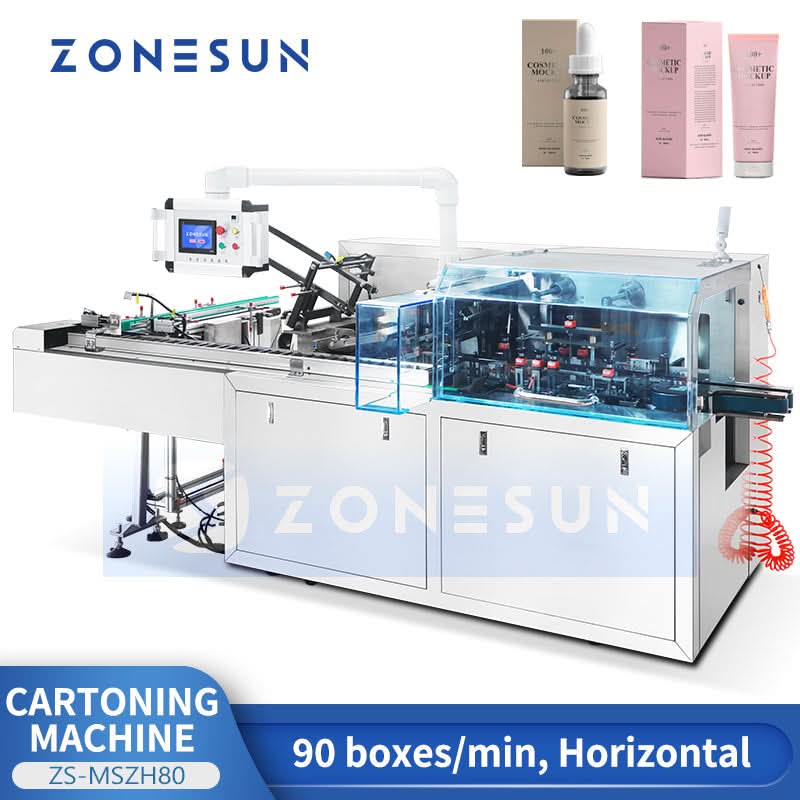

The ZONESUN packaging machine is a high-speed automatic cartoning machine and horizontal cartoner designed for skincare, cosmetics, and perfume. This cosmetic box machine handles box packing, feeding, insertion, and sealing automatically—ideal as a face cream box packer or perfume cartoning machine. It supports up to 90 boxes per minute. With a reliable automated packaging system, this piece of packaging machinery offers overload protection and emergency stop for operator safety. A strong choice for any industrial packing equipment need.

Parameter

• Forming Machine Model: ZS-MSZH80
• Power Supply: 220V–380V, 50Hz
• Main Motor Power: 1.5 kW
• Cartoning Machine Speed: 60-90 boxes/minute
• Carton Material Requirements: 250–400 g/m² (must have a flat surface for suction)
• Carton Size: L (50–180) × W (30–90) × H (20–60) mm
• Compressed Air Supply: ≥0.6 MPa, 20 m³/h
• Machine Size: 3500 × 2000 × 1750 mm(L×W×H)
• Machine Weight: 1300 kg

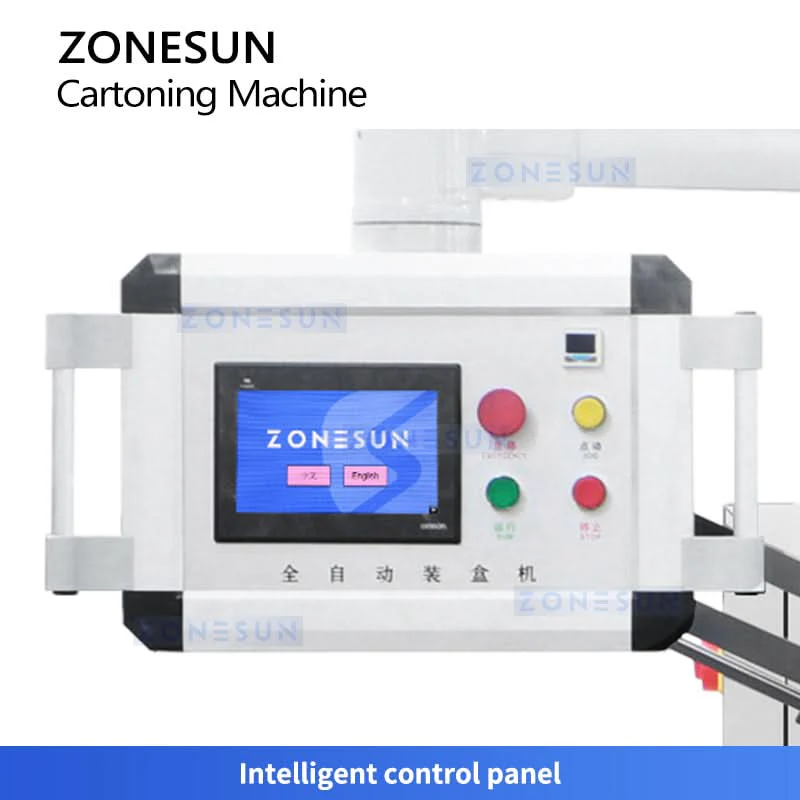

CONTROL PANEL
Equipped with PLC, touchscreen, and asynchronous motor for user-friendly, highly automated operation.

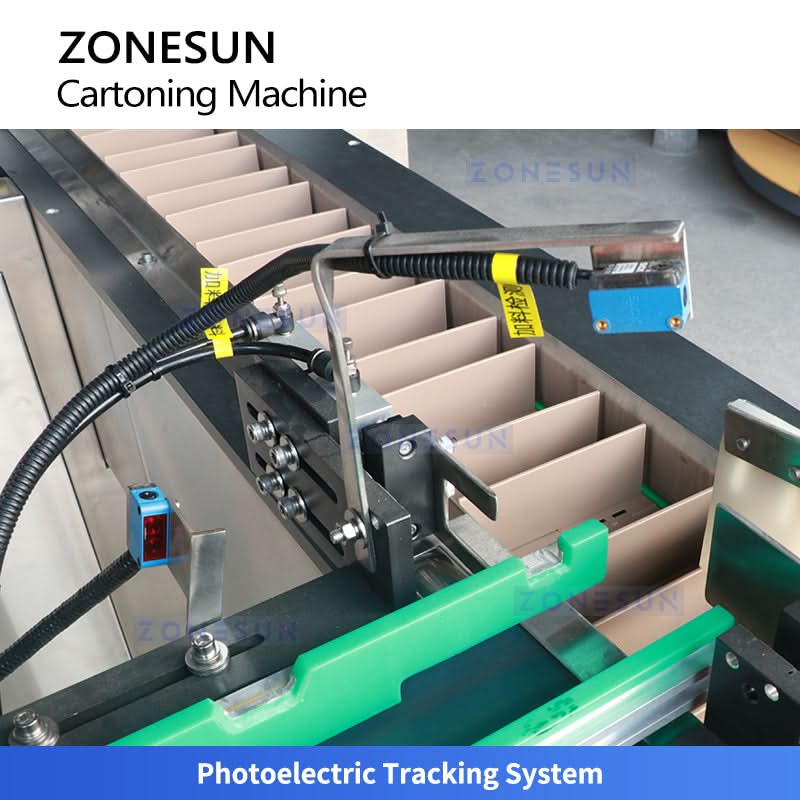

PHOTOELECTRIC TRACKING
No product, no box picking — efficiently saves packaging materials.

FIXED SLOT DESIGN
Securely holds products in place during cartoning, ensuring accurate insertion and preventing shifting or damage.

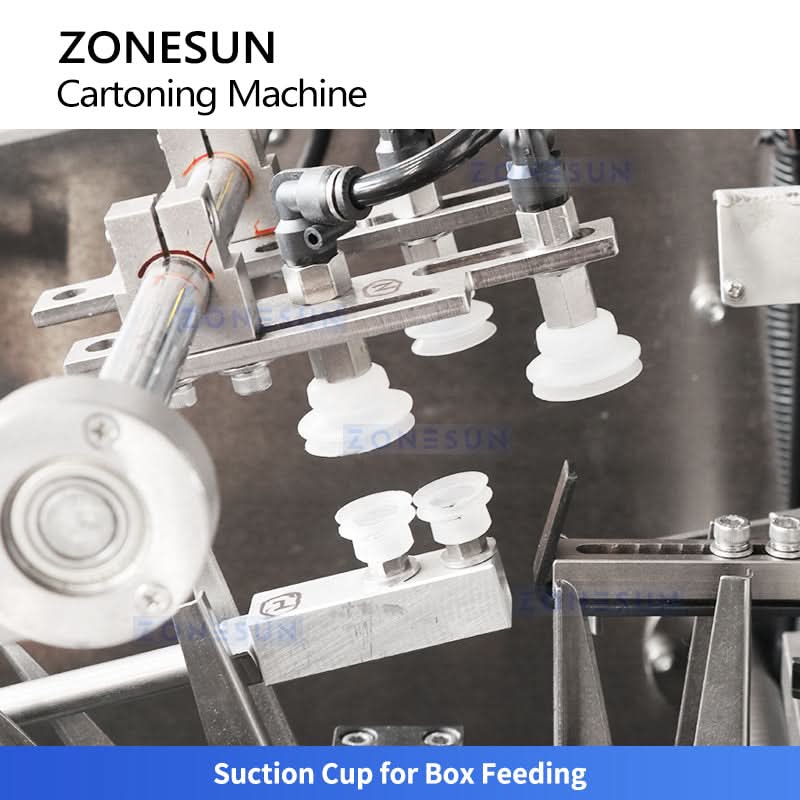

SECTION CUP FOR BOX FEEDING
Uses suction to accurately pick and feed paper boxes into the system, ensuring stable and efficient box placement without deformation or misfeeds.

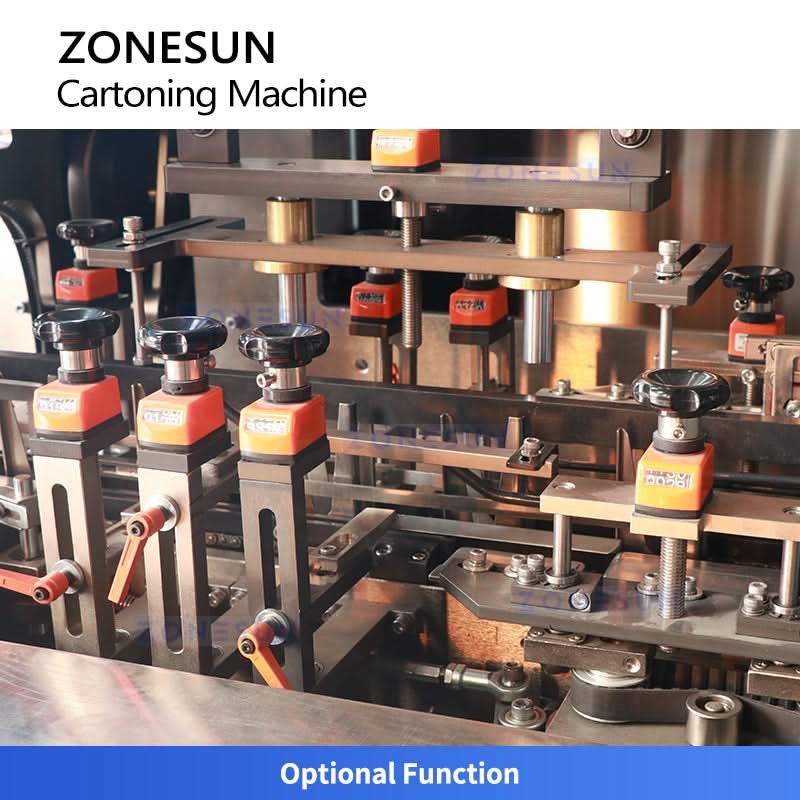

OPTIONAL FUNCTION
Optional hot melt glue sealing for enhanced box integrity.
