Zonesun ZS-TB822T Color Mark Detection Front and Back Labeling Machine

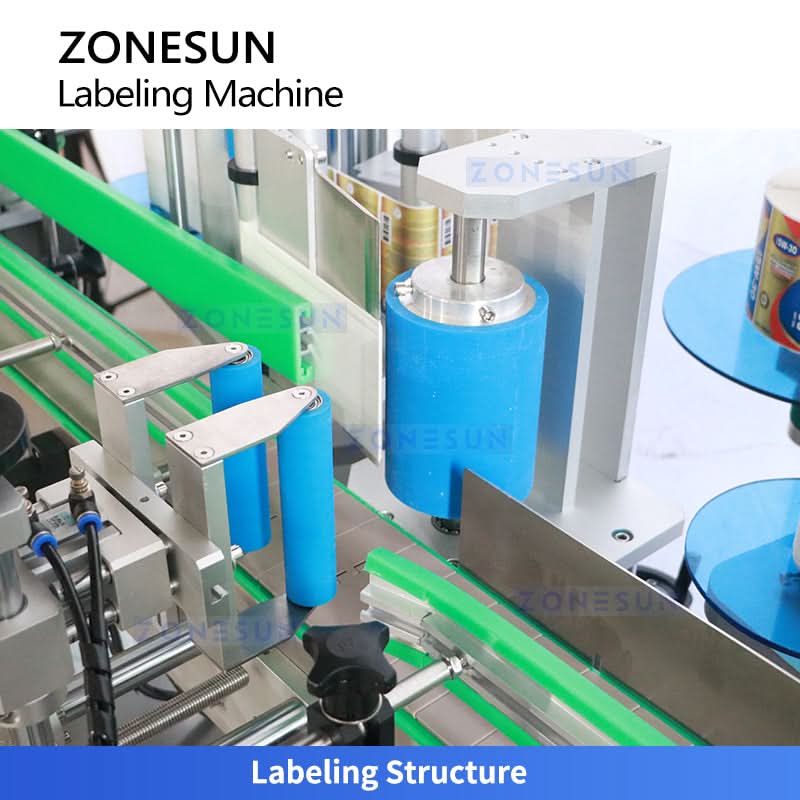

Introducing our advanced Front and Back Labeling Machine, engineered for unparalleled accuracy and efficiency. Featuring dual labeling stations, this machine ensures perfect alignment every time. After the first label is applied, a full-spectrum electric eye precisely detects its position, guaranteeing consistent spacing when the second label is applied. Achieve an impressive output of up to 1200 bottles per hour (BPH), maximizing your production capacity.
PARAMETER
Machine Model: ZS-TB822T
Voltage: 220V/110V 50-60HZ
Power: 4500 W
Labeling Speed: About 20-30 pcs/min(depending on product and label size)
Labeling Accuracy: ±1 mm
Suitable Bottle Size: Diameter: Φ25-Φ100 mm* Height: 25-300 mm
Label Size: Width(20-290 mm)* Height(20-160 mm)
Label Roll Inner Diameter: Φ76 mm
Label Roll Outer Diameter: ≤300 mm
Machine Size: About 2844*987*1400 mm/About 112*38.9*55.1 inch
Package Size: About 2750*1180*1630 mm
Package Weight: About 550 kg
Touchscreen panel makes it easier to set technical parameters. The language of panel can be customized.
Suitable for single-side, double-side or wrap around labeling on round bottles.

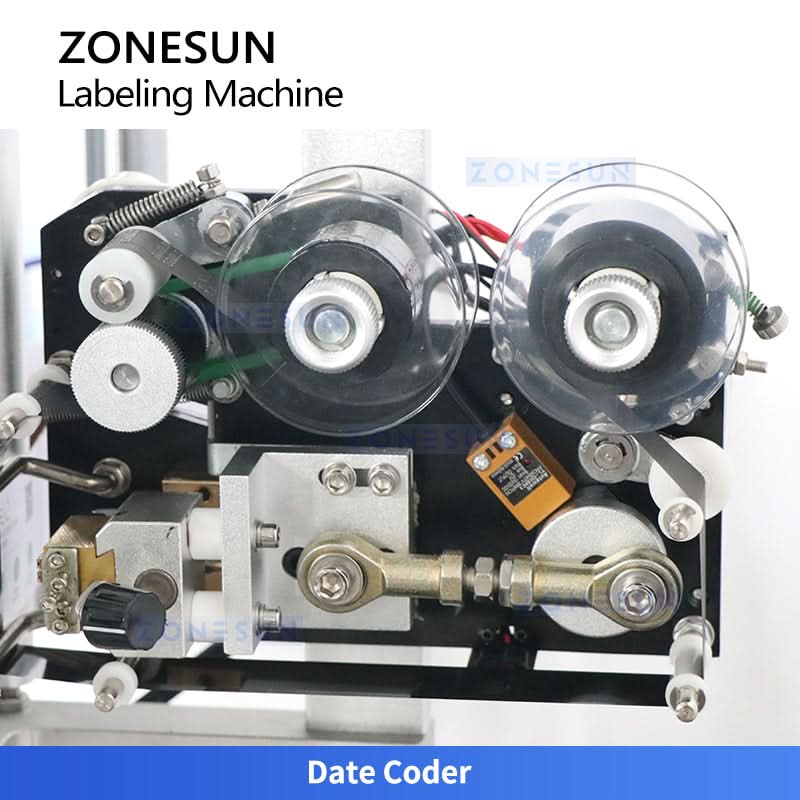

This machine can be equipped with date coder to print date or batch. Please contact us if you need it.

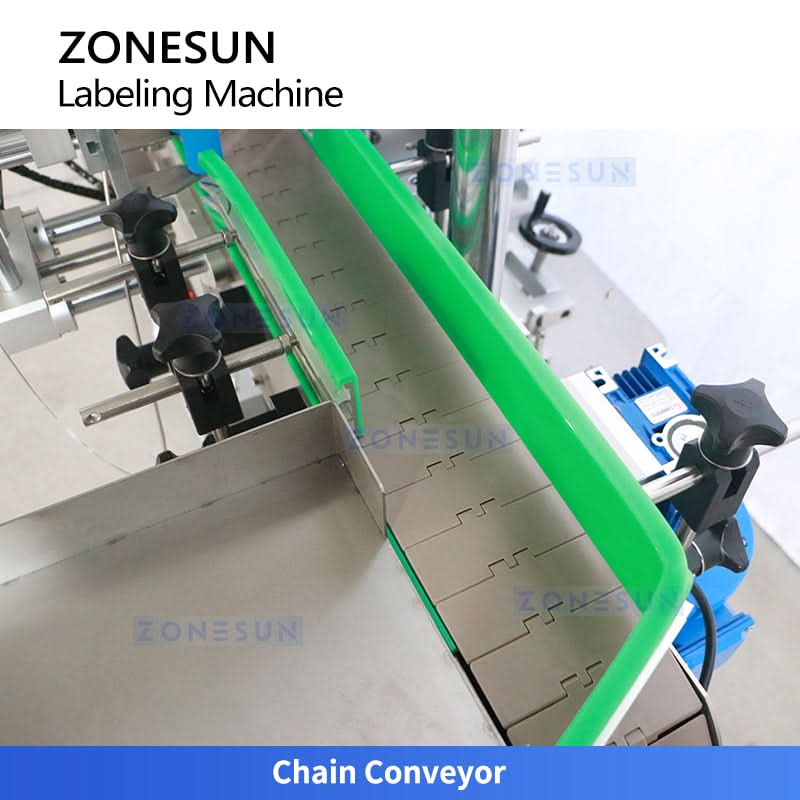

The length and width of conveyor can be customized as your production need.
Can detect labels and control it to output labels accurately. It can be customized for transparent labels.
Introducing our advanced Front and Back Labeling Machine, engineered for unparalleled accuracy and efficiency. Featuring dual labeling stations, this machine ensures perfect alignment every time. After the first label is applied, a full-spectrum electric eye precisely detects its position, guaranteeing consistent spacing when the second label is applied. Achieve an impressive output of up to 1200 bottles per hour (BPH), maximizing your production capacity.
PARAMETER
Machine Model: ZS-TB822T
Voltage: 220V/110V 50-60HZ
Power: 4500 W
Labeling Speed: About 20-30 pcs/min(depending on product and label size)
Labeling Accuracy: ±1 mm
Suitable Bottle Size: Diameter: Φ25-Φ100 mm* Height: 25-300 mm
Label Size: Width(20-290 mm)* Height(20-160 mm)
Label Roll Inner Diameter: Φ76 mm
Label Roll Outer Diameter: ≤300 mm
Machine Size: About 2844*987*1400 mm/About 112*38.9*55.1 inch
Package Size: About 2750*1180*1630 mm
Package Weight: About 550 kg
Touchscreen panel makes it easier to set technical parameters. The language of panel can be customized.
Suitable for single-side, double-side or wrap around labeling on round bottles.
This machine can be equipped with date coder to print date or batch. Please contact us if you need it.
The length and width of conveyor can be customized as your production need.
Can detect labels and control it to output labels accurately. It can be customized for transparent labels.
Original: $10,199.00
-70%$10,199.00
$3,059.70Description
Introducing our advanced Front and Back Labeling Machine, engineered for unparalleled accuracy and efficiency. Featuring dual labeling stations, this machine ensures perfect alignment every time. After the first label is applied, a full-spectrum electric eye precisely detects its position, guaranteeing consistent spacing when the second label is applied. Achieve an impressive output of up to 1200 bottles per hour (BPH), maximizing your production capacity.
PARAMETER
Machine Model: ZS-TB822T
Voltage: 220V/110V 50-60HZ
Power: 4500 W
Labeling Speed: About 20-30 pcs/min(depending on product and label size)
Labeling Accuracy: ±1 mm
Suitable Bottle Size: Diameter: Φ25-Φ100 mm* Height: 25-300 mm
Label Size: Width(20-290 mm)* Height(20-160 mm)
Label Roll Inner Diameter: Φ76 mm
Label Roll Outer Diameter: ≤300 mm
Machine Size: About 2844*987*1400 mm/About 112*38.9*55.1 inch
Package Size: About 2750*1180*1630 mm
Package Weight: About 550 kg
Touchscreen panel makes it easier to set technical parameters. The language of panel can be customized.
Suitable for single-side, double-side or wrap around labeling on round bottles.
This machine can be equipped with date coder to print date or batch. Please contact us if you need it.
The length and width of conveyor can be customized as your production need.
Can detect labels and control it to output labels accurately. It can be customized for transparent labels.
