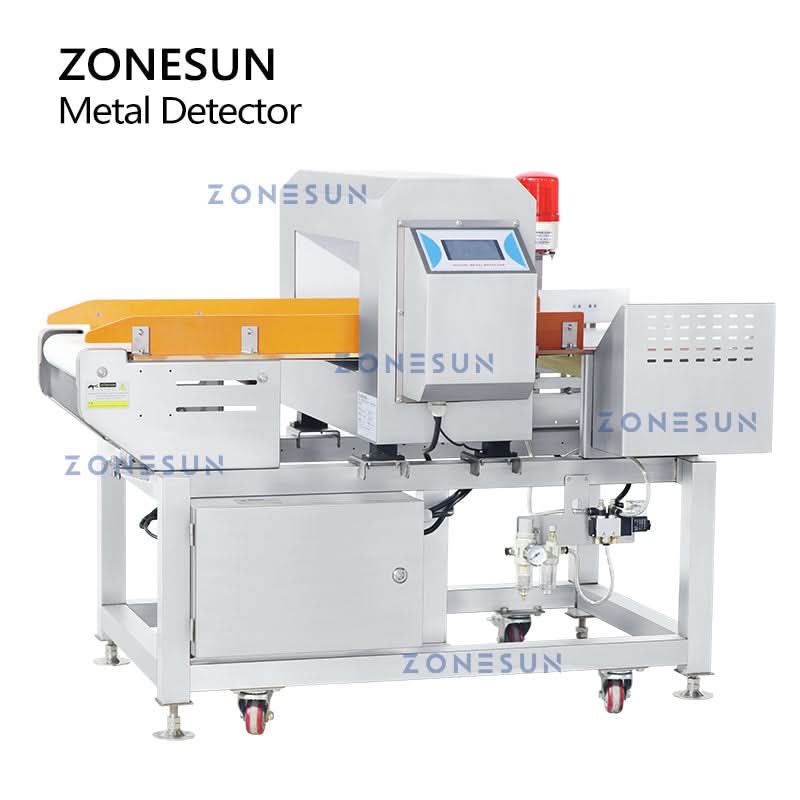

ZONESUN ZS-MD1 Industrial Conveyor Belt Metal Detector for Food & Cosmetics
The ZS-MD1 Metal Detection Conveyor is designed to identify and reject trace metal contaminants in production lines for food, cosmetics, pharmaceuticals, and more. Its high-sensitivity system detects both ferrous and non-ferrous metals—even if embedded in packaging—and activates an automatic rejection unit to remove impurities instantly. This protects machinery, preserves product integrity, and minimizes operational downtime, making it ideal for quality control and cost-effective manufacturing.
Parameter Specification
Model ZS-MD1
Voltage 220V, 50–60Hz
Power 90W
Conveyor Width 400mm (customizable)
Maximum Load Capacity 15kg
Detection Height 200mm (customizable)
Applicable Metal Types - Ferrous (φ ≥ 1.2mm) <br> - Non-ferrous (φ ≥ 1.8mm) <br> - Stainless steel (φ ≥ 2.3mm)
Conveyor Speed 25–30 m/min
Machine Weight Approx. 220kg
Machine Dimensions 133 × 72 × 100cm
PRODUCT DETAILS
DETECTING
It can detect magnetic and non-magnetic metal impurities, even if the metal is sealed in the product.
REJECTION
The system can use the alarm signal to drive an automatic rejection device, so as to exclude metal impurities from the production line.
CONTROL PANEL
PLC control, color display touchscreen, records traceable.
It works with an extra air compressor that is sold separately.
