ZONESUN ZS-VGPJ1 Pneumatic Psaste Scrub Cream Filling Machine | Hydraulic Press
Description

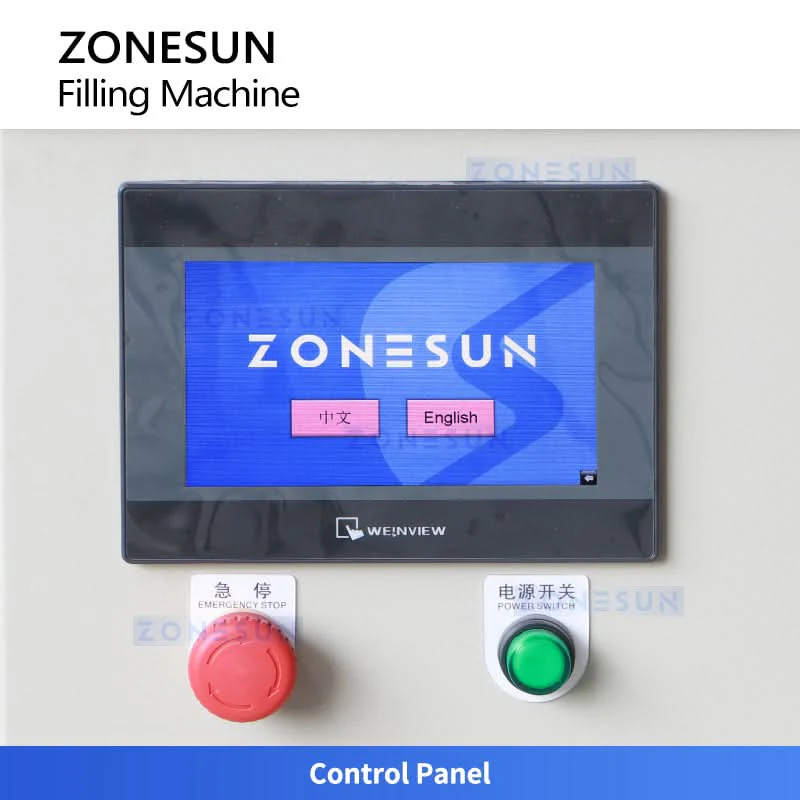

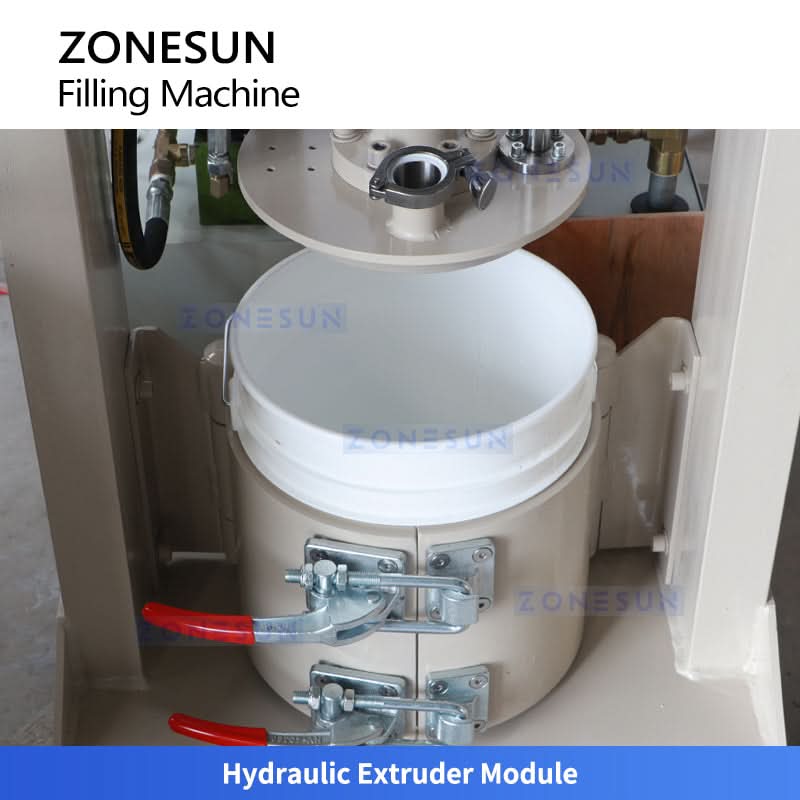

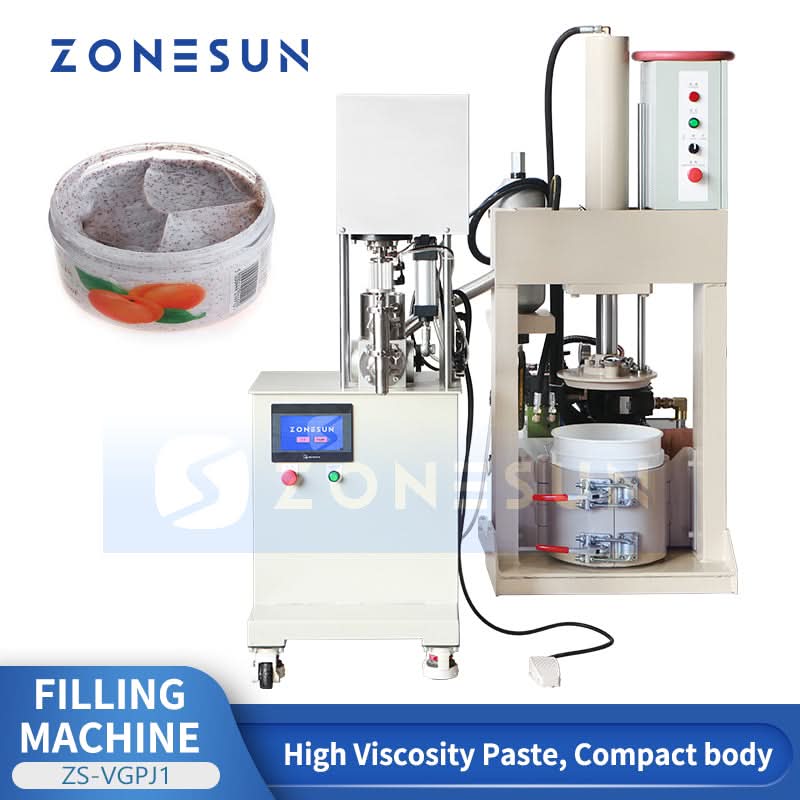

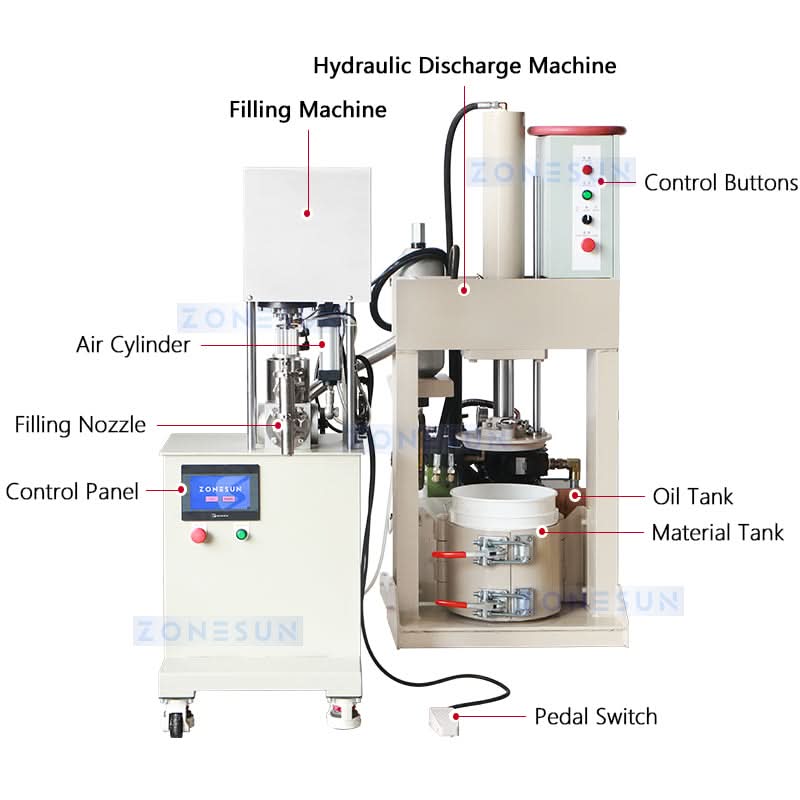

The ZONESUN ZS-VGPJ1 is a semi-automatic filling machine designed for high-viscosity materials such as pastes, scrubs, and creams. Its PLC controller and touchscreen interface enable precise operation, while the servo-driven metering system ensures accurate dosing. Equipped with an intelligent hydraulic press, the machine adapts pressure automatically to maintain stable flow during filling—making it ideal for chemical, pharmaceutical, and food applications.
|
Specification |
Details |
|
Machine Model |
ZS-VGT1 |
|
Power Supply |
220V/50HZ |
|
Air Supply |
0.5–0.8 MPa |
|
Air Consume |
<0.3 m³/min |
|
Filling Volume |
Max 350 ml (Customizable) |
|
Volume Precision |
≤±0.5% |
|
Working Speed |
15–45 pcs/min |
|
Bottle Diameters |
φ30–50 mm (Customizable) |
|
Machine Size |
650 × 600 × 1400 mm (L×W×H) |
|
Machine Weight |
150 kg |
|
Specification |
Details |
|
Machine Model |
ZS-PJ15T |
|
Power Supply |
380V/220V |
|
Extruding Pressure |
15T (45T/60T available) |
|
Material Tank Size |
20L (φ284 mm × H880 mm) |
|
Discharging Outlet Size |
DN38 |
|
Oil Tank Capacity |
40L |
|
Machine Size |
About 800 × 600 × 1380 mm (L×W×H) |
|
Machine Weight |
About 360 kg |
|
Package Size |
About 950 × 720 × 1640 mm |
|
Package Weight |
About 410 kg |
Description
The ZONESUN ZS-VGPJ1 is a semi-automatic filling machine designed for high-viscosity materials such as pastes, scrubs, and creams. Its PLC controller and touchscreen interface enable precise operation, while the servo-driven metering system ensures accurate dosing. Equipped with an intelligent hydraulic press, the machine adapts pressure automatically to maintain stable flow during filling—making it ideal for chemical, pharmaceutical, and food applications.
|
Specification |
Details |
|
Machine Model |
ZS-VGT1 |
|
Power Supply |
220V/50HZ |
|
Air Supply |
0.5–0.8 MPa |
|
Air Consume |
<0.3 m³/min |
|
Filling Volume |
Max 350 ml (Customizable) |
|
Volume Precision |
≤±0.5% |
|
Working Speed |
15–45 pcs/min |
|
Bottle Diameters |
φ30–50 mm (Customizable) |
|
Machine Size |
650 × 600 × 1400 mm (L×W×H) |
|
Machine Weight |
150 kg |
|
Specification |
Details |
|
Machine Model |
ZS-PJ15T |
|
Power Supply |
380V/220V |
|
Extruding Pressure |
15T (45T/60T available) |
|
Material Tank Size |
20L (φ284 mm × H880 mm) |
|
Discharging Outlet Size |
DN38 |
|
Oil Tank Capacity |
40L |
|
Machine Size |
About 800 × 600 × 1380 mm (L×W×H) |
|
Machine Weight |
About 360 kg |
|
Package Size |
About 950 × 720 × 1640 mm |
|
Package Weight |
About 410 kg |
Original: $22,549.00
-70%$22,549.00
$6,764.70Description
